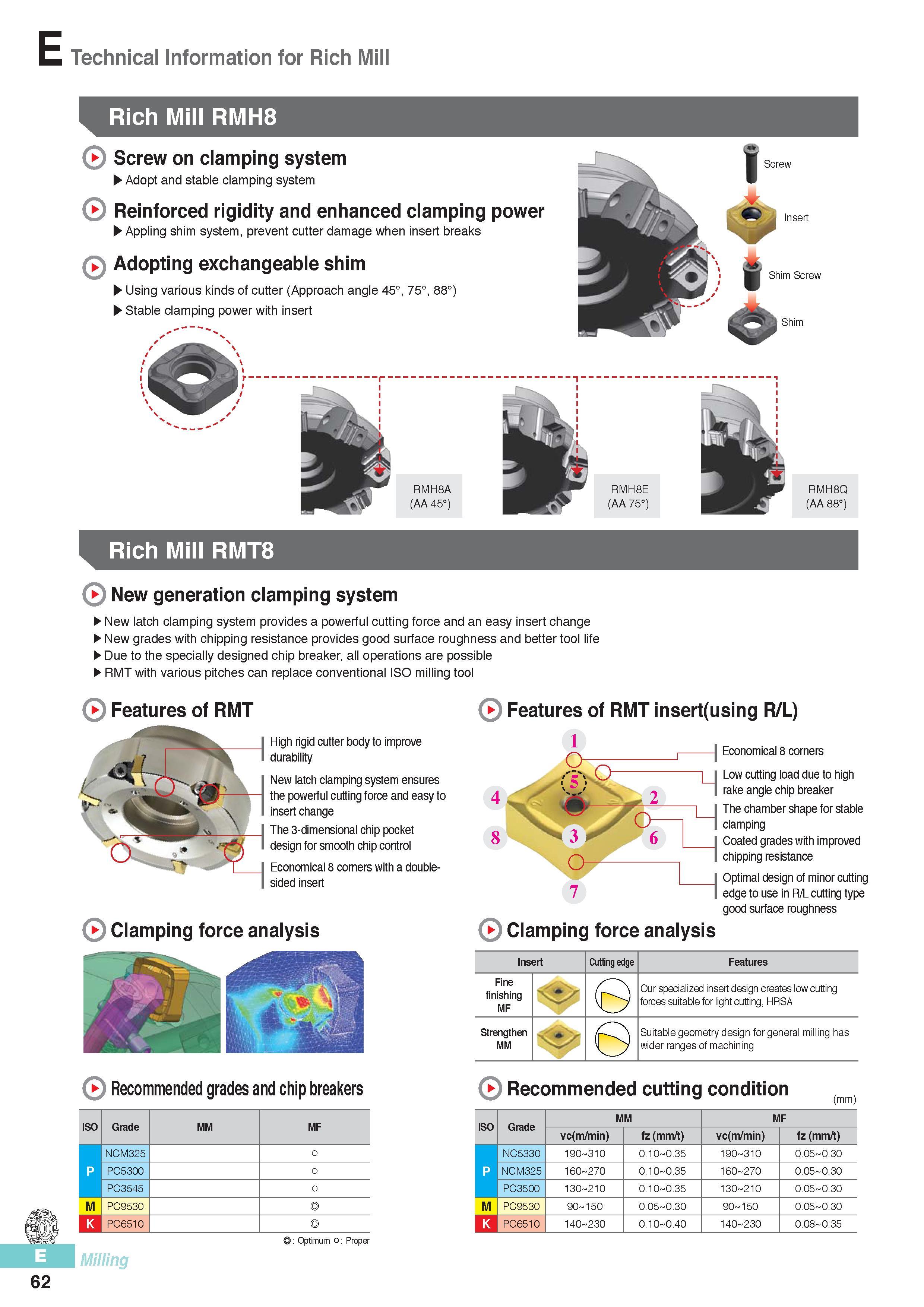

Indexable milling tools Rich Mill RMT8 New latch clamping system Korloy provides a powerful cutting force and an easy insert change New grades with chipping resistance provides good surface roughness and better tool life Due to the specially designed chip breaker, all operations are possible RMT with various pitches can replace conventional ISO milling tool Features of RMT High rigid cutter body to improve durability New latch clamping system ensures the powerful cutting force and easy to insert change The 3-dimensional chip pocket design for smooth chip control Economical 8 corners with a doublesided insert Clamping force analysis Recommended grades and chip breakers ISO Grade MM MF NCM325 c P PC5300 c PC3545 c M PC9530 K PC6510 Optimum o Proper Features of RMT insert(using R/L) Clamping force analysis Economical 8 corners Low cutting load due to high rake angle chip breaker HThe chamber shape for stable clamping Coated grades with improved chipping resistance Optimal design of minor cutting edge to use in R/L cutting type good surface roughness Insert Cutting edge Features Fine finishing MF ( 8 Our specialized insert design creates low cutting forces suitable for light cutting, HRSA Strengthen MM e Suitable geometry design for general milling has wider ranges of machining Recommended cutting condition (mm) ISO Grade MM MF vc(m/min) fz (mm/t) vc(m/min) fz (mm/t) I NC5330 190 310 0.10 0.35 190 310 0.05 0.30 NCM325 160 270 0.10 0.35 160 270 0.05 0.30 PC3500 130 210 0.10 0.35 130 210 0.05 0.30 M PC9530 90 150 0.05 0.30 90 150 0.05 0.30 K PC6510 140 230 0.10 0.40 140 230 0.08 0.35 Milling 4 8 62 Technical Information for Rich Mill Rich Mill RMH8 Screw on clamping system Adopt and stable clamping system Reinforced rigidity and enhanced clamping power Appling shim system, prevent cutter damage when insert breaks Adopting exchangeable shim Using various kinds of cutter (Approach angle 45°, 75°, 88°) Stable clamping power with insert Screw Insert Shim Screw Shim RMH8A (AA 45°) RMH8E (AA 75°) RMH8Q (AA 88°) Rich Mill RMT8 New generation clamping system
