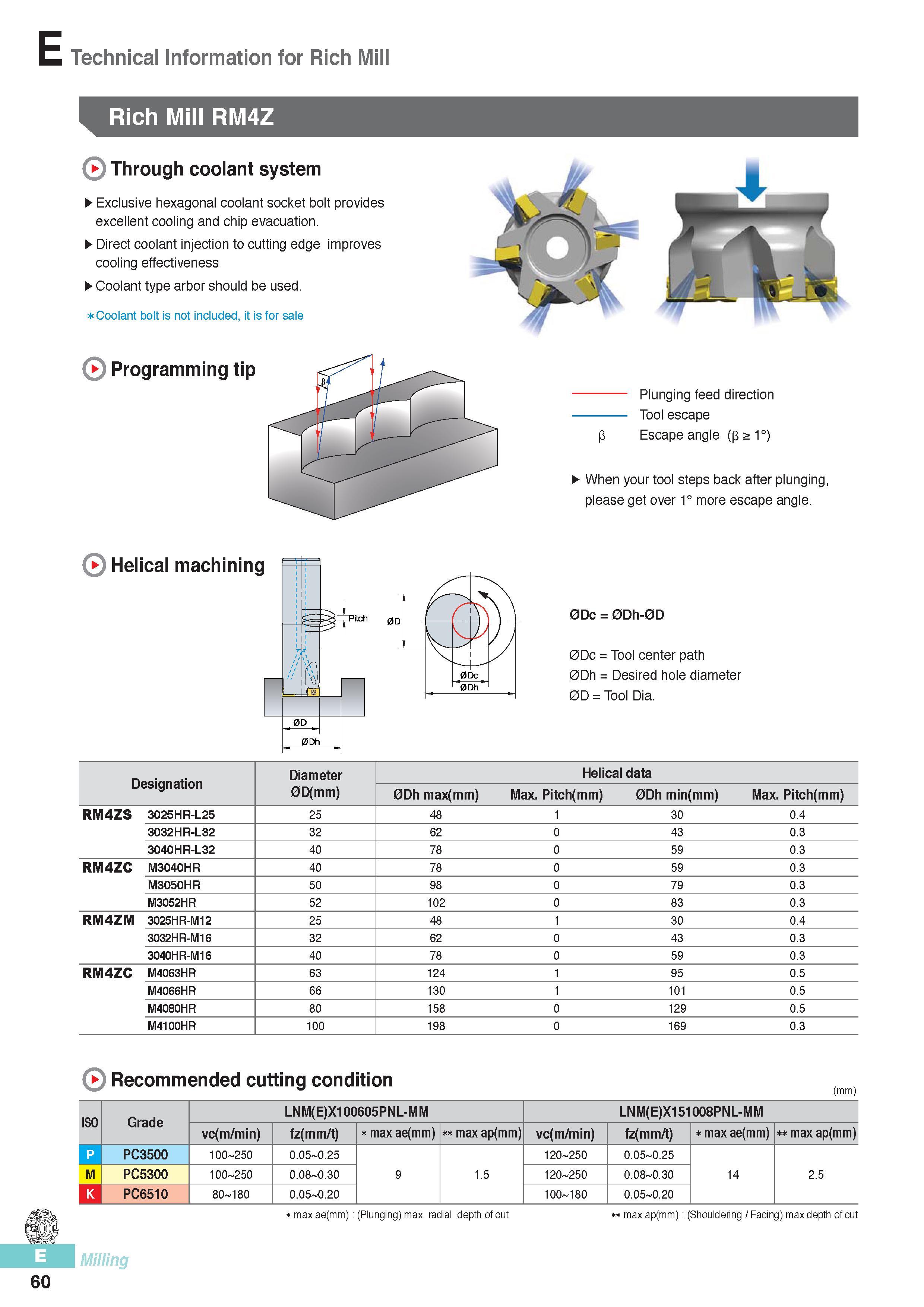

Through coolant system of metal milling cutters Korloy Rich RM4Z Exclusive hexagonal coolant socket bolt provides excellent cooling and chip evacuation. Direct coolant injection to cutting edge improves cooling effectiveness Coolant type arbor should be used. Coolant bolt is not included, it is for sale - Plunging feed direction - Tool escape p Escape angle (p>1°) When your tool steps back after plunging, please get over 1° more escape angle. 0Dc = 0Dh-0D 0Dc = Tool center path 0Dh = Desired hole diameter 0D = Tool Dia. Designation Diameter 0D(mm) Helical data 0Dh max(mm) Max. Pitch(mm) 0Dh min(mm) Max. Pitch(mm) RM4ZS 3025HR-L25 25 48 1 30 0.4 3032HR-L32 32 62 0 43 0.3 3040HR-L32 40 78 0 59 0.3 RM4ZC M3040HR 40 78 0 59 0.3 M3050HR 50 98 0 79 0.3 M3052HR 52 102 0 83 0.3 RM4ZM 3025HR-M12 25 48 1 30 0.4 3032HR-M16 32 62 0 43 0.3 3040HR-M16 40 78 0 59 0.3 RM4ZC M4063HR 63 124 1 95 0.5 M4066HR 66 130 1 101 0.5 M4080HR 80 158 0 129 0.5 M4100HR 100 198 0 169 0.3 Recommended cutting condition (mm) 60 ISO Milling Grade LNM(E)X100605PNL-MM LNM(E)X151008PNL-MM vc(m/min) fz(mm/t) max ae(mm) max ap(mm) vc(m/min) fz(mm/t) max ae(mm) max ap(mm) PC3500 100 250 0.05 0.25 9 1.5 120 250 0.05 0.25 14 2.5 PC5300 100 250 0.08 0.30 120 250 0.08 0.30 PC6510 80 180 0.05 0.20 100 180 0.05 0.20 max ae(mm) (Plunging) max. radial depth of cut maxap(mm): (Shouldering / Facing) max depth of cut M Technical Information for Rich Mill Rich Mill RM4Z
