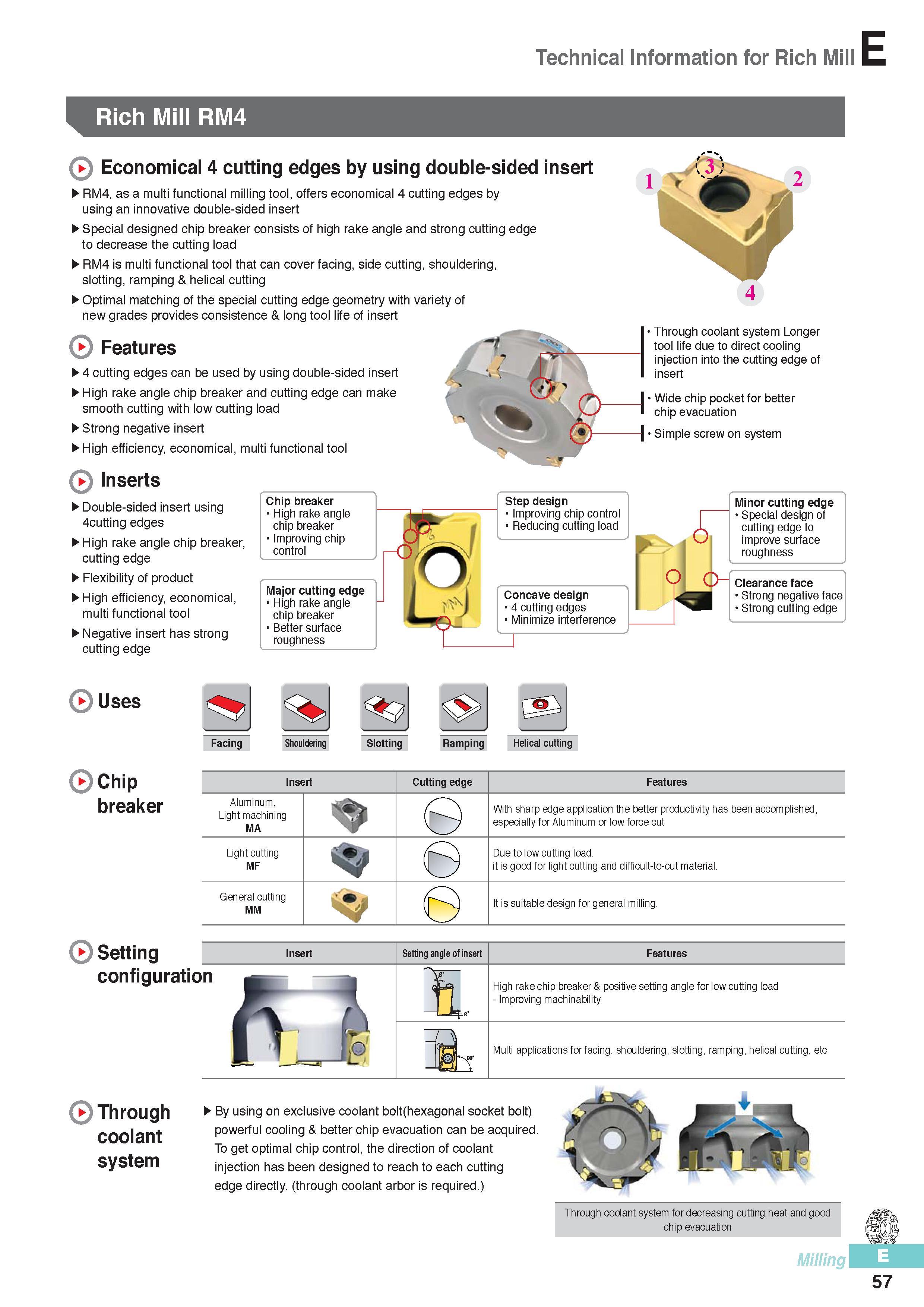

Technical Information for Rich Mill Korloy RM4 Economical 4 cutting edges by using double-sided insert RM4, as a multi functional milling tool, offers economical 4 cutting edges by using an innovative double-sided insert Special designed chip breaker consists of high rake angle and strong cutting edge to decrease the cutting load RM4 is multi functional tool that can cover facing, side cutting, shouldering, slotting, ramping & helical cutting Optimal matching of the special cutting edge geometry with variety of new grades provides consistence & long tool life of insert Features 4 cutting edges can be used by using double-sided insert High rake angle chip breaker and cutting edge can make smooth cutting with low cutting load Strong negative insert High efficiency, economical, multi functional tool Inserts Double-sided insert using 4cutting edges High rake angle chip breaker, cutting edge Flexibility of product High efficiency, economical, multi functional tool Negative insert has strong cutting edge Chip breaker High rake angle chip breaker Improving chip control Major cutting edge High rake angle chip breaker Better surface roughness Concave design 4 cutting edges Minimize interference 4 Through coolant system Longer tool life due to direct cooling injection into the cutting edge of insert I Wide chip pocket for better chip evacuation Simple screw on system Minor cutting edge 1 Special design of cutting edge to improve surface roughness Clearance face Strong negative face Strong cutting edge Uses Chip breaker Facing Shouldering Slotting Ramping Helical cutting Insert Cutting edge Features Aluminum, Light machining MA With sharp edge application the better productivity has been accomplished, especially for Aluminum or low force cut Light cutting MF Due to low cutting load, it is good for light cutting and difficult-to-cut material. General cutting MM It is suitable design for general milling. Setting configuration Insert Setting angle of insert Features High rake chip breaker & positive setting angle for low cutting load - Improving machinability Multi applications for facing, shouldering, slotting, ramping, helical cutting, etc Through coolant system By using on exclusive coolant bolt(hexagonal socket bolt) powerful cooling & better chip evacuation can be acquired. To get optimal chip control, the direction of coolant injection has been designed to reach to each cutting edge directly, (through coolant arbor is required.) Through coolant system for decreasing cutting heat and good chip evacuation Milling 57 Rich Mill
