Indexable milling tool Korloy Rich RM4Z is a plunge mill for high ef ficiency vertical machining such as slotting and RM4Z pocketing in roughing applicatio

Indexable milling tool Korloy Rich RM4Z is a plunge mill for high ef ficiency vertical machining such as slotting and RM4Z pocketing in roughing applicatio

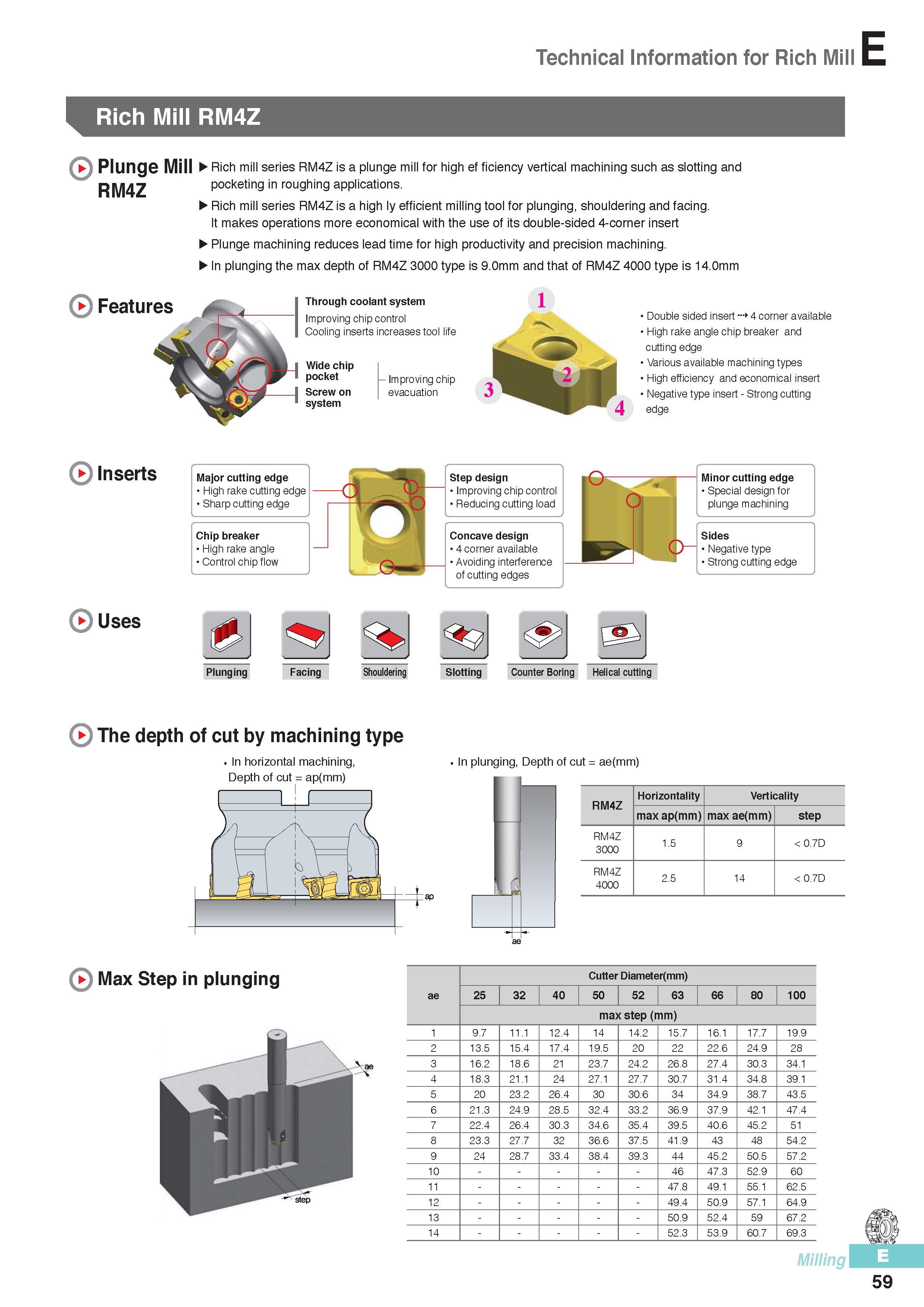

Indexable milling tool Korloy Rich RM4Z is a plunge mill for high ef ficiency vertical machining such as slotting and RM4Z pocketing in roughing applications. Rich mill series RM4Z is a high efficient milling tool for plunging, shouldering and facing. It makes operations more economical with the use of its double-sided 4-corner insert Plunge machining reduces lead time for high productivity and precision machining. In plunging the max depth of RM4Z 3000 type is 9.0mm and that of RM4Z 4000 type is 14.0mm Features Through coolant system Improving chip control Cooling inserts increases tool life Wide chip pocket Screw on system Improving chip evacuation 3 1 “V 4 Double sided insert" 4 corner available High rake angle chip breaker and cutting edge Various available machining types High efficiency and economical insert Negative type insert - Strong cutting edge Inserts Major cutting edge High rake cutting edge Sharp cutting edge Chip breaker High rake angle Control chipflow Uses Plunging Facing Shouldering Slotting Counter Boring Helical cutting The depth of cut by machining type In horizontal machining, Depth of cut = ap(mm) In plunging, Depth of cut = ae(mm) RM4Z Horizontality Verticality max ap(mm) max ae(mm) step RM4Z 3000 1.5 9 0.7D RM4Z 4000 2.5 14 0.7D Max Step in plunging ae Cutter Diameter(mm) 25 32 40 50 52 63 66 80 100 max step (mm) 9.7 11.1 12.4 14 14.2 15.7 16.1 17.7 19.9 2 13.5 15.4 17.4 19.5 20 22 22.6 24.9 28 3 16.2 18.6 21 23.7 24.2 26.8 27.4 30.3 34.1 4 18.3 21.1 24 27.1 27.7 30.7 31.4 34.8 39.1 5 20 23.2 26.4 30 30.6 34 34.9 38.7 43.5 6 21.3 24.9 28.5 32.4 33.2 36.9 37.9 42.1 47.4 7 22.4 26.4 30.3 34.6 35.4 39.5 40.6 45.2 51 8 23.3 27.7 32 36.6 37.5 41.9 43 48 54.2 9 24 28.7 33.4 38.4 39.3 44 45.2 50.5 57.2 10 46 47.3 52.9 60 11 47.8 49.1 55.1 62.5 12 49.4 50.9 57.1 64.9 13 50.9 52.4 59 67.2 14 52.3 53.9 60.7 69.3 Milling 59 Technical Information for Rich Mill Rich Mill RM4Z Plunge Mill
