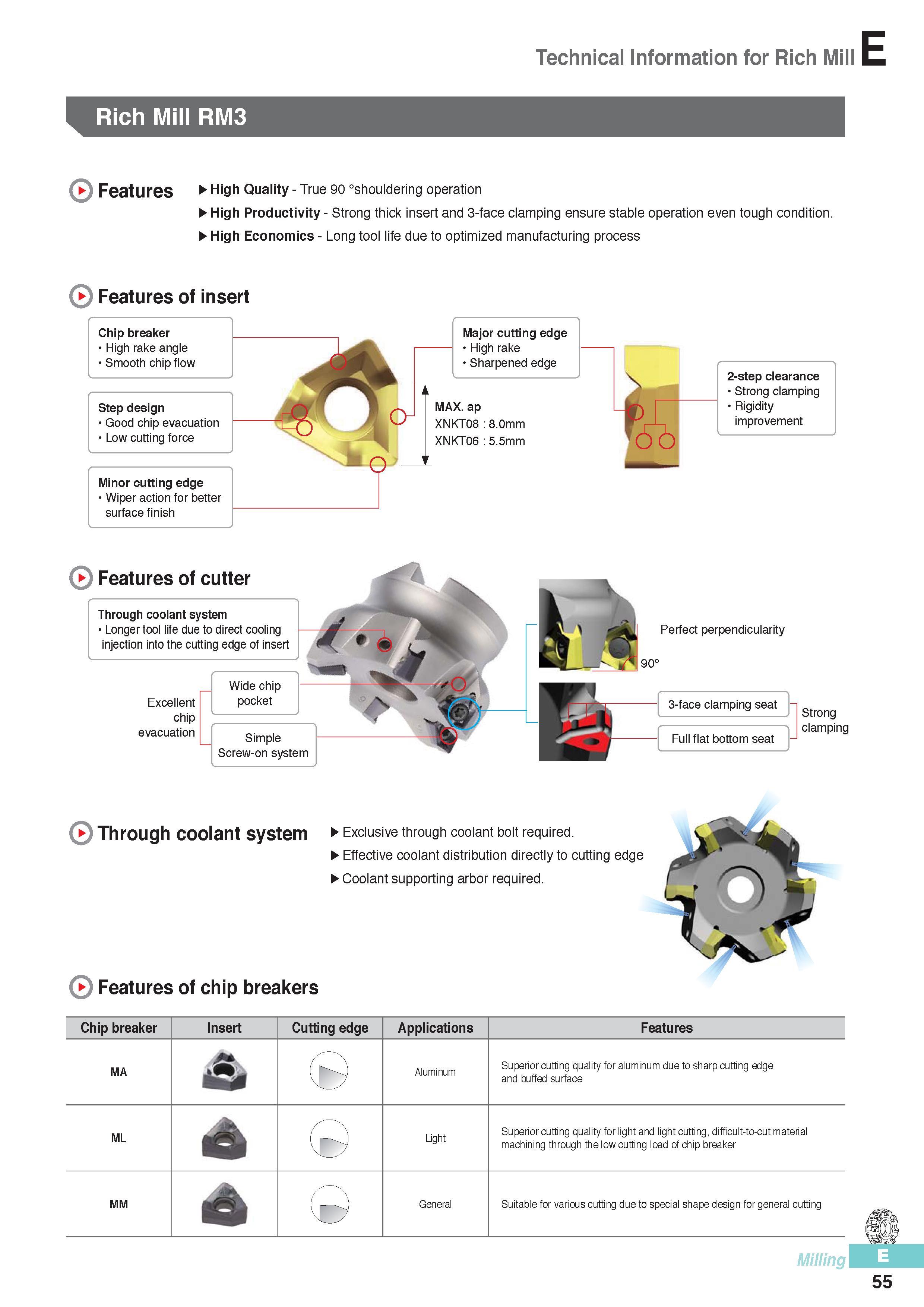

Indexable milling tools from South Korea Features of cutting inserts Korloy for Rich Mill Chip breaker High rake angle Smooth chip flow Step design Good chip evacuation Low cutting force Minor cutting edge Wiper action for better surface finish Features of cutter Perfect perpendicularity Full flat bottom seat Strong clamping Through coolant system Exclusive through coolant bolt required. Effective coolant distribution directly to cutting edge Coolant supporting arbor required. Features of chip breakers Chip breaker Insert Cutting edge Applications Features MA & ( Aluminum Superior cutting quality for aluminum due to sharp cutting edge and buffed surface ML ( 9 Light Superior cutting quality for light and light cutting, difficult-to-cut material machining through the low cutting load of chip breaker MM ( o General Suitable for various cutting due to special shape design for general cutting Milling 55 Technical Information for Rich Mill Rich Mill RM3 Features High Quality - True 90 “shouldering operation High Productivity - Strong thick insert and 3-face clamping ensure stable operation even tough condition. High Economics - Long tool life due to optimized manufacturing process
