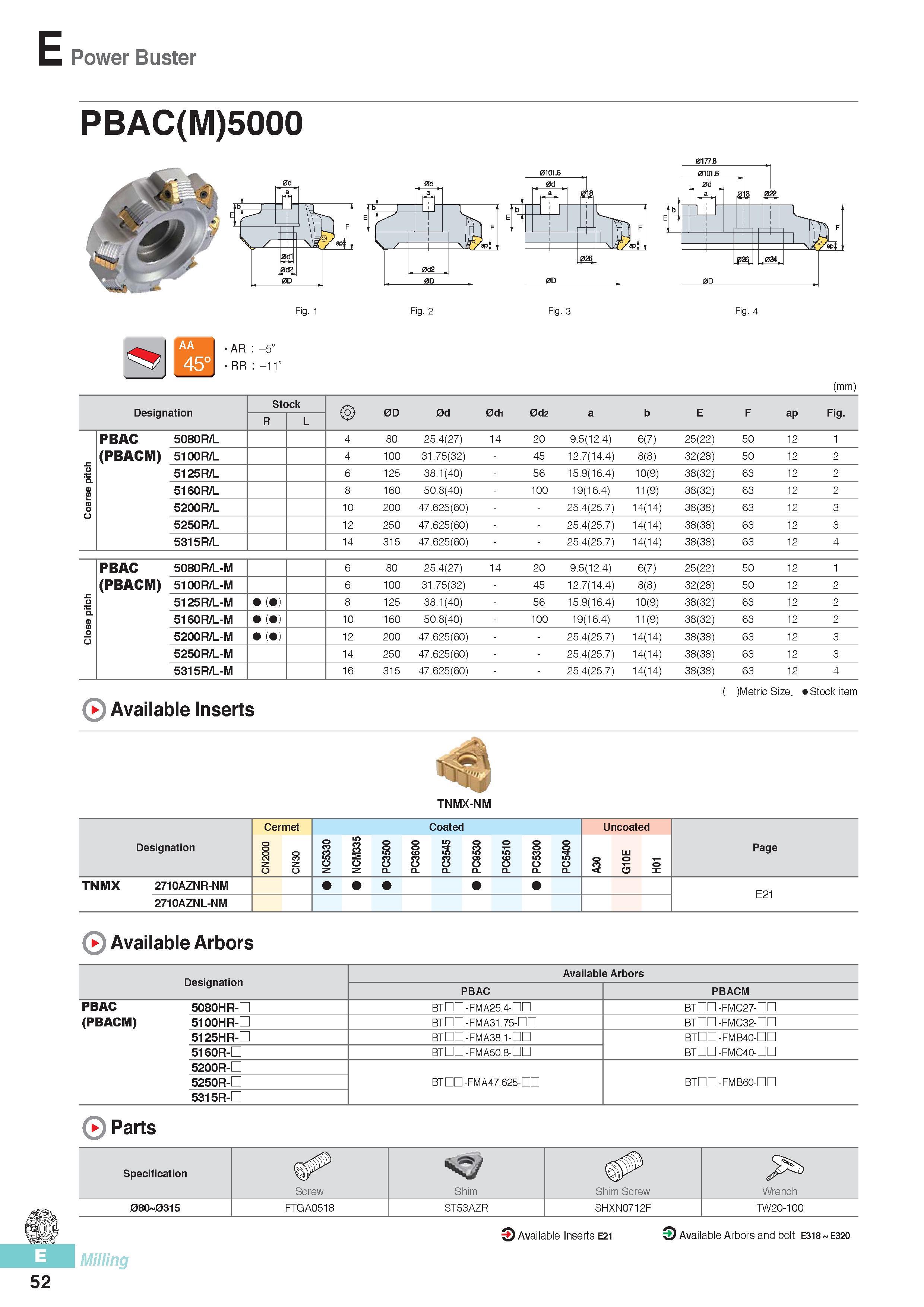

Power Buster PBAC(M)5000 AR -5" RR -11° (mm) Designation Stock 0D 0d 0di 0d2 a b E F ap Fig. R L PBAC 5080R/L 4 80 25.4(27) 14 20 9.5(12.4) 6(7) 25(22) 50 12 1 o (PBACM) 5100R/L 4 100 31.75(32) - 45 12.7(14.4) 8(8) 32(28) 50 12 2 5125R/L 6 125 38.1(40) - 56 15.9(16.4) 10(9) 38(32) 63 12 2 CD tr> 5160R/L 8 160 50.8(40) - 100 19(16.4) 11(9) 38(32) 63 12 2 re o C 5200R/L 10 200 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 3 5250R/L 12 250 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 3 5315R/L 14 315 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 4 PBAC 5080R/L-M 6 80 25.4(27) 14 20 9.5(12.4) 6(7) 25(22) 50 12 1 (PBACM) 5100R/L-M 6 100 31.75(32) - 45 12.7(14.4) 8(8) 32(28) 50 12 2 Close pitch 5125R/L-M ( ) 8 125 38.1(40) - 56 15.9(16.4) 10(9) 38(32) 63 12 2 5160R/L-M ( ) 10 160 50.8(40) - 100 19(16.4) 11(9) 38(32) 63 12 2 5200R/L-M ( ) 12 200 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 3 5250R/L-M 14 250 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 3 5315R/L-M 16 315 47.625(60) 25.4(25.7) 14(14) 38(38) 63 12 4 ( Available Inserts ( )Metric Size, Stock item TNMX-NM Cermet Coated Uncoated Designation CN2000 CN30 NC5330 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page TNMX 2710AZNR-NM 2710AZNL-NM 0 Available Arbors Designation Available Arbors PBAC PBACM PBAC 5080HR-D BTHO-FMA25.4-DQ BTHin -FMC27-HO (PBACM) 5100HR-D BTHO-FMA31.75-HO BTDQ -FMC32-HO 5125HR-D BTDQ-FMA38.1-HO BTDQ-FMB40-DQ 5160R-D BTDQ-FMA50.8-DQ BTDQ -FMC40-DQ 5200R-D 5250R-D BTnn-FMA47.625-DD BTHO-FMB60-DC 5315R-D Q Parts Specification Screw Shim Shim Screw Wrench 080 0315 FTGA0518 ST53AZR SHXN0712F TW20-100 OAvailable Inserts E21 OAvailable Arbors and bolt E318 E320 E Milling 52
