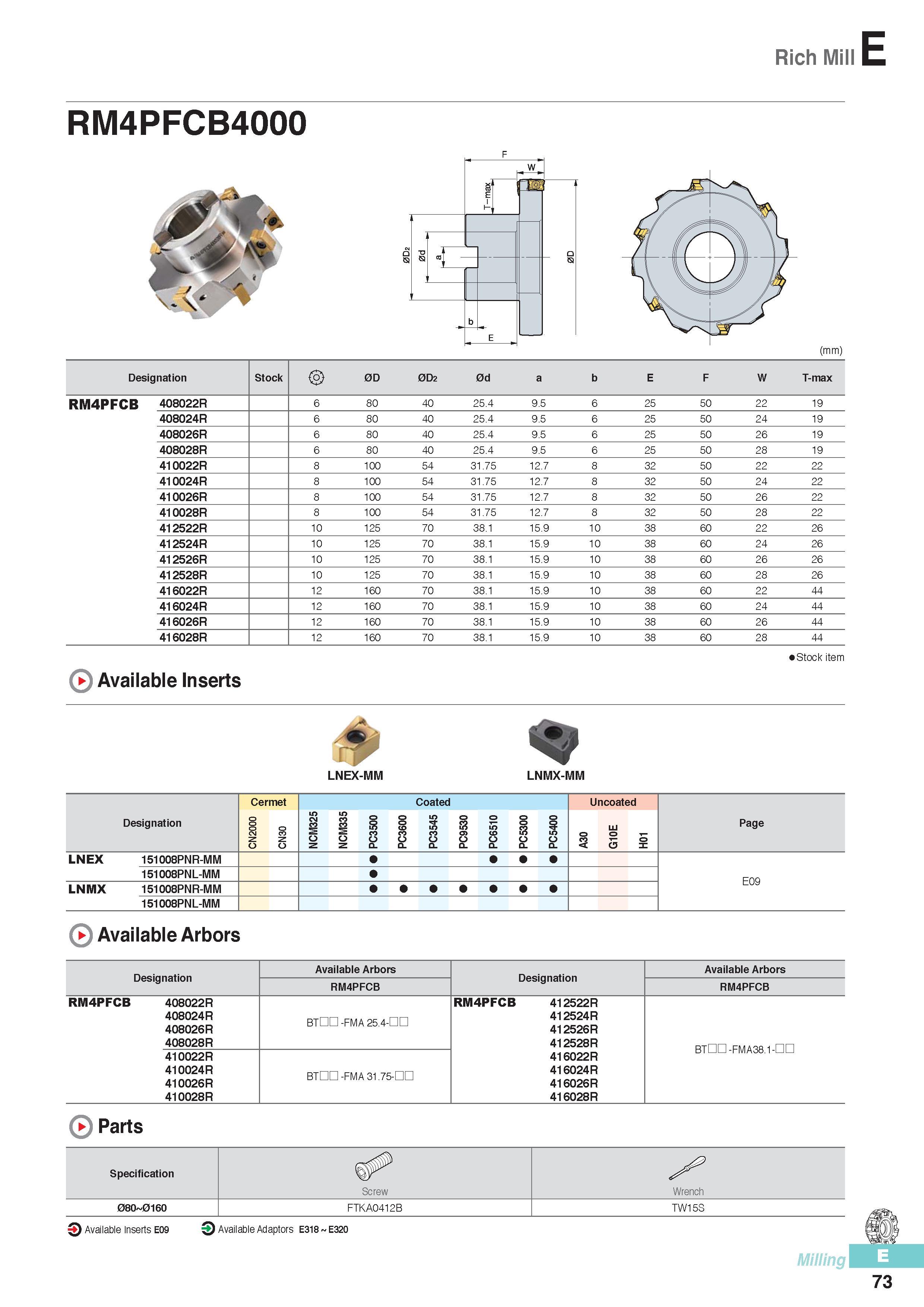

Rich Mill E RM4PFCB4000 (mm) Designation Stock 0D 0D2 0d a b E F W T-max RM4PFCB 408022R 6 80 40 25.4 9.5 6 25 50 22 19 408024R 6 80 40 25.4 9.5 6 25 50 24 19 408026R 6 80 40 25.4 9.5 6 25 50 26 19 408028R 6 80 40 25.4 9.5 6 25 50 28 19 410022R 8 100 54 31.75 12.7 8 32 50 22 22 410024R 8 100 54 31.75 12.7 8 32 50 24 22 410026R 8 100 54 31.75 12.7 8 32 50 26 22 410028R 8 100 54 31.75 12.7 8 32 50 28 22 412522R 10 125 70 38.1 15.9 10 38 60 22 26 412524R 10 125 70 38.1 15.9 10 38 60 24 26 412526R 10 125 70 38.1 15.9 10 38 60 26 26 412528R 10 125 70 38.1 15.9 10 38 60 28 26 416022R 12 160 70 38.1 15.9 10 38 60 22 44 416024R 12 160 70 38.1 15.9 10 38 60 24 44 416026R 12 160 70 38.1 15.9 10 38 60 26 44 416028R 12 160 70 38.1 15.9 10 38 60 28 44 Stock item ( Available Inserts LNEX-MM LNMX-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 LNEX 151008PNR-MM 151008PNL-MM LNMX 151008PNR-MM 151008PNL-MM ( Available Arbors Designation Available Arbors Designation Available Arbors RM4PFCB RM4PFCB RM4PFCB 408022R 408024R 408026R 408028R BTDD -FMA 25.4-nn RM4PFCB 412522R 412524R 412526R 412528R 416022R 416024R 416026R 416028R BTDD-FMA38.1-DQ 410022R 410024R 410026R 410028R BTDD -FMA 31.75-DQ ( Parts Specification Screw Wrench 080 0160 FTKA0412B TW15S O Available Inserts E09 3 Available Adaptors E318 E320 Milling 73
