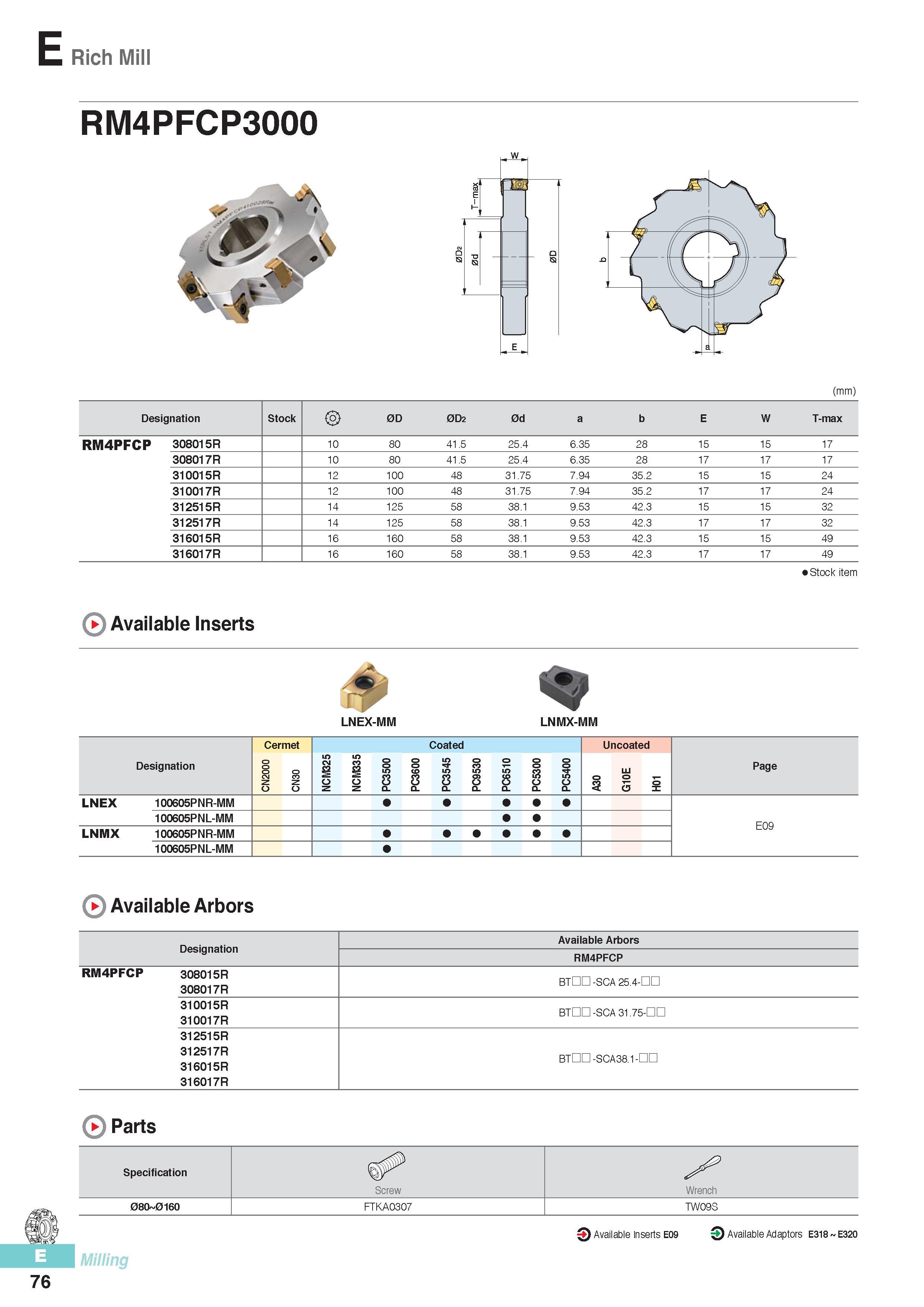

E Rich Mill RM4PFCP3000 (mm) Designation Stock 0D 0D2 0d a b E W T-max RM4PFCP 308015R 10 80 41.5 25.4 6.35 28 15 15 17 308017R 10 80 41.5 25.4 6.35 28 17 17 17 310015R 12 100 48 31.75 7.94 35.2 15 15 24 310017R 12 100 48 31.75 7.94 35.2 17 17 24 312515R 14 125 58 38.1 9.53 42.3 15 15 32 312517R 14 125 58 38.1 9.53 42.3 17 17 32 316015R 16 160 58 38.1 9.53 42.3 15 15 49 316017R 16 160 58 38.1 9.53 42.3 17 17 49 Available Inserts Stock item LNEX-MM LNMX-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 LNEX 100605PNR-MM 100605PNL-MM LNMX 100605PNR-MM 100605PNL-MM Available Arbors Designation Available Arbors RM4PFCP RM4PFCP 308015R 308017R BTDD -SCA 25.4-nn 310015R 310017R BTDD -SCA 31.75-QD 312515R 312517R 316015R BTDD -SCA38.1-HO 316017R Parts Specification Screw Wrench 080 0160 FTKA0307 TW09S Milling 0 Available Inserts E09 O Available Adaptors E318 E320 76
