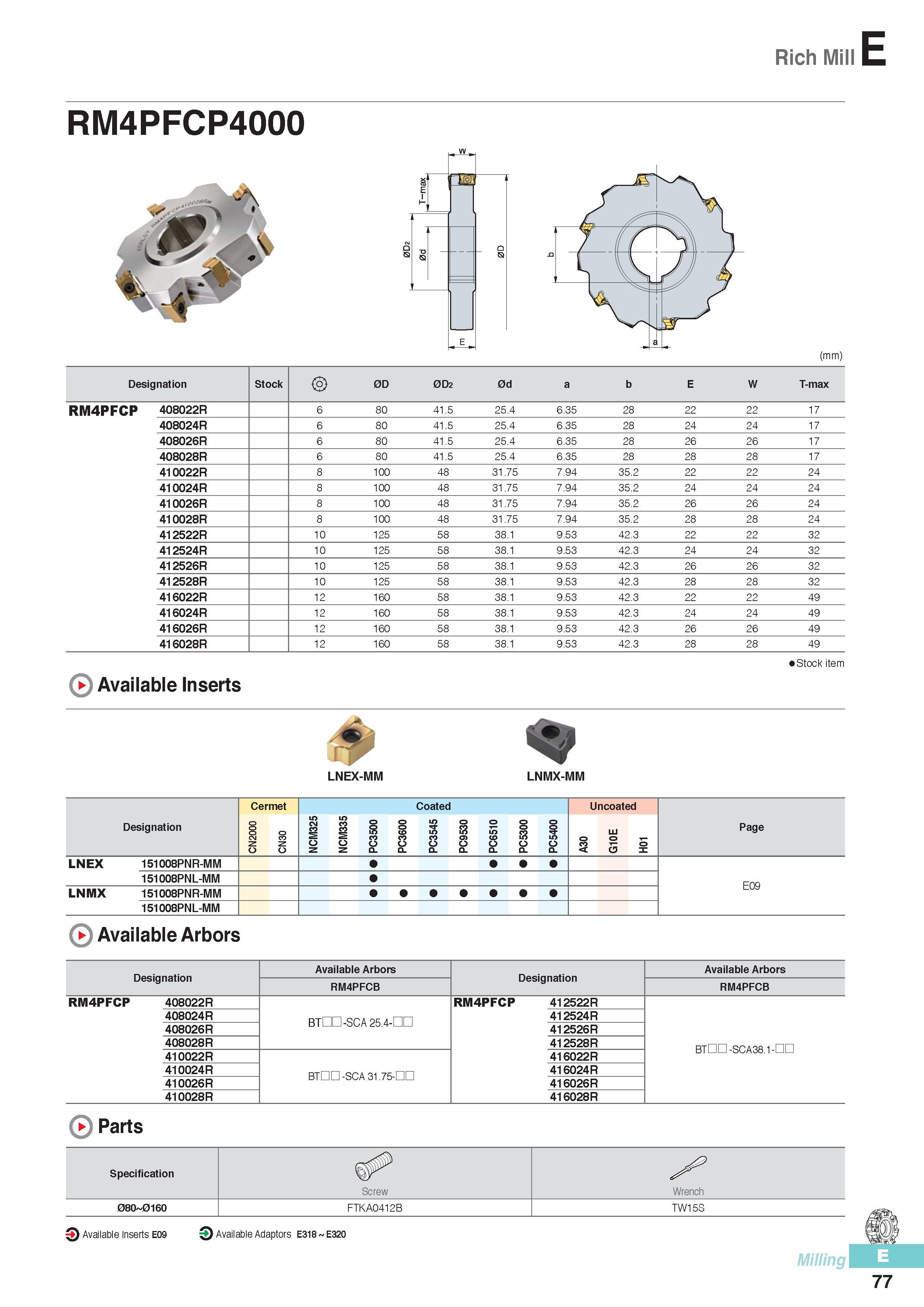

Rich Mill E RM4PFCP4000 (mm) Designation Stock 0D 0D2 0d a b E W T-max RM4PFCP 408022R 6 80 41.5 25.4 6.35 28 22 22 17 408024R 6 80 41.5 25.4 6.35 28 24 24 17 408026R 6 80 41.5 25.4 6.35 28 26 26 17 408028R 6 80 41.5 25.4 6.35 28 28 28 17 410022R 8 100 48 31.75 7.94 35.2 22 22 24 410024R 8 100 48 31.75 7.94 35.2 24 24 24 410026R 8 100 48 31.75 7.94 35.2 26 26 24 410028R 8 100 48 31.75 7.94 35.2 28 28 24 412522R 10 125 58 38.1 9.53 42.3 22 22 32 412524R 10 125 58 38.1 9.53 42.3 24 24 32 412526R 10 125 58 38.1 9.53 42.3 26 26 32 412528R 10 125 58 38.1 9.53 42.3 28 28 32 416022R 12 160 58 38.1 9.53 42.3 22 22 49 416024R 12 160 58 38.1 9.53 42.3 24 24 49 416026R 12 160 58 38.1 9.53 42.3 26 26 49 416028R 12 160 58 38.1 9.53 42.3 28 28 49 Stock item Available Inserts LNEX-MM LNMX-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 LNEX 151008PNR-MM 151008PNL-MM LNMX 151008PNR-MM 151008PNL-MM Available Arbors Designation Available Arbors Designation Available Arbors RM4PFCB RM4PFCB RM4PFCP 408022R BTDD -SCA 25.4-m RM4PFCP 412522R BTDD -SCA38.1-HO 408024R 412524R 408026R 412526R 408028R 412528R 410022R BTDD -SCA 31.75-DQ 416022R 410024R 416024R 410026R 416026R 410028R 416028R Parts Specification Screw Wrench 080 0160 FTKA0412B TW15S O Available Inserts E09 OAvailable Adaptors E318 E320 Milling 77
