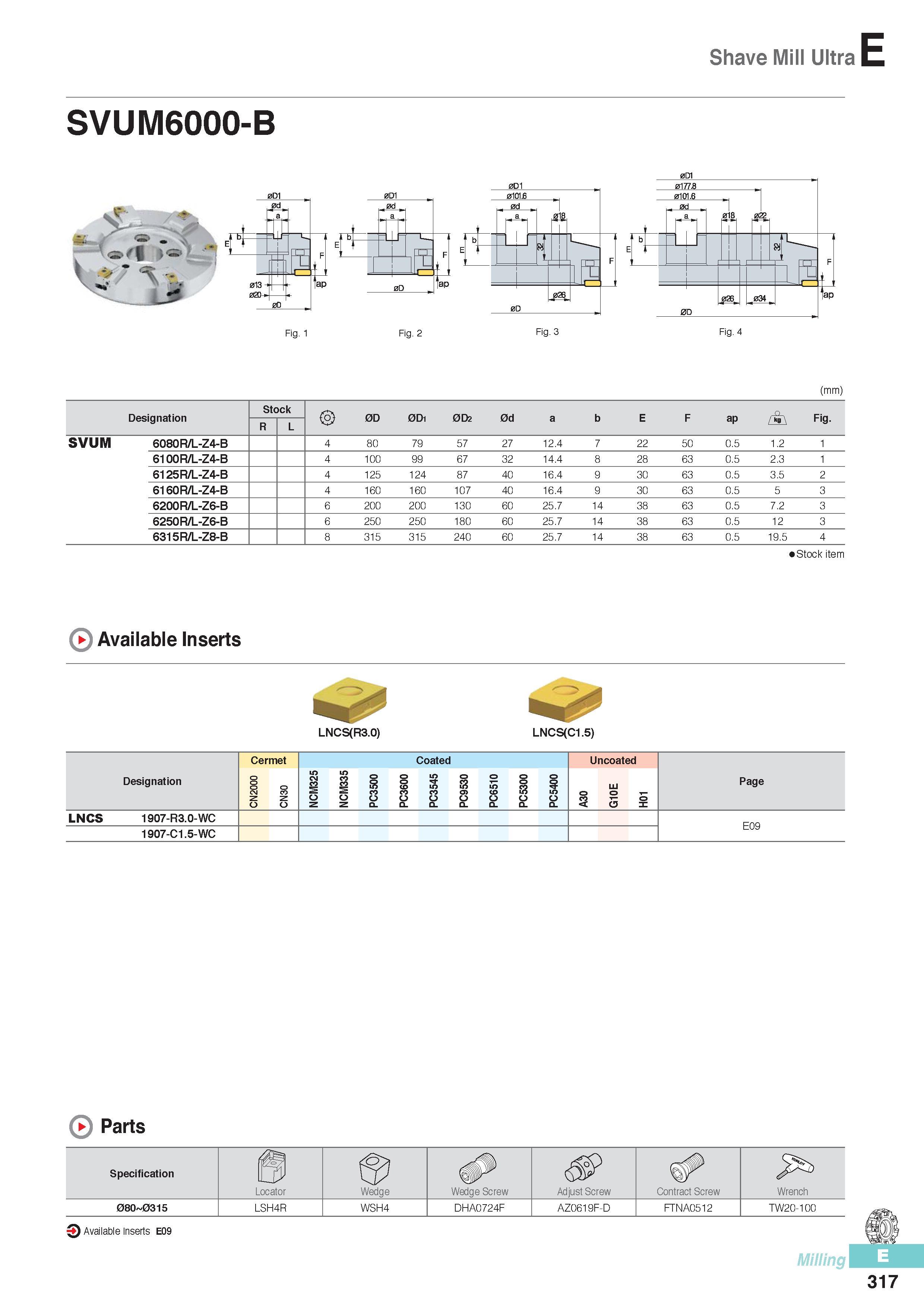

Shave Mill Ultra E SVUM6000-B s ><( > > .U 0da a., i \ 013 - 020- - jap ,0d TT h I i U F J it; it i 0D 0d ,, s 0d JT a Fig. 1 Fig. 2 Fig. 3 Fig. 4 (mm) Designation Stock 0D 0Di 0D2 0d a b E F ap Fig. R L SVUM 6080R/L-Z4-B 4 80 79 57 27 12.4 7 22 50 0.5 1.2 1 6100R/L-Z4-B 4 100 99 67 32 14.4 8 28 63 0.5 2.3 1 6125R/L-Z4-B 4 125 124 87 40 16.4 9 30 63 0.5 3.5 2 6160R/L-Z4-B 4 160 160 107 40 16.4 9 30 63 0.5 5 3 6200R/L-Z6-B 6 200 200 130 60 25.7 14 38 63 0.5 7.2 3 6250R/L-Z6-B 6 250 250 180 60 25.7 14 38 63 0.5 12 3 6315R/L-Z8-B 8 315 315 240 60 25.7 14 38 63 0.5 19.5 4 Stock item Available Inserts LNCS(R3.0) LNCS(C1.5) Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page LNCS 1907-R3.0-WC E09 1907-C1.5-WC Parts Specification & Locator Wedge Wedge Screw Adjust Screw Contract Screw Wrench 080 0315 LSH4R WSH4 DHA0724F AZ0619F-D FTNA0512 TW20-100 Available Inserts E09 Milling 317
