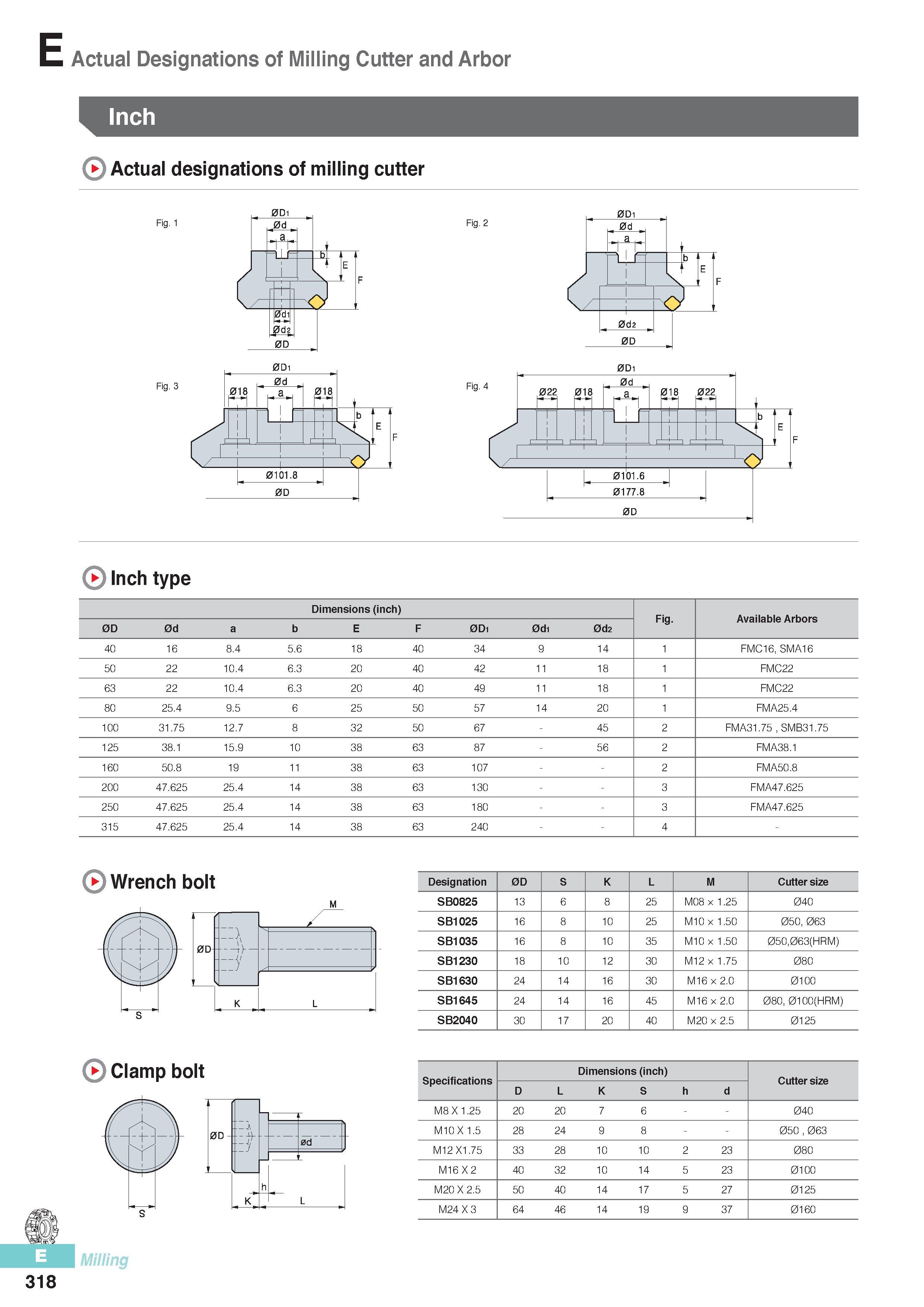

E Actual Designations of Milling Cutter and Arbor Actual designations of milling cutter Fig. 2 0Di Inch type Dimensions (inch) Fig. Available Arbors 0D 0d a b E F 0D1 0d1 0d2 40 16 8.4 5.6 18 40 34 9 14 FMC16, SMA16 50 22 10.4 6.3 20 40 42 11 18 FMC22 63 22 10.4 6.3 20 40 49 11 18 FMC22 80 25.4 9.5 6 25 50 57 14 20 FMA25.4 100 31.75 12.7 8 32 50 67 45 2 FMA31.75 SMB31.75 125 38.1 15.9 10 38 63 87 56 2 FMA38.1 160 50.8 19 11 38 63 107 2 FMA50.8 200 47.625 25.4 14 38 63 130 3 FMA47.625 250 47.625 25.4 14 38 63 180 3 FMA47.625 315 47.625 25.4 14 38 63 240 4 - Wrench bolt Designation 0D S K L M Cutter size SB0825 13 6 8 25 M08 x 1.25 040 SB1025 16 8 10 25 M10 x 1.50 050, 063 SB1035 16 8 10 35 M10 x 1.50 050,063(HRM) SB1230 18 10 12 30 M12 x 1.75 080 SB1630 24 14 16 30 M16 x 2.0 0100 SB1645 24 14 16 45 M16 x 2.0 080, 0100(HRM) SB2040 30 17 20 40 M20 x 2.5 0125 Clamp bolt Milling 318 0D Specifications Dimensions (inch) Cutter size D L K S h d M8 X 1.25 20 20 7 6 040 M10 X 1.5 28 24 9 8 050 063 M12 X1.75 33 28 10 10 2 23 080 M16 X 2 40 32 10 14 5 23 0100 M20 X 2.5 50 40 14 17 5 27 0125 M24 X 3 64 46 14 19 9 37 0160
