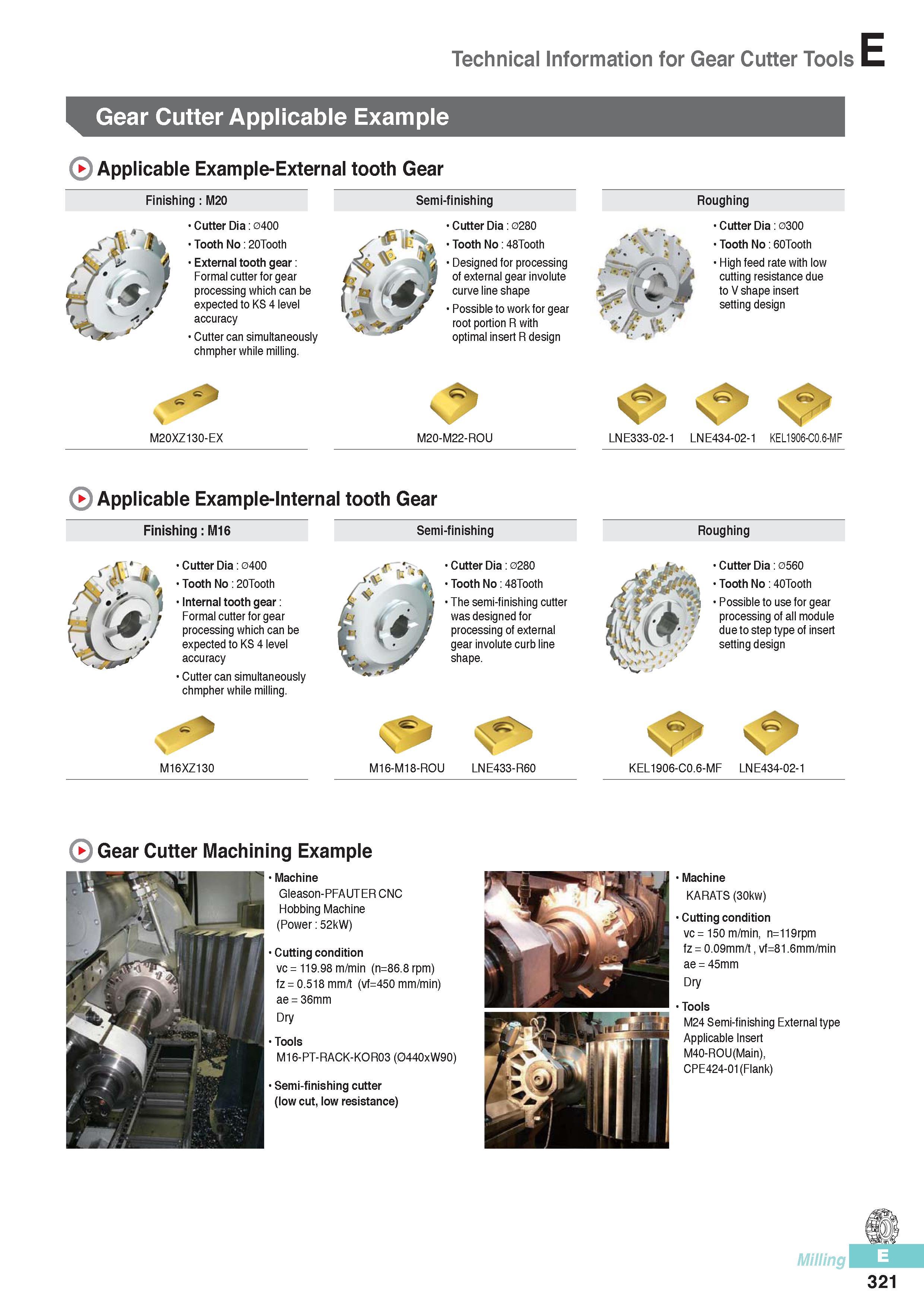

Technical Information for Gear Cutter Tools Gear Cutter Applicable Example Applicable Example-External tooth Gear Finishing M20 Semi-finishing Roughing Cutter Dia: 0400 Tooth No: 20Tooth External tooth gear: Formal cutter for gear processing which can be expected to KS 4 level accuracy Cutter can simultaneously chmpher while milling. Cutter Dia: 0280 Tooth No: 48Tooth Designed for processing of external gear involute curve line shape Possible to work for gear root portion R with optimal insert R design Cutter Dia: O300 Tooth No: 60Tooth High feed rate with low cutting resistance due to V shape insert setting design M20XZ130-EX M20-M22-RQU LNE333-02-1 LNE434-02-1 KEL1906-C0.6-MF Applicable Example-Internal tooth Gear Finishing M16 Semi-finishing Roughing Cutter Dia: 0400 Tooth No 20Tooth Internal tooth gear: Formal cutter for gear processing which can be expected to KS 4 level accuracy Cutter can simultaneously chmpher while milling. M16XZ130 Cutter Dia: 0280 Tooth No: 48Tooth The semi-finishing cutter was designed for processing of external gear involute curb line shape. M16-M18-ROU LNE433-R60 Cutter Dia: 0560 Tooth No 40Tooth Possible to use for gear processing of all module due to step type of insert setting design KEL1906-C0.6-MF LNE434-02-1 Gear Cutter Machining Example Machine Gleason-PFAUTERCNC Hobbing Machine (Power: 52kW) Cutting condition vc= 119.98 m/min (n=86.8rpm) fz = 0.518 mm/t (vf=450 mm/min) ae = 36mm Dry Tools M16-PT-RACK-KOR03 (044OxW9O) Semi-finishing cutter (low cut, low resistance) Machine KARATS (30kw) Cutting condition vc= 150 m/min, n=119rpm fz = 0.09mm/t, vf=81.6mm/min ae = 45mm Dry Tools M24 Semi-finishing External type Applicable Insert M40-ROU(Main); CPE424-01(Flank) Milling 321
