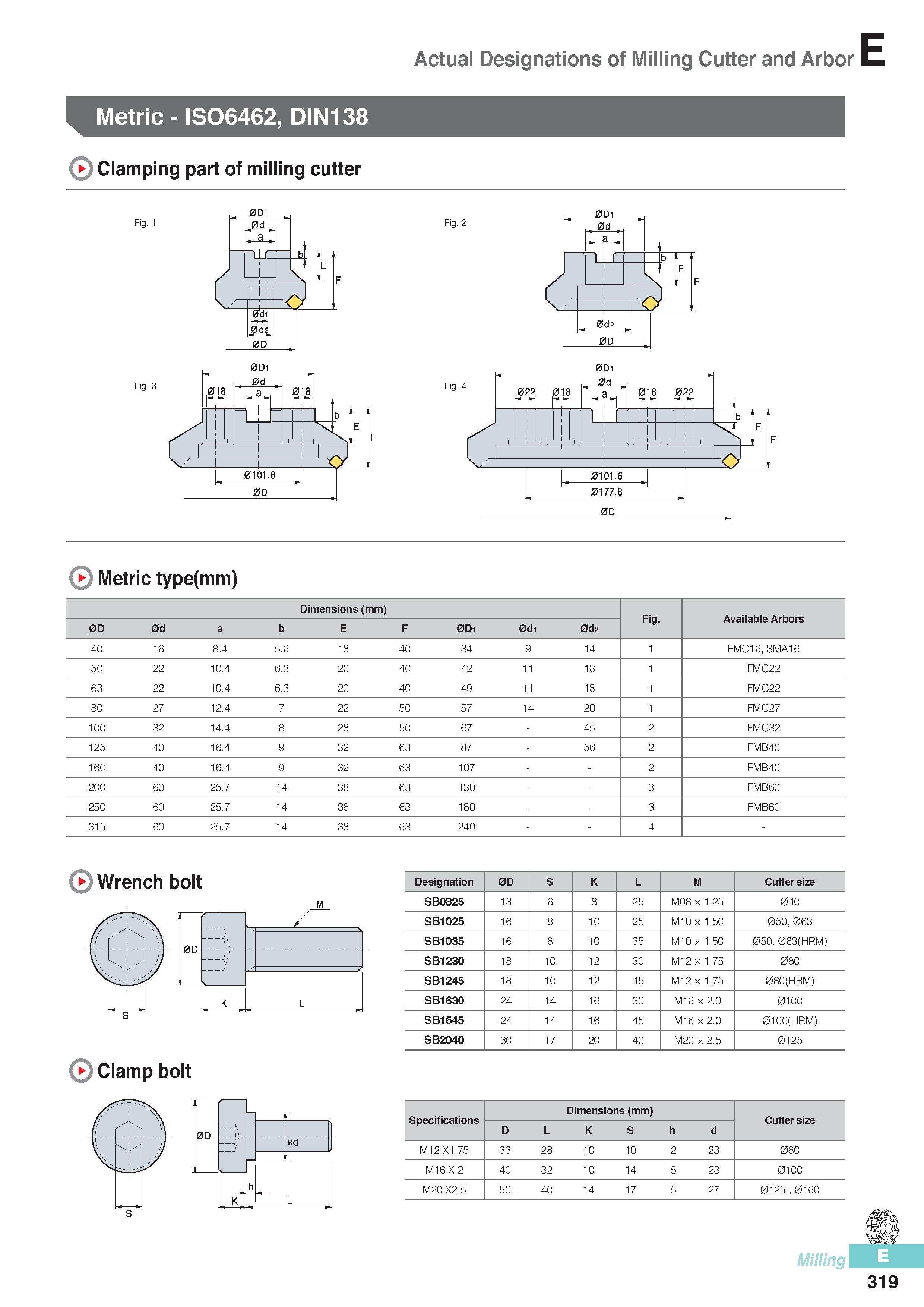

Actual Designations of Milling Cutter and Arbor Metric - ISO6462, DIN138 Clamping part of milling cutter Fig. 2 0Di Metric type(mm) Dimensions (mm) Fig. Available Arbors 0D 0d a b E F 0D1 0d1 0d2 40 16 8.4 5.6 18 40 34 9 14 FMC16, SMA16 50 22 10.4 6.3 20 40 42 11 18 FMC22 63 22 10.4 6.3 20 40 49 11 18 FMC22 80 27 12.4 7 22 50 57 14 20 FMC27 100 32 1 4.4 8 28 50 67 45 2 FMC32 125 40 16.4 9 32 63 87 56 2 FMB40 160 40 16.4 9 32 63 107 2 FMB40 200 60 25.7 14 38 63 130 3 FMB60 250 60 25.7 14 38 63 180 3 FMB60 315 60 25.7 14 38 63 240 4 - Wrench bolt Clamp bolt 0D 0d Designation 0D S K L M Cutter size SB0825 13 6 8 25 M08 x 1.25 040 SB1025 16 8 10 25 M10 x 1.50 050, 063 SB1035 16 8 10 35 M10 x 1.50 050, 063(HRM) SB1230 18 10 12 30 M12 x 1.75 080 SB1245 18 10 12 45 M12 x 1.75 080(HRM) SB1630 24 14 16 30 M16 x 2.0 0100 SB1645 24 14 16 45 M16 x 2.0 0100(HRM) SB2040 30 17 20 40 M20 x 2.5 0125 Specifications Dimensions (mm) Cutter size D L K S h d M12 X1.75 33 28 10 10 2 23 080 M16 X 2 40 32 10 14 5 23 0100 M20 X2.5 50 40 14 17 5 27 0125 0160 Milling 319
