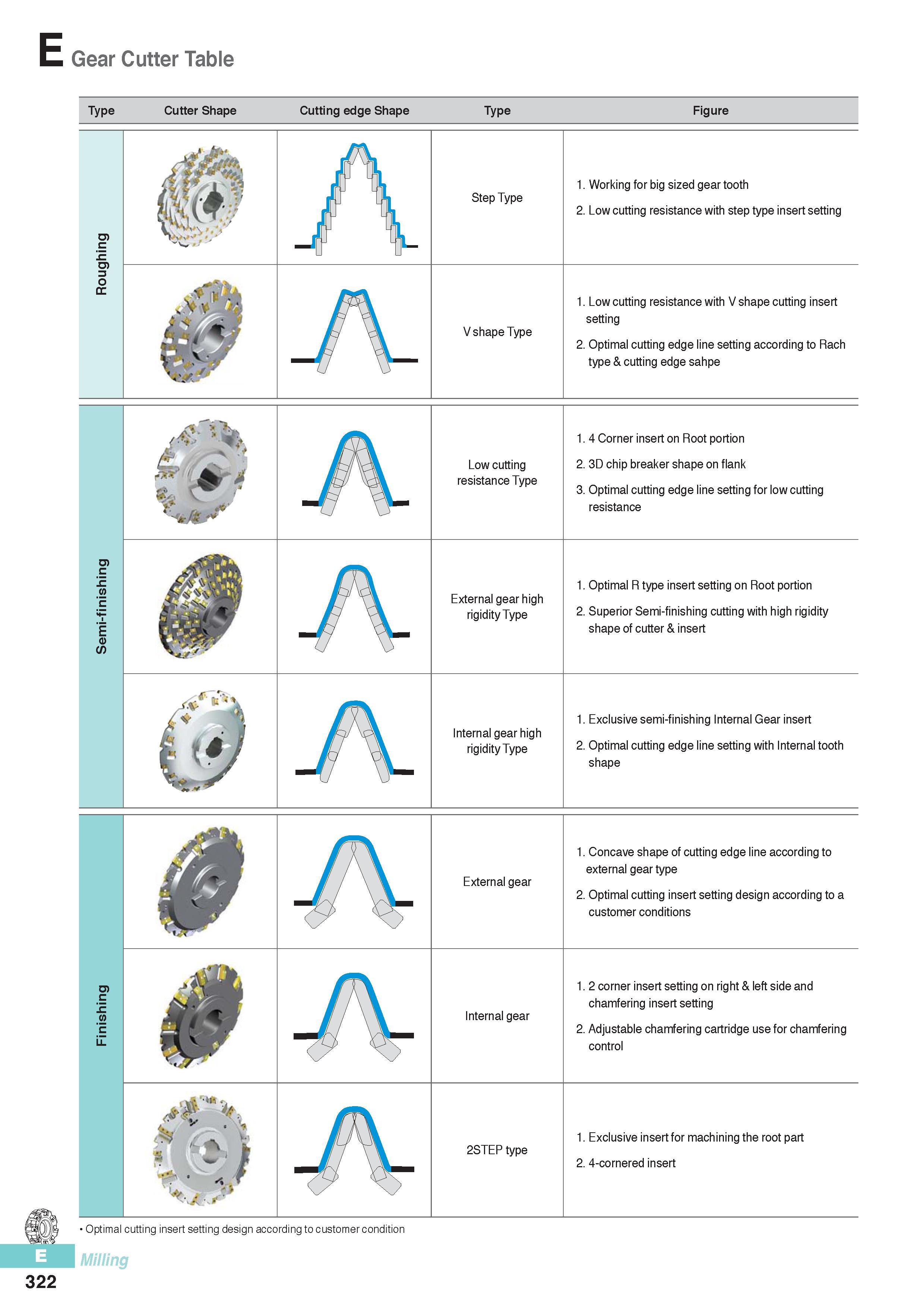

Gear Cutter Table Type Cutter Shape Cutting edge Shape Type Figure cn c c cn o cc Step Type V shape Type 1. Working for big sized gear tooth 2. Low cutting resistance with step type insert setting 1. Low cutting resistance with V shape cutting insert setting 2. Optimal cutting edge line setting according to Rach type & cutting edge sahpe cn c E w E (V (/) Low cutting resistance Type External gear high rigidity Type Internal gear high rigidity Type 1. 4 Corner insert on Root portion 2. 3D chip breaker shape on flank 3. Optimal cutting edge line setting for low cutting resistance 1. Optimal R type insert setting on Root portion 2. Superior Semi-finishing cutting with high rigidity shape of cutter & insert 1. Exclusive semi-finishing Internal Gear insert 2. Optimal cutting edge line setting with Internal tooth shape cn c E w External gear Internal gear 2STEP type 1. Concave shape of cutting edge line according to external gear type 2. Optimal cutting insert setting design according to a customer conditions 1. 2 corner insert setting on right & left side and chamfering insert setting 2. Adjustable chamfering cartridge use for chamfering control 1. Exclusive insert for machining the root part 2. 4-cornered insert Optimal cutting insert setting design according to customer condition Milling 322
