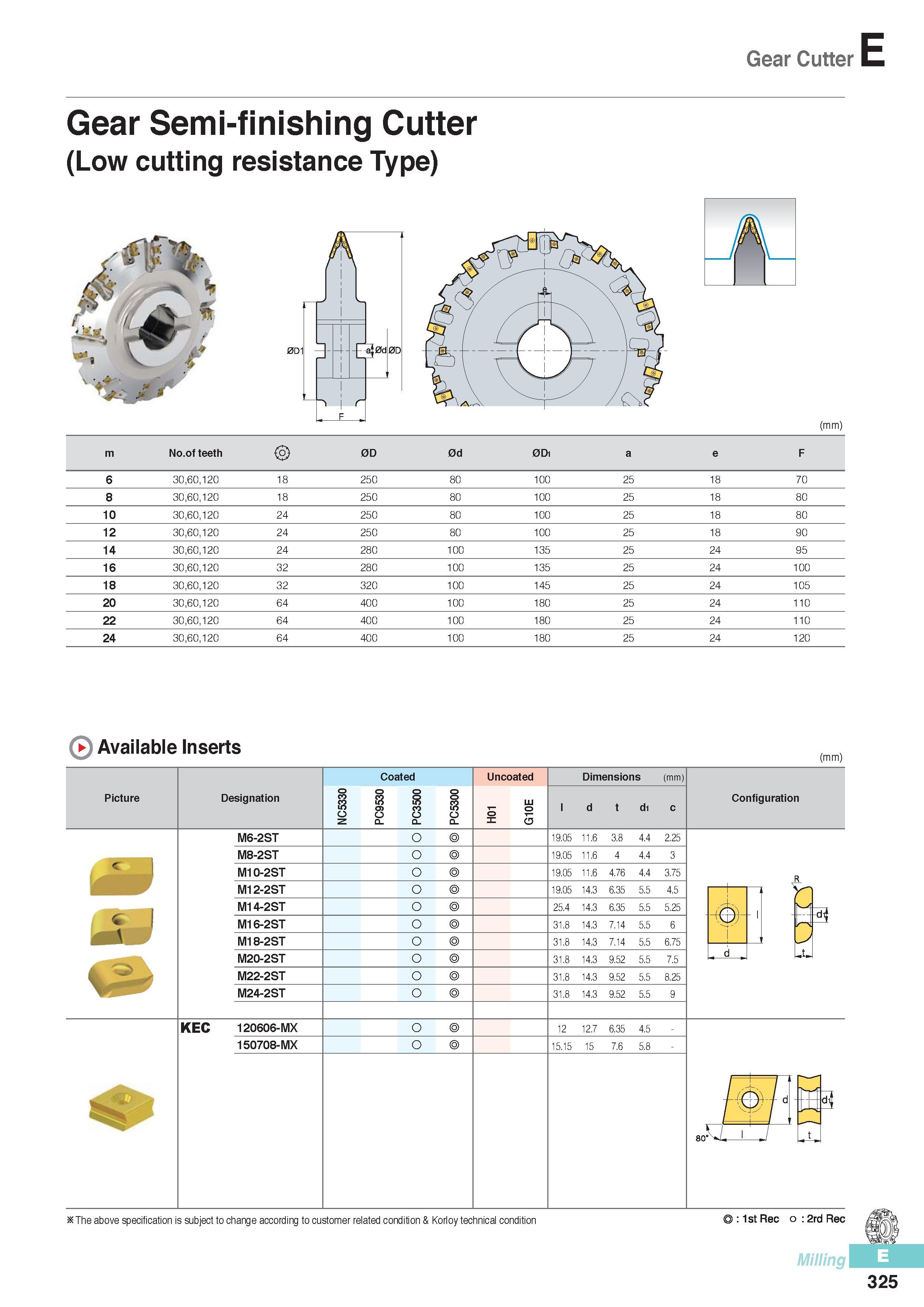

Gear Cutter Gear Semi-finishing Cutter (Low cutting resistance Type) 0D1 - P-aj0d0D I r f (mm) m No.of teeth 0D 0d 0D1 a e F 6 30,60,120 18 250 80 100 25 18 70 8 30,60,120 18 250 80 100 25 18 80 10 30,60,120 24 250 80 100 25 18 80 12 30,60,120 24 250 80 100 25 18 90 14 30,60,120 24 280 100 135 25 24 95 16 30,60,120 32 280 100 135 25 24 100 18 30,60,120 32 320 100 145 25 24 105 20 30,60,120 64 400 100 180 25 24 110 22 30,60,120 64 400 100 180 25 24 110 24 30,60,120 64 400 100 180 25 24 120 Available Inserts (mm) Picture Designation Coated S3 CL o CL 53 o CL Uncoated o Dimensions (mm) Configuration M6-2ST M8-2ST M10-2ST M12-2ST M14-2ST M16-2ST M18-2ST M20-2ST M22-2ST M24-2ST 19.05 3.8 4.4 2.25 19.05 11.6 4 4.4 19.05 1.6 4.76 4.4 3.75 19.05 14.3 6.35 5.5 4.5 25.4 14.3 6.35 5.5 5.25 31.8 14.3 7.14 5.5 31.8 14.3 7.14 5.5 6.75 31.8 14.3 9.52 5.5 7.5 31.8 14.3 9.52 5.5 8.25 31.8 14.3 9.52 5.5 _R_ Yi KEC 120606-MX 150708-MX 12 12.7 6.35 4.5 15.15 15 7.6 5.8 x The above specification is subject to change according to customer related condition & Korloy technical condition :1stRec o:2rdRec Milling 325 c 3 6 9
