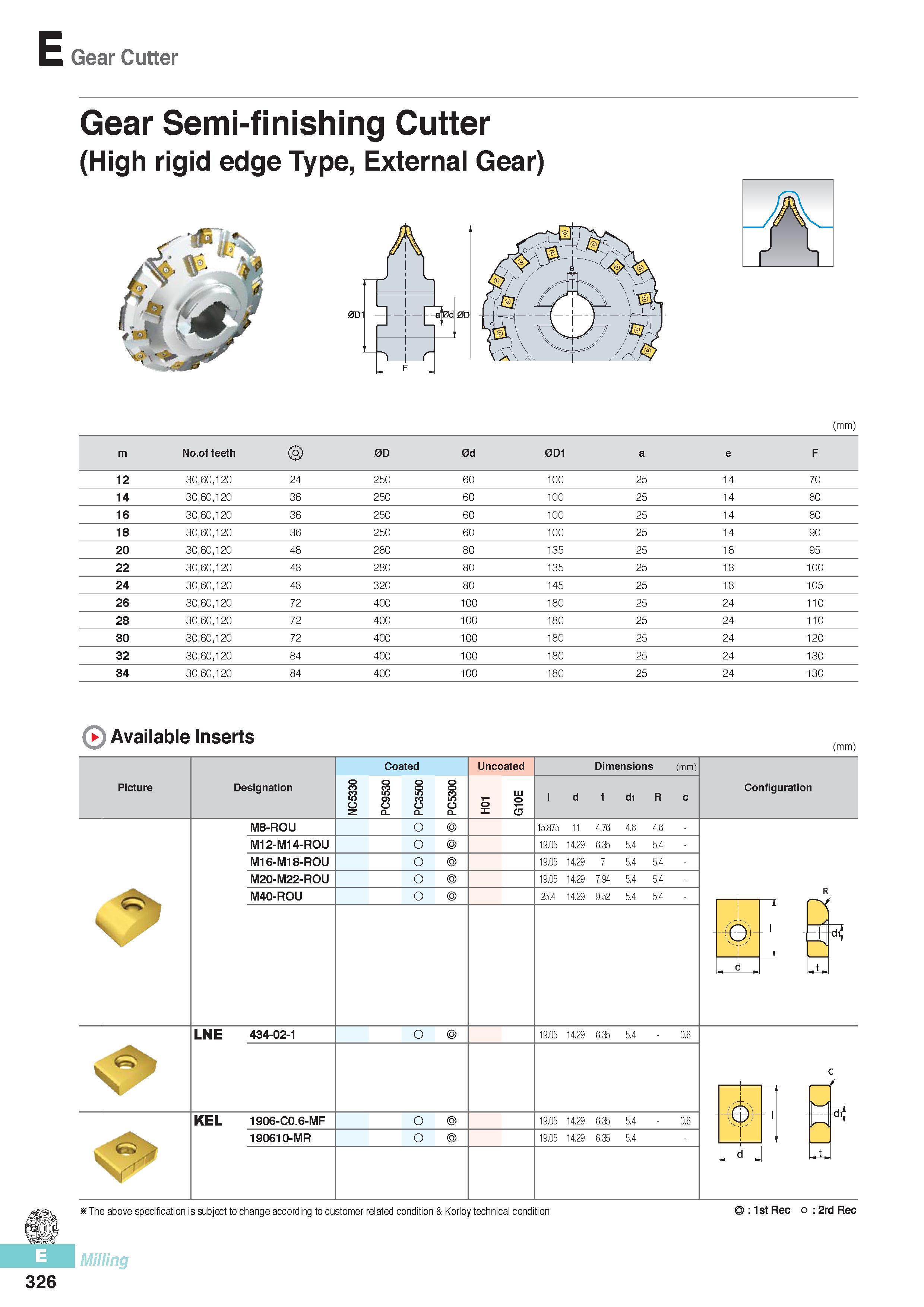

Gear Cutter Gear Semi-finishing Cutter (High rigid edge Type, External Gear) (mm) m No.of teeth 0D 0d 0D1 a e F 12 30,60,120 24 250 60 100 25 14 70 14 30,60,120 36 250 60 100 25 14 80 16 30,60,120 36 250 60 100 25 14 80 18 30,60,120 36 250 60 100 25 14 90 20 30,60,120 48 280 80 135 25 18 95 22 30,60,120 48 280 80 135 25 18 100 24 30,60,120 48 320 80 145 25 18 105 26 30,60,120 72 400 100 180 25 24 110 28 30,60,120 72 400 100 180 25 24 110 30 30,60,120 72 400 100 180 25 24 120 32 30,60,120 84 400 100 180 25 24 130 34 30,60,120 84 400 100 180 25 24 130 Available Inserts (mm) Picture Designation Coated S3 o S3 o S3 O S3 o Uncoated Dimensions (mm) Configuration M8-ROU M12-M14-ROU M16-M18-ROU M20-M22-R0U M40-ROU O 15.875 11 4.71 4.6 4.6 O 19.05 14.29 6.35 5.4 5.4 O 19.05 14.29 7 5.4 5.4 O 19.05 14.29 7.9 5.4 5.4 O 25.4 14.29 9.52 5.4 5.4 (f j 1 s i d r LNE 434-02-1 KEL 1906-C0.6-MF 190610-MR O 19.05 14.29 6.35 5.4 0.6 O 19.05 14.29 6.35 5.4 0.6 O 19.05 14.29 6.35 5.4 V- The above specification is subject to change according to customer related condition & Korloy technical condition i: 1st Rec o 2rd Rec Milling 326
