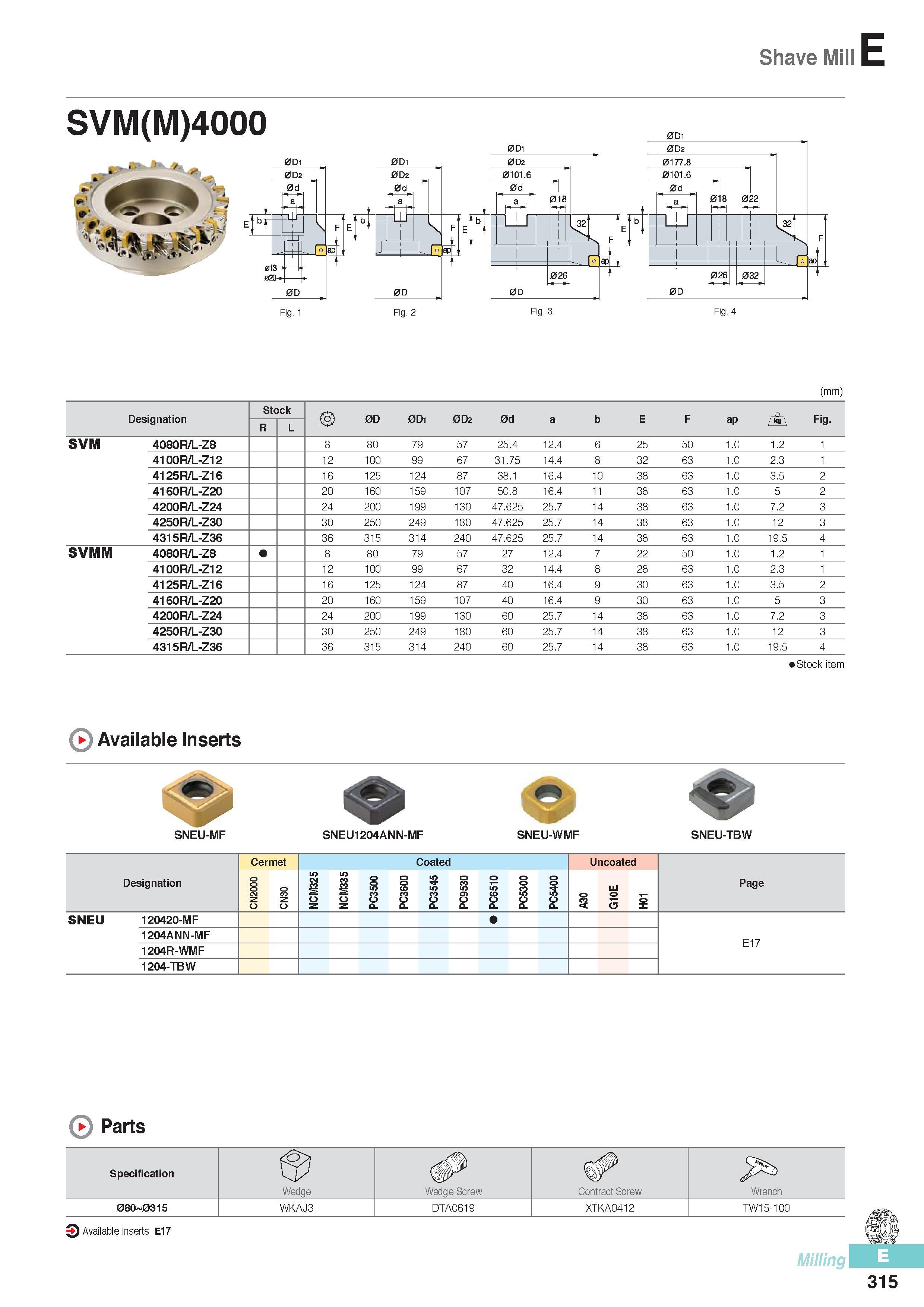

Shave Mill E SVM(M)4000 0D1 0D2 Fig. 1 Fig. 2 Fig. 3 Fig. 4 (mm) Designation Stock 0D 0D1 0D2 0d a b E F ap Fig. R L SVM 4080R/L-Z8 8 80 79 57 25.4 12.4 6 25 50 1.0 1.2 1 4100R/L-Z12 12 100 99 67 31.75 14.4 8 32 63 1.0 2.3 1 4125R/L-Z16 16 125 124 87 38.1 16.4 10 38 63 1.0 3.5 2 4160R/L-Z20 20 160 159 107 50.8 16.4 11 38 63 1.0 5 2 4200R/L-Z24 24 200 199 130 47.625 25.7 14 38 63 1.0 7.2 3 4250R/L-Z30 30 250 249 180 47.625 25.7 14 38 63 1.0 12 3 4315R/L-Z36 36 315 314 240 47.625 25.7 14 38 63 1.0 19.5 4 SVMM 4080R/L-Z8 8 80 79 57 27 12.4 7 22 50 1.0 1.2 1 4100R/L-Z12 12 100 99 67 32 14.4 8 28 63 1.0 2.3 1 4125R/L-Z16 16 125 124 87 40 16.4 9 30 63 1.0 3.5 2 4160R/L-Z20 20 160 159 107 40 16.4 9 30 63 1.0 5 3 4200R/L-Z24 24 200 199 130 60 25.7 14 38 63 1.0 7.2 3 4250R/L-Z30 30 250 249 180 60 25.7 14 38 63 1.0 12 3 4315R/L-Z36 36 315 314 240 60 25.7 14 38 63 1.0 19.5 4 Stock item SNEU-MF SNEU1204ANN-MF SNEU-WMF SNEU-TBW Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SNEU 120420-MF E17 1204ANN-MF 1204R-WMF 1204-TBW Specification Wedge Wedge Screw Contract Screw Wrench 080 0315 WKAJ3 DTA0619 XTKA0412 TW15-100 Available inserts E17 Milling 315
