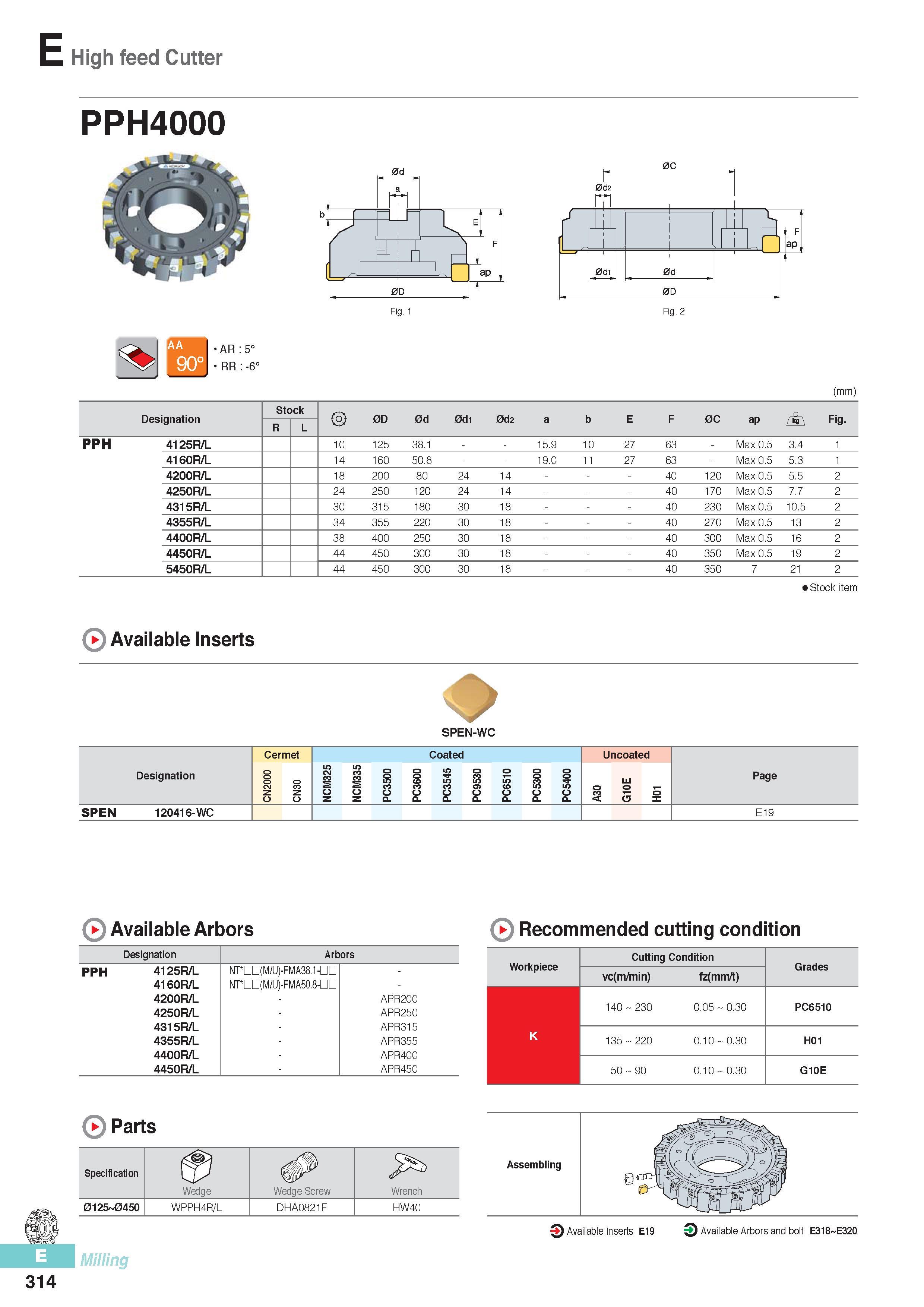

High feed Cutter PPH4000 AR :5° RR -6° (mm) Designation Stock 0D 0d 0d1 0d2 a b E F 0C ap A Fig. R L PPH 4125R/L 10 125 38.1 15.9 10 27 63 - Max 0.5 3.4 1 4160R/L 14 160 50.8 19.0 11 27 63 - Max 0.5 5.3 1 4200R/L 18 200 80 24 14 - 40 120 Max 0.5 5.5 2 4250R/L 24 250 120 24 14 - 40 170 Max 0.5 7.7 2 4315R/L 30 315 180 30 18 - 40 230 Max 0.5 10.5 2 4355R/L 34 355 220 30 18 - 40 270 Max 0.5 13 2 4400R/L 38 400 250 30 18 - 40 300 Max 0.5 16 2 4450R/L 44 450 300 30 18 - 40 350 Max 0.5 19 2 5450R/L 44 450 300 30 18 - 40 350 7 21 2 Stock item ( Available Inserts SPEN-WC Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SPEN 120416-WC E19 0 Available Arbors Designation Arbors PPH 4125R/L NT DD(M/U)-FMA38.1-nn - 4160R/L NT DD(M/U)-FMA50.8-nn - 4200R/L APR20C 4250R/L APR25C 4315R/L APR315 4355R/L APR355 4400R/L APR400 4450R/L APR450 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 140 230 0.05 0.30 PC6510 K 135 220 0.10 0.30 H01 50 90 0.10 0.30 G10E ( Parts Specification Wedge Wedge Screw Wrench 0125 0450 WPPH4R/L DHA0821F HW40 Milling 314 Assembling Available Inserts E19 Available Arborsandbolt E318 E320
