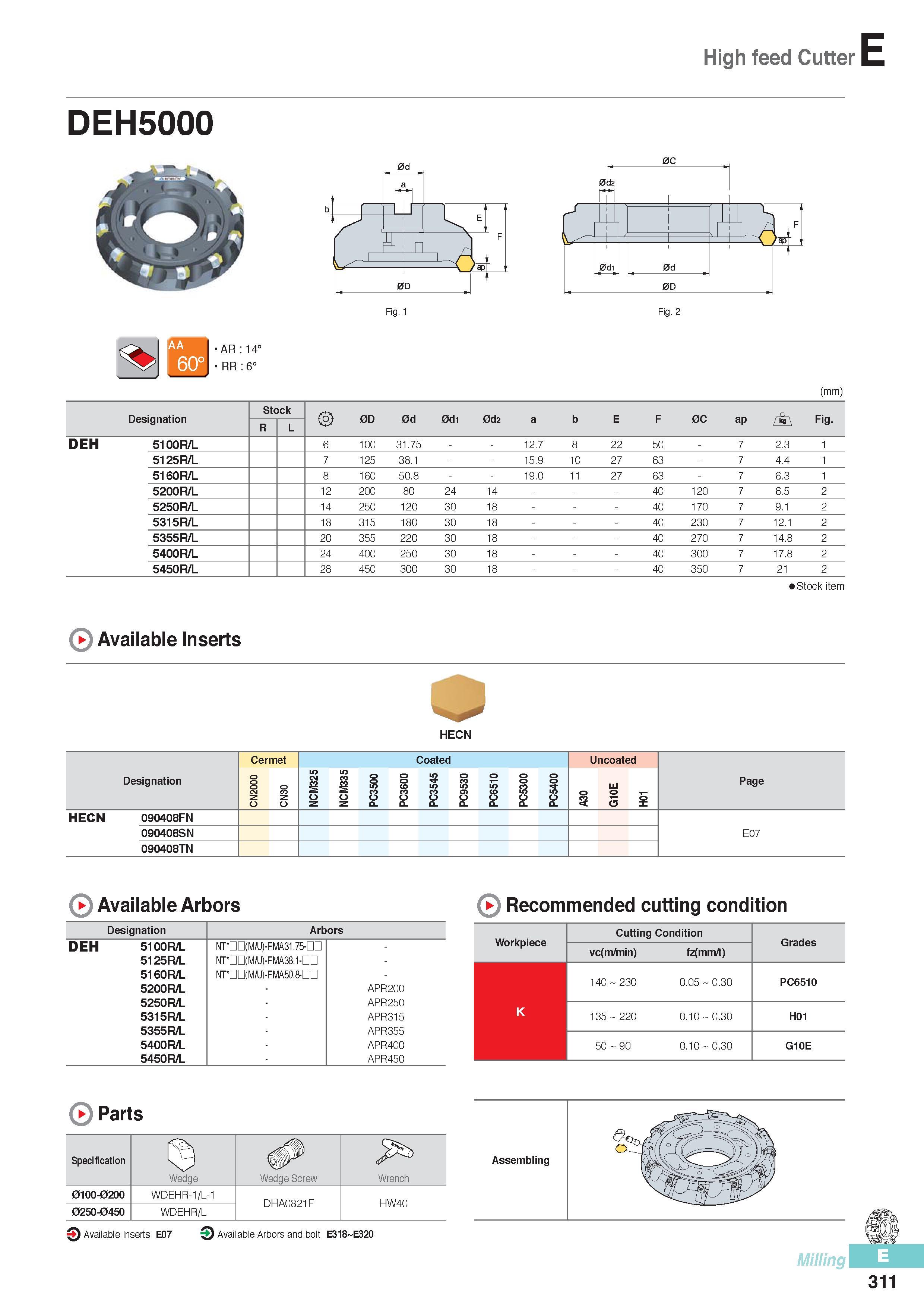

High feed Cutter DEH5000 0d AR 14° 8ji RR 6° (mm) Designation Stock 0D 0d 0d1 0d2 a b E F 0C ap Fig. R L DEH 5100R/L 6 100 31.75 - 12.7 8 22 50 - 7 2.3 1 5125R/L 7 125 38.1 - 15.9 10 27 63 - 7 4.4 1 5160R/L 8 160 50.8 - 19.0 11 27 63 - 7 6.3 1 5200R/L 12 200 80 24 14 - 40 120 7 6.5 2 5250R/L 14 250 120 30 18 - 40 170 7 9.1 2 5315R/L 18 315 180 30 18 - 40 230 7 12.1 2 5355R/L 20 355 220 30 18 - 40 270 7 14.8 2 5400R/L 24 400 250 30 18 - 40 300 7 17.8 2 5450R/L 28 450 300 30 18 - 40 350 7 21 2 Stock item ( Available Inserts HECN Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 HECN 090408FN 090408SN E07 090408TN ( Available Arbors Designation Arbors DEH 5100R/L NT nD(M/U)-FMA31.75-nn - 5125R/L NT nD(M/U)-FMA38.1-nn - 5160R/L NT nD(M/U)-FMA50.8-nn - 5200R/L APR20C 5250R/L APR25C 5315R/L APR315 5355R/L APR355 5400R/L APR400 5450R/L APR450 ( Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 140 230 0.05 0.30 PC6510 K 135 220 0.10 0.30 H01 50 90 0.10 0.30 G10E ( Parts Specification (J Wedge Wedge Screw Wrench 0100-0200 WDEHR-1/L-1 DHA0821F HW40 0250-0450 WDEHR/L Available Inserts E07 Available Arborsandbolt E318 E320 Milling
