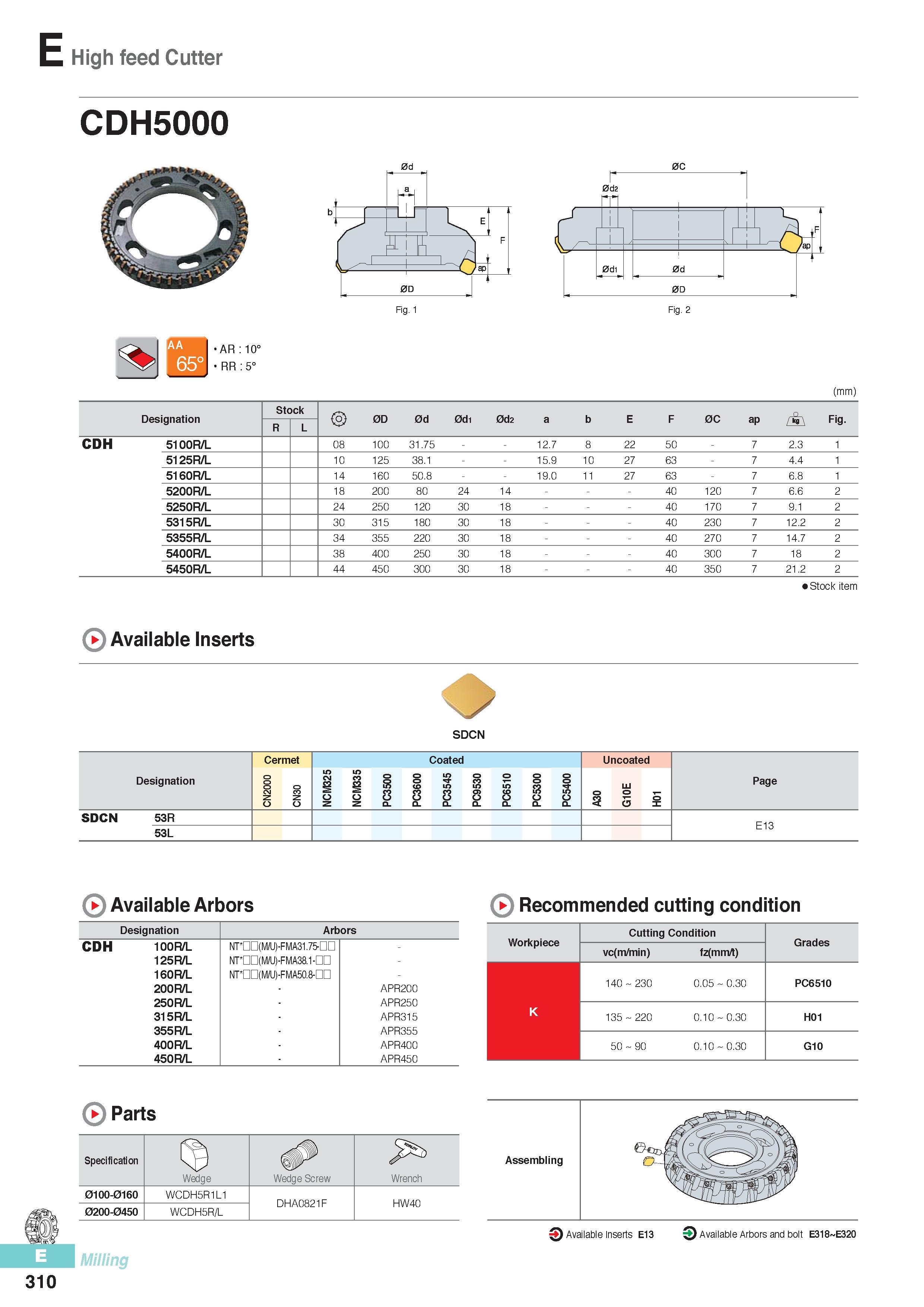

High feed Cutter CDH5000 AR 10° l I RR 5° (mm) Designation Stock 0D 0d 0d1 0d2 a b E F 0C ap A Fig. R L CDH 5100R/L 08 100 31.75 12.7 8 22 50 7 2.3 1 5125R/L 10 125 38.1 15.9 10 27 63 7 4.4 1 5160R/L 14 160 50.8 19.0 11 27 63 7 6.8 1 5200R/L 18 200 80 24 14 - 40 120 7 6.6 2 5250R/L 24 250 120 30 18 - 40 170 7 9.1 2 5315R/L 30 315 180 30 18 - 40 230 7 12.2 2 5355R/L 34 355 220 30 18 - 40 270 7 14.7 2 5400R/L 38 400 250 30 18 - 40 300 7 18 2 5450R/L 44 450 300 30 18 - 40 350 7 21.2 2 0 Available Inserts Stock item SDCN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SDCN 53R E13 53L 0 Available Arbors Designation Arbors CDH 100R/L NT nD(M/U)-FMA31.75-nn - 125R/L NT nD(M/U)-FMA38.1-nn - 160R/L NT nD(M/U)-FMA50.8-nn - 200R/L APR20C 250R/L APR25C 315R/L APR315 355R/L APR355 400R/L APR400 450R/L APR450 0 Recommended cutting condition Workpiece Cutting Condition Grades vc(m/min) fz(mm/t) 140 230 0.05 0.30 PC6510 K 135 220 0.10 0.30 H01 50 90 0.10 0.30 G10 310 0 Parts Specification Wedge Wedge Screw Wrench 0100-0160 WCDH5R1L1 DHA0821F HW40 0200-0450 WCDH5R/L Milling
