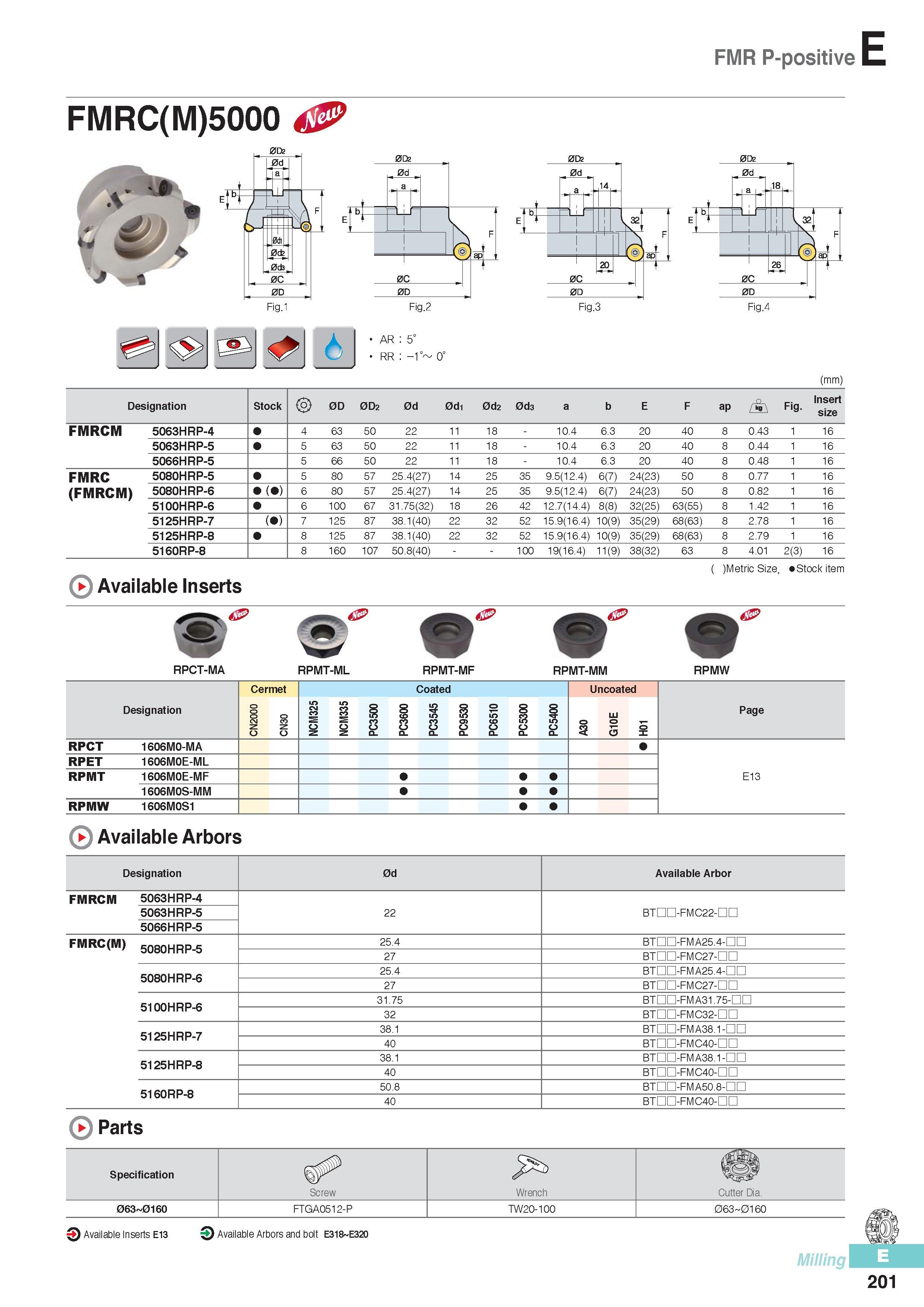

FMR P-positive 0D2 002 AR 5° RR -1° 0° (mm) Designation Stock 0D 0D2 0d 0di 0d2 0d3 a b E F ap Fig. Insert size FMRCM 5063HRP-4 4 63 50 22 11 18 - 1 0.4 6.3 20 40 8 0.43 1 16 5063HRP-5 5 63 50 22 11 18 - 1 0.4 6.3 20 40 8 0.44 1 16 5066HRP-5 5 66 50 22 11 18 - 1 0.4 6.3 20 40 8 0.48 1 16 FMRC 5080HRP-5 5 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 24(23) 50 8 0.77 1 16 (FMRCM) 5080HRP-6 ( ) 6 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 24(23) 50 8 0.82 1 16 5100HRP-6 6 100 67 31.75(32) 18 26 42 12.7(14.4) 8(8) 32(25) 63(55) 8 1.42 1 16 5125HRP-7 ( ) 7 125 87 38.1(40) 22 32 52 15.9(16.4) 10(9) 35(29) 68(63) 8 2.78 1 16 5125HRP-8 8 125 87 38.1(40) 22 32 52 15.9(16.4) 10(9) 35(29) 68(63) 8 2.79 1 16 5160RP-8 8 160 107 50.8(40) 100 19(16.4) 11(9) 38(32) 63 8 4.01 2(3) 16 Available Inserts ( )MetricSize, Stock item RPCT-MA RPMT-ML RPMT-MF RPMT-MM RPMW Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 RPCT 1606M0-MA RPET 1606M0E-ML RPMT 1606M0E-MF E13 1606M0S-MM RPMW 1606M0S1 Available Arbors Designation 0d Available Arbor FMRCM 5063HRP-4 22 BTDD-FMC22-DC 5063HRP-5 5066HRP-5 FMRC(M) 5080HRP-5 25.4 BTHO-FMA25.4-HD 27 BTnn-FMC27-nn 5080HRP-6 25.4 BTHO-FMA25.4-HD 27 BTnn-FMC27-nn 5100HRP-6 31.75 BTHO-FMA31.75-HD 32 BTnn-FMC32-nn 5125HRP-7 38.1 BTHO-FMA38.1-HD 40 BTnn-FMC4o-nn 5125HRP-8 38.1 BTHO-FMA38.1-HD 40 BTnn-FMC4o-nn 5160RP-8 50.8 BTHO-FMA50.8-HD 40 BTnn-FMC4o-nn Parts Specification Screw Wrench Cutter Dia. 063 0160 FTGA0512-P TW20-100 063 0160 0 Available Inserts E13 O Available Arbors and bolt E318 E320 Milling 201
