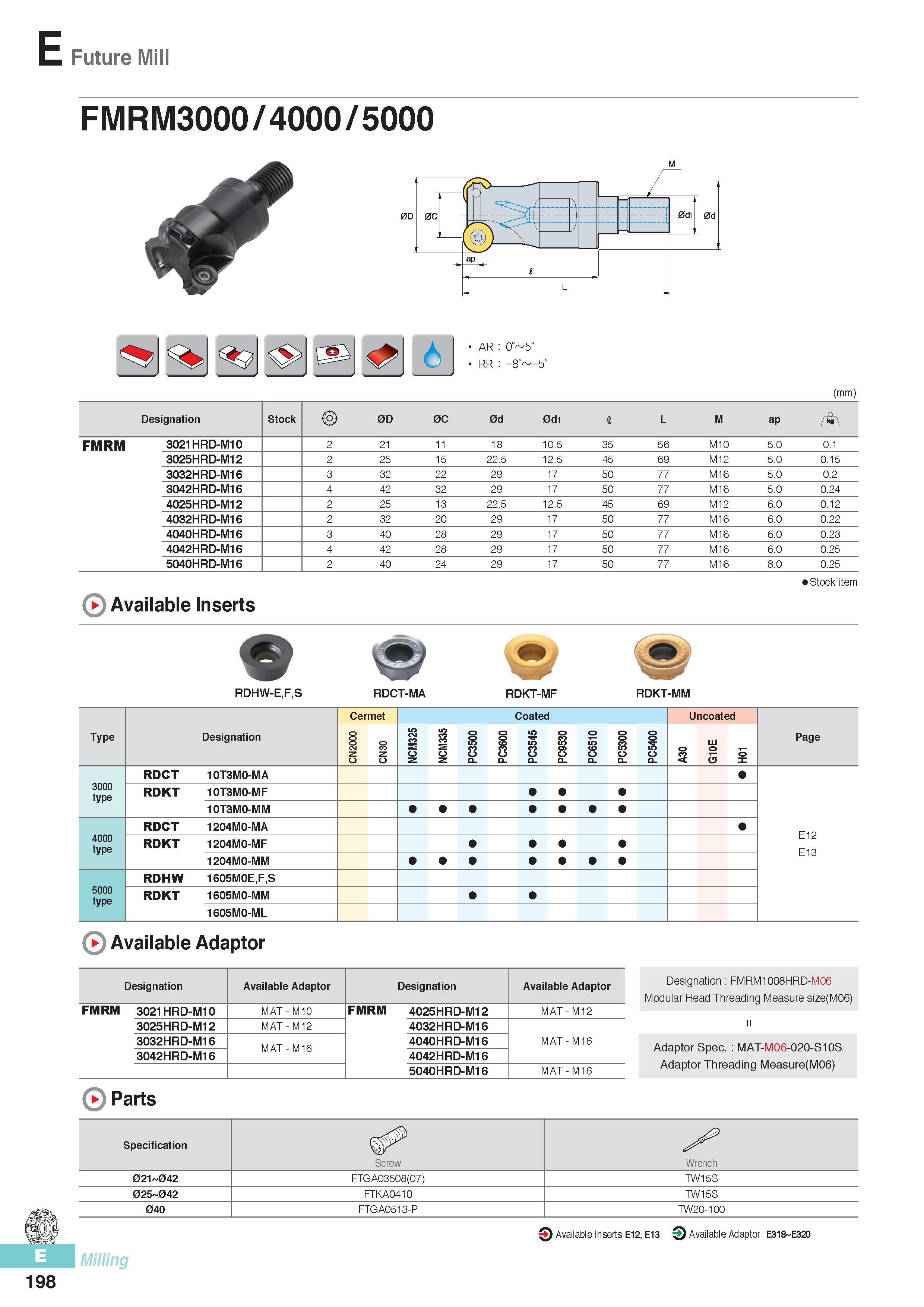

Future Mill AR 0° 5‘ RR -8° -5° (mm) Designation Stock 0D 0C 0d 0d1 I L M ap A FMRM 3021HRD-M10 2 21 11 18 10.5 35 56 M10 5.0 0.1 3025HRD-M12 2 25 15 22.5 12.5 45 69 M12 5.0 0.15 3032HRD-M16 3 32 22 29 17 50 77 M16 5.0 0.2 3042HRD-M16 4 42 32 29 17 50 77 M16 5.0 0.24 4025HRD-M12 2 25 13 22.5 12.5 45 69 M12 6.0 0.12 4032HRD-M16 2 32 20 29 17 50 77 M16 6.0 0.22 4040HRD-M16 3 40 28 29 17 50 77 M16 6.0 0.23 4042HRD-M16 4 42 28 29 17 50 77 M16 6.0 0.25 5040HRD-M16 2 40 24 29 17 50 77 M16 8.0 0.25 Stock item 0 Available Inserts RDHW-E,F,S RDCT-MA RDKT-MF RDKT-MM Type Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X 3000 type RDCT 10T3M0-MA E12 E13 RDKT 10T3M0-MF 10T3M0-MM 4000 type RDCT 1204M0-MA RDKT 1204M0-MF 1204M0-MM RDHW 1605M0E,F,S 5000 type RDKT 1605M0-MM 1605M0-ML Available Adaptor Designation Available Adaptor Designation Available Adaptor FMRM 3021HRD-M10 MAT-M10 FMRM 4025HRD-M12 MAT-M12 3025HRD-M12 MAT-M12 4032HRD-M16 MAT-M16 3032HRD-M16 MAT-M16 4040HRD-M16 3042HRD-M16 4042HRD-M16 5040HRD-M16 MAT-M16 Designation FMRM1008HRD-M06 Modular Head Threading Measure size(M06) AdaptorSpec. :MAT-M06-020-S10S AdaptorThreading Measure(M06) Parts Specification Screw Wrench 021 042 FTGA03508(07) TW15S 025 042 FTKA0410 TW15S 040 FTGA0513-P TW20-100 0 Available Inserts E12, E13 0 Available Adaptor E318 E320 Milling 198
