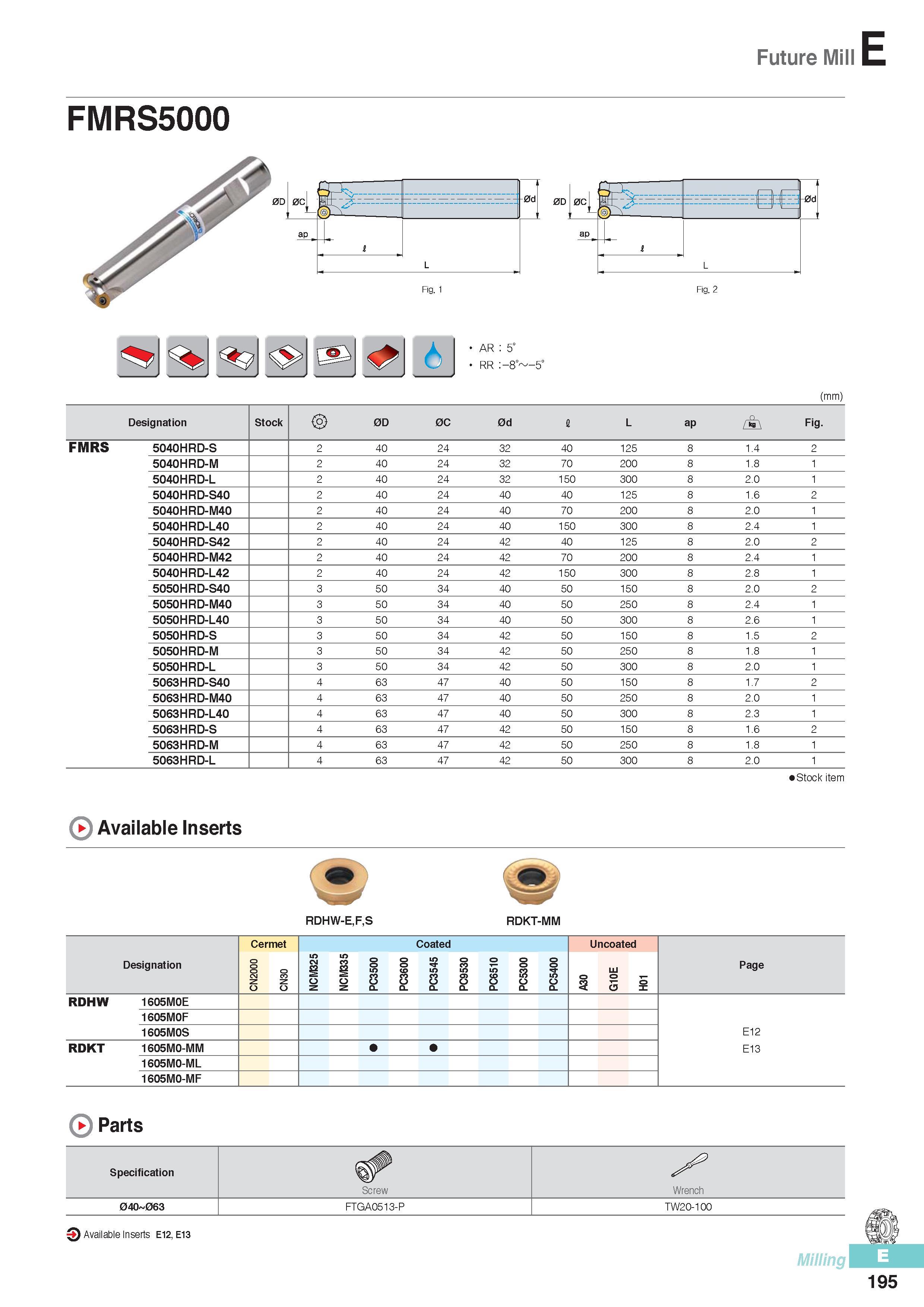

Future Mill FMRS5000 Fig. 1 0cj "O pajL'S "' aP r J L 0D 0C Fig. 2 & 6 AR 5° RR :-8° (mm) Designation Stock 0D 0C 0d I L ap Fig. FMRS 5040HRD-S 2 40 24 32 40 125 8 1.4 2 5040HRD-M 2 40 24 32 70 200 8 1.8 1 5040HRD-L 2 40 24 32 150 300 8 2.0 1 5040HRD-S40 2 40 24 40 40 125 8 1.6 5040HRD-M40 2 40 24 40 70 200 8 2.0 1 5040HRD-L40 2 40 24 40 150 300 8 2.4 1 5040HRD-S42 2 40 24 42 40 125 8 2.0 5040HRD-M42 2 40 24 42 70 200 8 2.4 1 5040HRD-L42 2 40 24 42 150 300 8 2.8 1 5050HRD-S40 3 50 34 40 50 150 8 2.0 5050HRD-M40 3 50 34 40 50 250 8 2.4 1 5050HRD-L40 3 50 34 40 50 300 8 2.6 1 5050HRD-S 3 50 34 42 50 150 8 1.5 5050HRD-M 3 50 34 42 50 250 8 1.8 1 5050HRD-L 3 50 34 42 50 300 8 2.0 1 5063HRD-S40 4 63 47 40 50 150 8 1.7 5063HRD-M40 4 63 47 40 50 250 8 2.0 1 5063HRD-L40 4 63 47 40 50 300 8 2.3 1 5063HRD-S 4 63 47 42 50 150 8 1.6 5063HRD-M 4 63 47 42 50 250 8 1.8 1 5063HRD-L 4 63 47 42 50 300 8 2.0 1 Stock item RDHW-E,F,S RDKT-MM Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 OOt'SOd o 3 G10E 01 X RDHW 1605M0E 1605M0F 1605M0S E12 RDKT 1605M0-MM E13 1605M0-ML 1605M0-MF >) Parts Specification Screw Wrench 040 063 FTGA0513-P TW20-100 3 Available Inserts E12, E13 Milling 195
