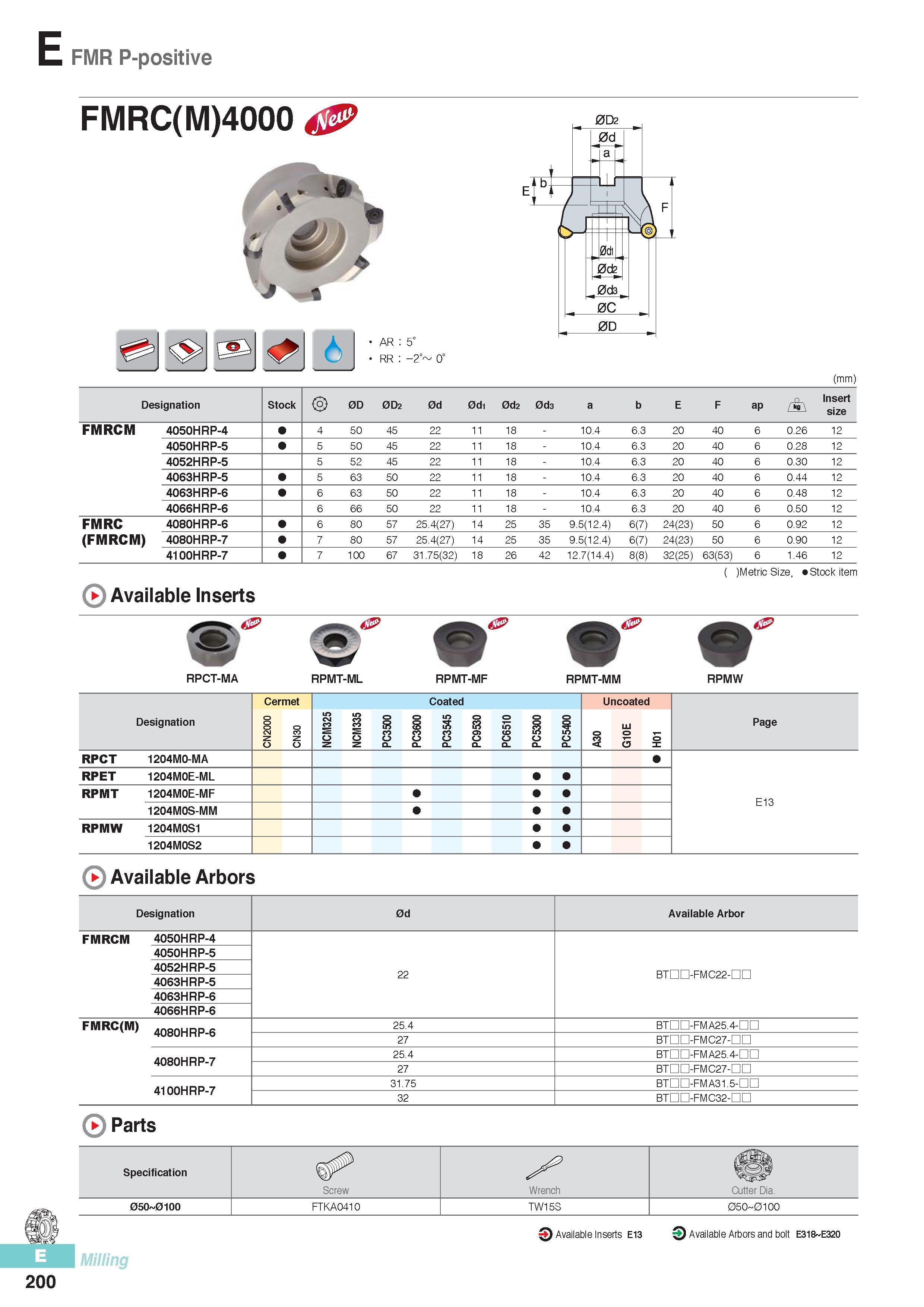

FMR P-positive FMRC(M)4000 AR 5° RR -2° 0° (mm) Designation Stock 0D 0D2 0d 0di 0d2 0d3 a b E F ap Insert size FMRCM 4050HRP-4 4 50 45 22 11 18 10.4 6.3 20 40 6 0.26 12 4050HRP-5 5 50 45 22 11 18 10.4 6.3 20 40 6 0.28 12 4052HRP-5 5 52 45 22 11 18 10.4 6.3 20 40 6 0.30 12 4063HRP-5 5 63 50 22 11 18 10.4 6.3 20 40 6 0.44 12 4063HRP-6 6 63 50 22 11 18 10.4 6.3 20 40 6 0.48 12 4066HRP-6 6 66 50 22 11 18 10.4 6.3 20 40 6 0.50 12 FMRC 4080HRP-6 6 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 24(23) 50 6 0.92 12 (FMRCM) 4080HRP-7 7 80 57 25.4(27) 14 25 35 9.5(12.4) 6(7) 24(23) 50 6 0.90 12 4100HRP-7 7 100 67 31.75(32) 18 26 42 12.7(14.4) 8(8) 32(25) 63(53) 6 1.46 12 ( )MetricSize, Stock item Available Inserts RPCT-MA RPMT-ML RPMT-MF RPMT-MM RPMW Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page RPCT 1204M0-MA E13 RPET 1204M0E-ML RPMT 1204M0E-MF 1204M0S-MM RPMW 1204M0S1 1204M0S2 Available Arbors Designation 0d Available Arbor FMRCM 4050HRP-4 22 BTDD-FMC22-DC 4050HRP-5 4052HRP-5 4063HRP-5 4063HRP-6 4066HRP-6 FMRC(M) 4080HRP-6 25.4 BTHD-FMA25.4-HD 27 BTnn-FMC27-nn 4080HRP-7 25.4 BTHD-FMA25.4-HD 27 BTnn-FMC27-nn 4100HRP-7 31.75 BTHD-FMA31.5-HD 32 BTnn-FMC32-nn Parts Specification Screw Wrench Cutter Dia. 050 0100 FTKA0410 TW15S 050 0100 0 Available Inserts E13 3 Available Arbors and bolt E318 E320 Milling 200
