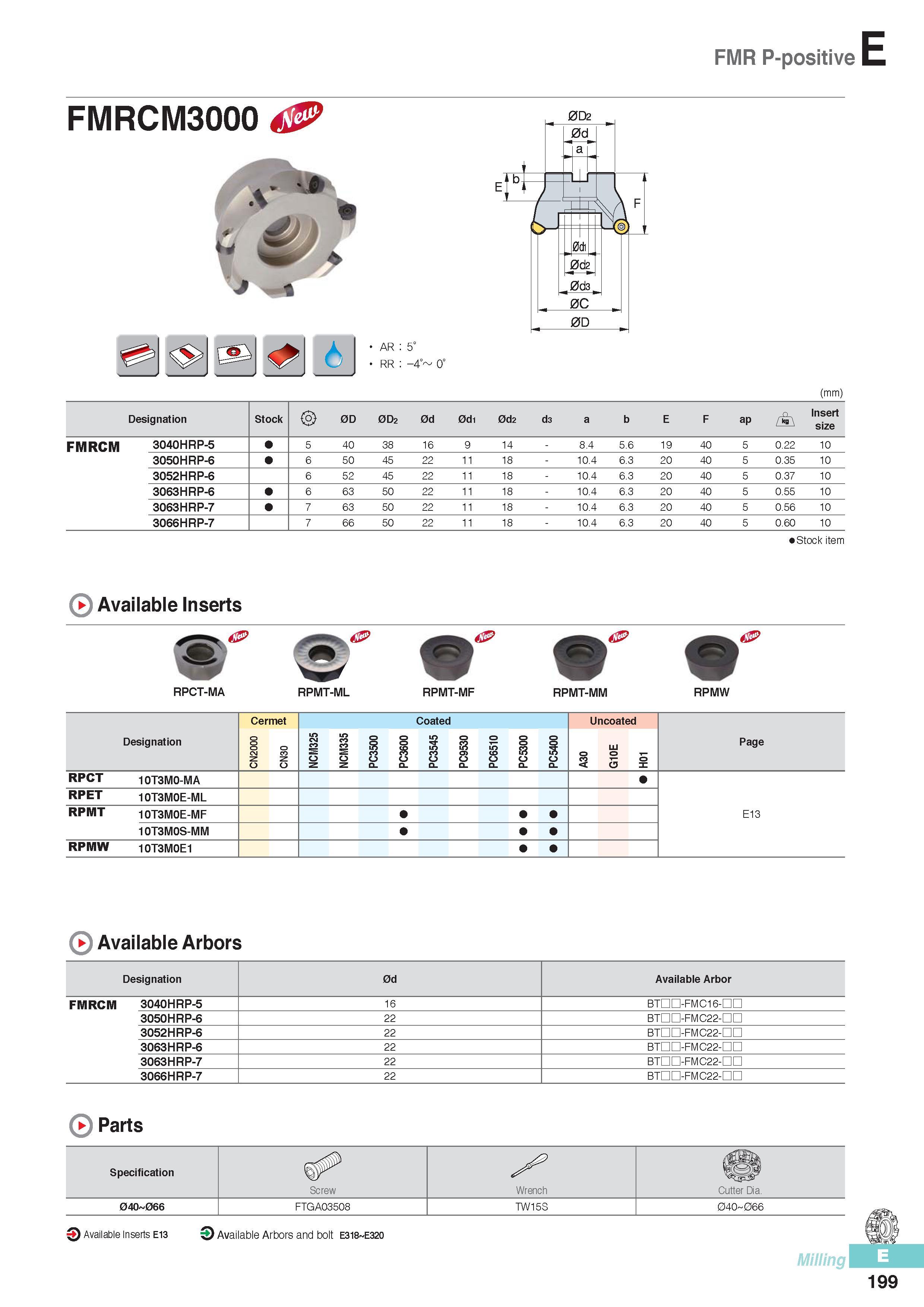

FMR P-positive FMRCM3000 AR 5° RR -4° 0° (mm) Designation Stock 0D 0D2 0d 0di 0d2 d3 a b E F ap Insert size FMRCM 3040HRP-5 5 40 38 16 9 14 8.4 5.6 19 40 5 0.22 10 3050HRP-6 6 50 45 22 11 18 10.4 6.3 20 40 5 0.35 10 3052HRP-6 6 52 45 22 11 18 10.4 6.3 20 40 5 0.37 10 3063HRP-6 6 63 50 22 11 18 10.4 6.3 20 40 5 0.55 10 3063HRP-7 7 63 50 22 11 18 10.4 6.3 20 40 5 0.56 10 3066HRP-7 7 66 50 22 11 18 10.4 6.3 20 40 5 0.60 10 Stock item 0 Available Inserts RPCT-MA RPMT-ML RPMT-MF RPMT-MM RPMW Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 RPCT 10T3M0-MA RPET 10T3M0E-ML RPMT 10T3M0E-MF E13 10T3M0S-MM RPMW 10T3M0E1 Available Arbors Designation 0d Available Arbor FMRCM 3040HRP-5 16 BTHD-FMC16-HD 3050HRP-6 22 BTnn-FMC22-nn 3052HRP-6 22 BTHD-FMC22-HD 3063HRP-6 22 BTnn-FMC22-nn 3063HRP-7 22 BTnn-FMC22-nn 3066HRP-7 22 BTnn-FMC22-nn >) Parts Specification Screw Wrench Cutter Dia. 040 066 FTGA03508 TW15S 040 066 Q Available Inserts E13 O Available Arbors and bolt E318 E320 Milling 199
