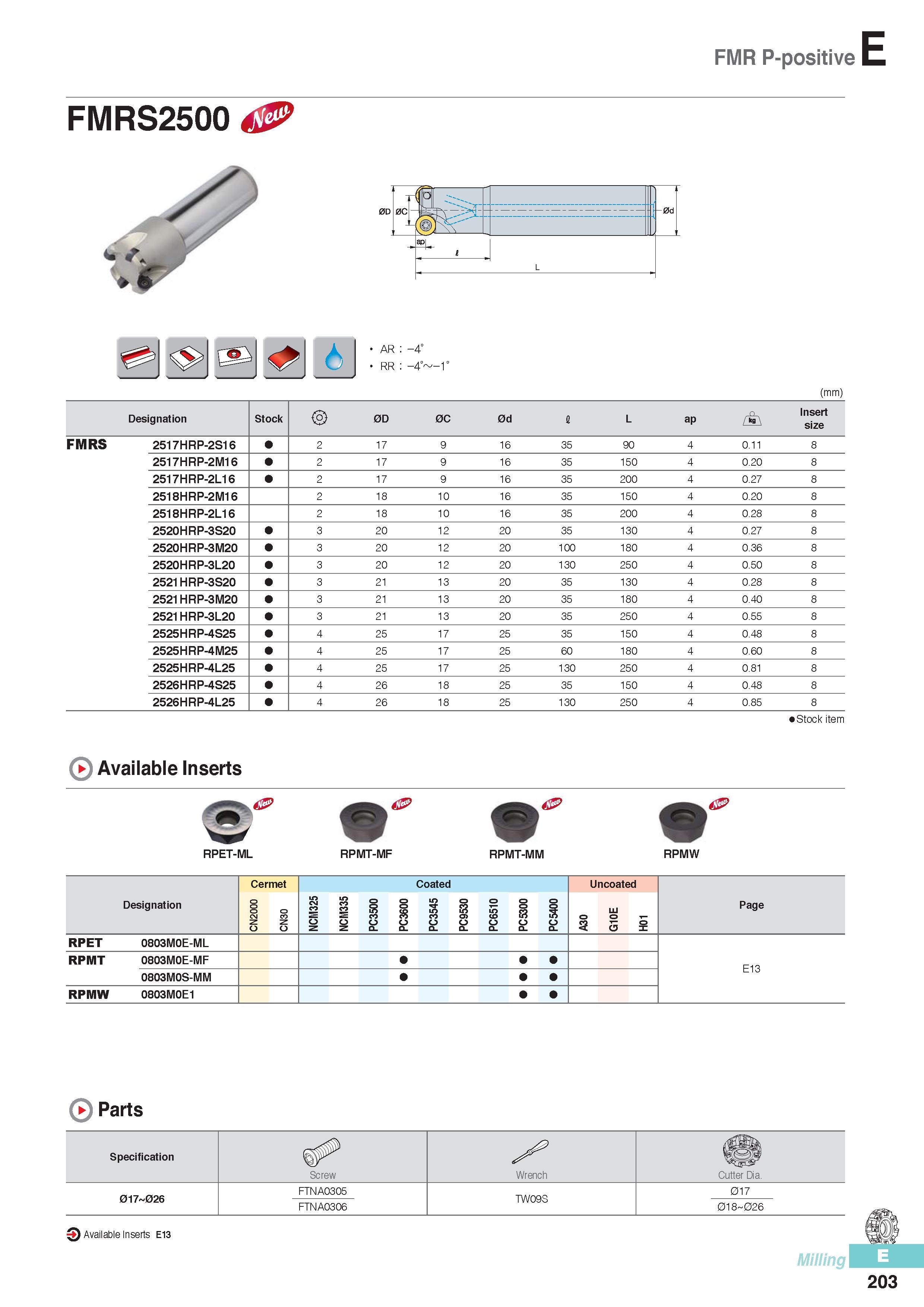

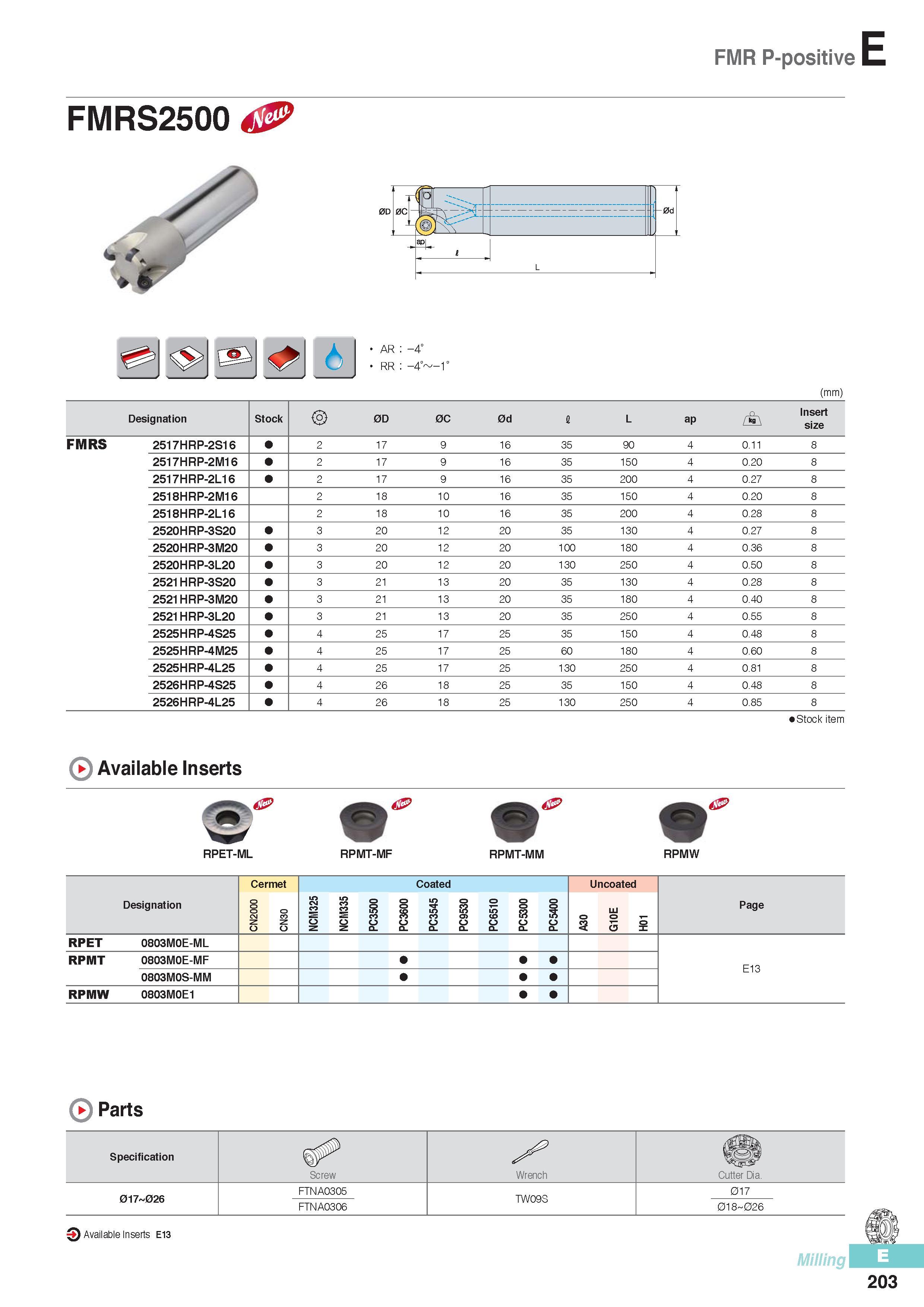

FMR P-positive & I AR -4° RR -4° (mm) Designation Stock 0D 0C 0d I L ap f+\ Insert size FMRS 2517HRP-2S16 2 17 9 16 35 90 4 0.11 8 2517HRP-2M16 2 17 9 16 35 150 4 0.20 8 2517HRP-2L16 2 17 9 16 35 200 4 0.27 8 2518HRP-2M16 2 18 10 16 35 150 4 0.20 8 2518HRP-2L16 2 18 10 16 35 200 4 0.28 8 2520HRP-3S20 3 20 12 20 35 130 4 0.27 8 2520HRP-3M20 3 20 12 20 1 180 4 0.36 8 2520HRP-3L20 3 20 12 20 130 250 4 0.50 8 2521HRP-3S20 3 21 13 20 35 130 4 0.28 8 2521HRP-3M20 3 21 13 20 35 180 4 0.40 8 2521HRP-3L20 3 21 13 20 35 250 4 0.55 8 2525HRP-4S25 4 25 17 25 35 150 4 0.48 8 2525HRP-4M25 4 25 17 25 60 180 4 0.60 8 2525HRP-4L25 4 25 17 25 1 30 250 4 0.81 8 2526HRP-4S25 4 26 18 25 35 150 4 0.48 8 2526HRP-4L25 4 26 18 25 1 30 250 4 0.85 8 Stock item >) Available Inserts W RPET-ML RPMT-MF RPMT-MM RPMW Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 RPET 0803M0E-ML RPMT 0803M0E-MF 0803M0S-MM RPMW 0803M0E1 Specification Screw Wrench Cutter Dia. 017 026 FTNA0305 TW09S 017 FTNA0306 018 026 3 Available Inserts E13 Milling 203
