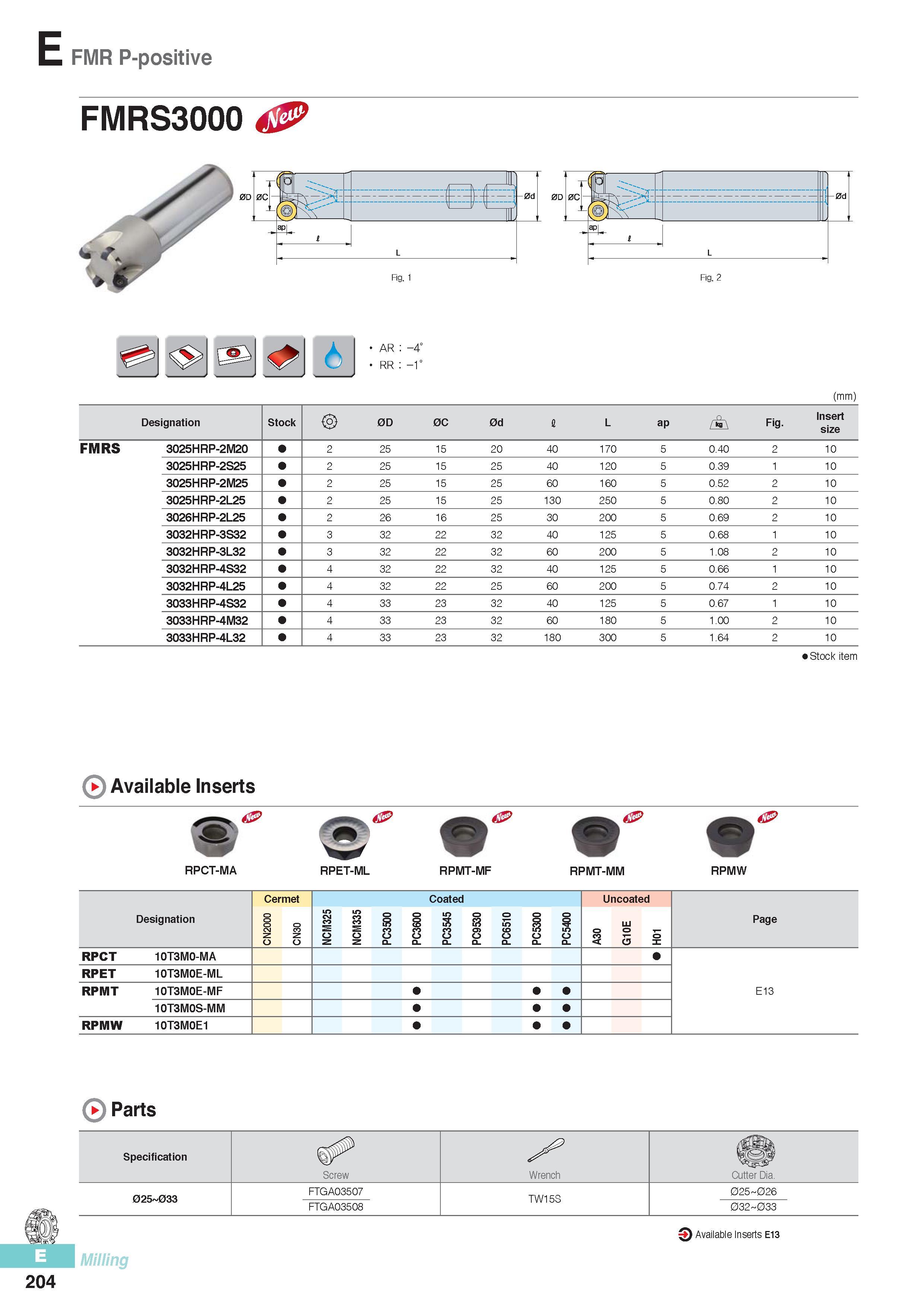

FMR P-positive FMRS3000 Fig. 1 Fig. 2 & 6 AR -4° RR -1° (mm) Designation Stock 0D 0C 0d I L ap Fig. Insert size FMRS 3025HRP-2M20 2 25 15 20 40 170 5 0.40 2 10 3025HRP-2S25 2 25 15 25 40 120 5 0.39 1 10 3025HRP-2M25 2 25 15 25 60 160 5 0.52 2 10 3025HRP-2L25 2 25 15 25 130 250 5 0.80 2 10 3026HRP-2L25 2 26 16 25 30 200 5 0.69 2 10 3032HRP-3S32 3 32 22 32 40 125 5 0.68 1 10 3032HRP-3L32 3 32 22 32 60 200 5 1.08 2 10 3032HRP-4S32 4 32 22 32 40 125 5 0.66 1 10 3032HRP-4L25 4 32 22 25 60 200 5 0.74 2 10 3033HRP-4S32 4 33 23 32 40 125 5 0.67 1 10 3033HRP-4M32 4 33 23 32 60 180 5 1.00 2 10 3033HRP-4L32 4 33 23 32 180 300 5 1.64 2 10 Stock item RPCT-MA RPET-ML RPMT-MF RPMT-MM RPMW Designation Cermet Coated Uncoated Page CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 RPCT 10T3M0-MA RPET 10T3M0E-ML RPMT 10T3M0E-MF E13 10T3M0S-MM RPMW 10T3M0E1 Parts Specification Upfl Screw Wrench Cutter Dia. 025 033 FTGA03507 TW15S 025 026 FTGA03508 032 033 0 Available Inserts E13 Milling 204
