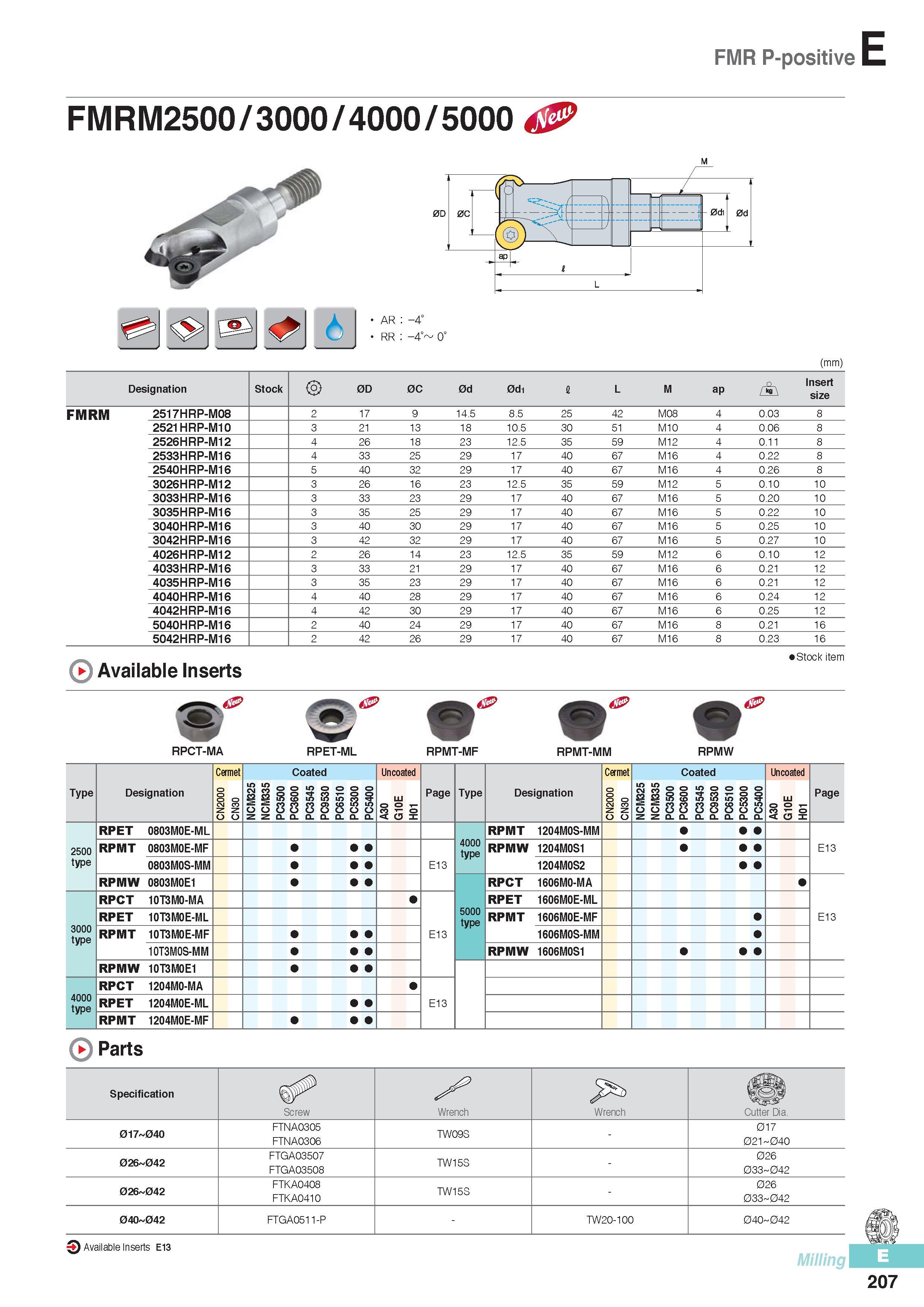

FMR P-positive FMRM2500/3000 /4000/5000 \ - 0dl 0d J AR -4° RR -4° 0° (mm) Designation Stock 0D 0C 0d 0di I L M ap aSa Insert size FMRM 2517HRP-M08 2 17 9 14.5 8.5 25 42 M08 4 0.03 8 2521HRP-M10 3 21 13 18 10.5 30 51 M10 4 0.06 8 2526HRP-M12 4 26 18 23 12.5 35 59 M12 4 0.11 8 2533HRP-M16 4 33 25 29 17 40 67 M16 4 0.22 8 2540HRP-M16 5 4O 32 29 17 40 67 M16 4 0.26 8 3026HRP-M12 3 26 16 23 12.5 35 59 M12 5 0.10 10 3033HRP-M16 3 33 23 29 17 40 67 M16 5 0.20 10 3035HRP-M16 3 35 25 29 17 40 67 M16 5 0.22 10 3040HRP-M16 3 4O 30 29 17 40 67 M16 5 0.25 10 3042HRP-M16 3 42 32 29 17 40 67 M16 5 0.27 10 4026HRP-M12 2 26 14 23 12.5 35 59 M12 6 0.10 12 4033HRP-M16 3 33 21 29 17 40 67 M16 6 0.21 12 4035HRP-M16 3 35 23 29 17 40 67 M16 6 0.21 12 4040HRP-M16 4 4O 28 29 17 40 67 M16 6 0.24 12 4042HRP-M16 4 42 30 29 17 40 67 M16 6 0.25 12 5040HRP-M16 2 4O 24 29 17 40 67 M16 8 0.21 16 5042HRP-M16 2 42 26 29 17 40 67 M16 8 0.23 16 Available Inserts Stock item RPCT-MA RPET-ML RPMT-MF RPMT-MM RPMW Type Designation Cermet Coated Uncoated Page Type Designation Cermet Coated Uncoated Page CN2000 0 3 N o i C z NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 UJ OOt- 310
