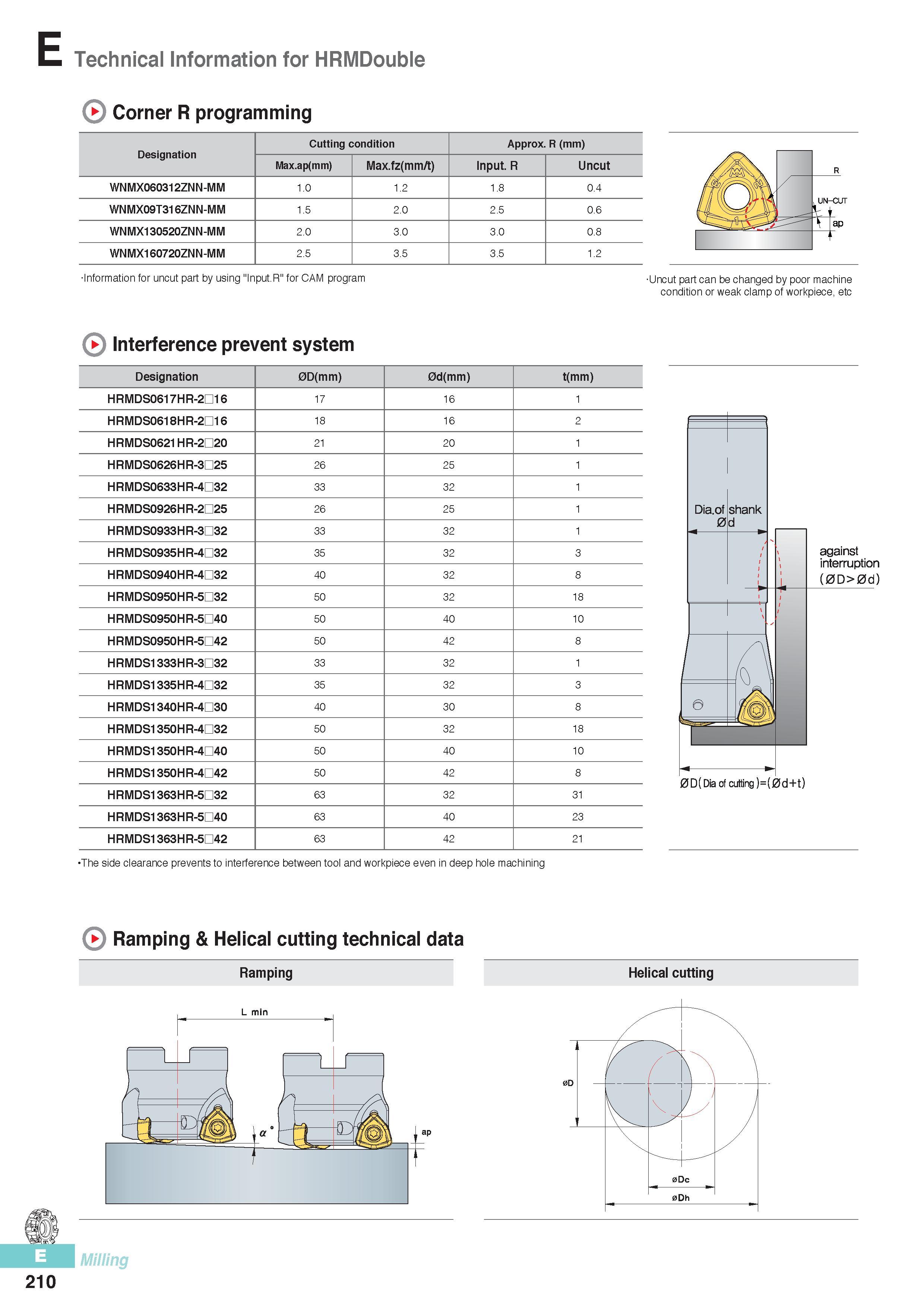

E Technical Information for HRMDouble Corner R programming Designation Cutting condition Approx. R (mm) Max.ap(mm) Max.fz(mm/t) Input. R Uncut WNMX060312ZNN-MM 1.0 1.2 1.8 0.4 WNMX09T316ZNN-MM 1.5 2.0 2.5 0.6 WNMX130520ZNN-MM 2.0 3.0 3.0 0.8 WNMX160720ZNN-MM 2.5 3.5 3.5 1.2 Information for uncut part by using "Input.R" for CAM program Uncut part can be changed by poor machine condition or weak clamp of workpiece, etc Interference prevent system Designation 0D(mm) 0d(mm) t(mm) HRMDS0617HR-2D16 17 16 HRMDS0618HR-2D16 18 16 2 HRMDS0621HR-2D20 21 20 HRMDS0626HR-3D25 26 25 HRMDS0633HR-4D32 33 32 HRMDS0926HR-2D25 26 25 HRMDS0933HR-3D32 33 32 HRMDS0935HR-4D32 35 32 3 HRMDS0940HR-4D32 40 32 8 HRMDS0950HR-5D32 50 32 18 HRMDS0950HR-5D40 50 40 10 HRMDS0950HR-5D42 50 42 8 HRMDS1333HR-3D32 33 32 HRMDS1335HR-4D32 35 32 3 HRMDS1340HR-4D30 40 30 8 HRMDS1350HR-4D32 50 32 18 HRMDS1350HR-4D40 50 40 10 HRMDS1350HR-4D42 50 42 8 HRMDS1363HR-5D32 63 32 31 HRMDS1363HR-5D40 63 40 23 HRMDS1363HR-5D42 63 42 21 against interruption (0D>0d) 0D(Dia of cutting )=(0d+t) The side clearance prevents to interference between tool and workpiece even in deep hole machining Ramping & Helical cutting technical data Ramping Milling Helical cutting 210
