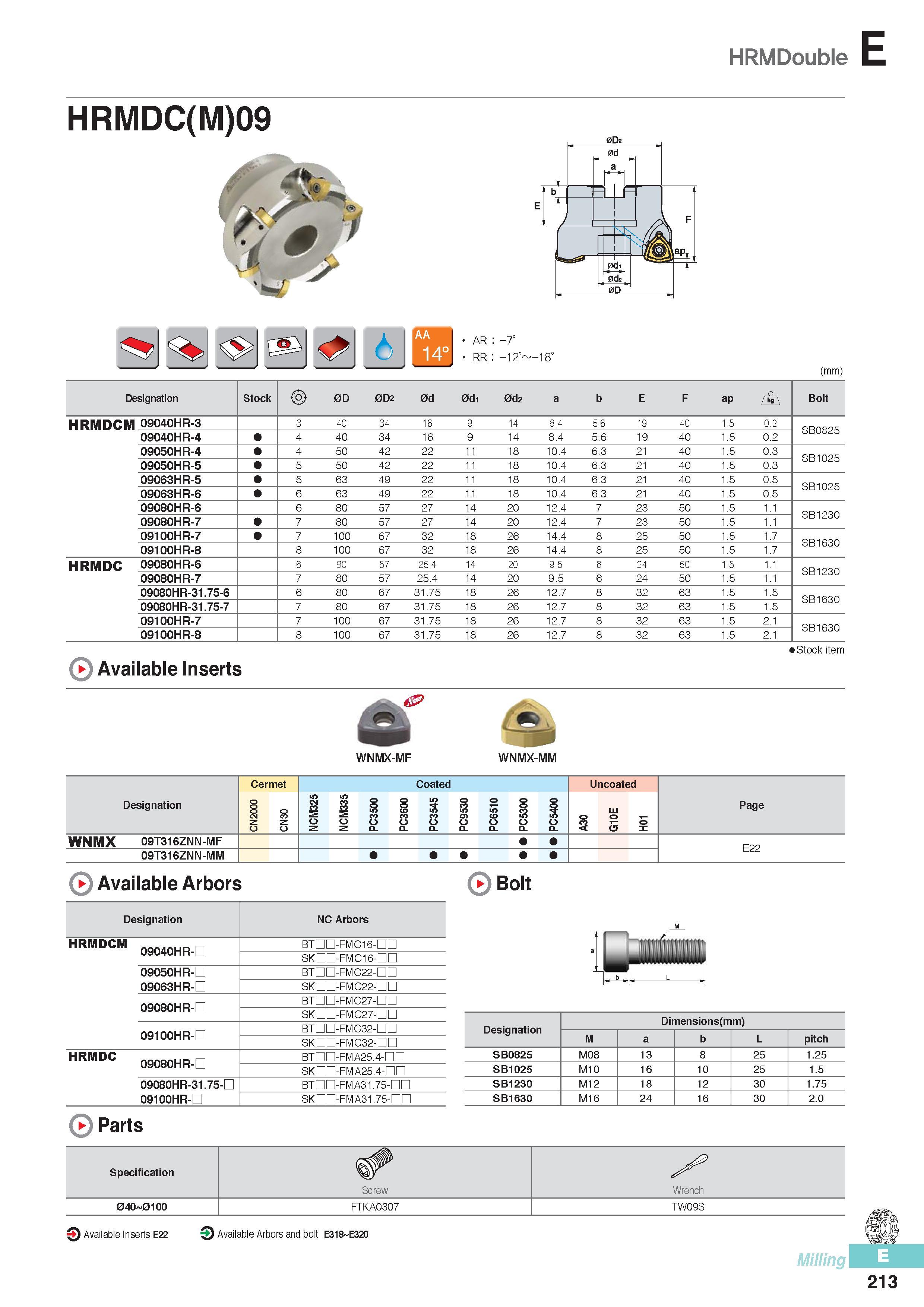

600 Каталог KORLOY 2016 Металлорежущий инструмент и станочная оснастка ENG Стр.E213

Каталог KORLOY 2016 Инструмент и оснастка Стр. E213 0600 ENG Lab2u

HRMDouble E HRMDC(M)09 AR -7° RR -12° -18' (mm) Designation Stock 0D 0D2 0d 0d1 0d2 a b E F ap f+\ Bolt HRMDCM 09040HR-3 3 40 34 16 9 14 8.4 5.6 19 40 1.5 0.2 SB0825 09040HR-4 4 40 34 16 9 14 8.4 5.6 19 40 1.5 0.2 09050HR-4 4 50 42 22 11 18 10.4 6.3 21 40 1.5 0.3 SB1025 09050HR-5 5 50 42 22 11 18 10.4 6.3 21 40 1.5 0.3 09063HR-5 5 63 49 22 11 18 10.4 6.3 21 40 1.5 0.5 SB1025 09063HR-6 6 63 49 22 11 18 10.4 6.3 21 40 1.5 0.5 09080HR-6 6 80 57 27 14 20 12.4 7 23 50 1.5 1.1 SB1230 09080HR-7 7 80 57 27 14 20 12.4 7 23 50 1.5 1.1 09100HR-7 7 100 67 32 18 26 14.4 8 25 50 1.5 1.7 SB1630 09100HR-8 8 100 67 32 18 26 14.4 8 25 50 1.5 1.7 HRMDC 09080HR-6 6 80 57 25.4 14 20 9.5 6 24 50 1.5 1.1 SB1230 09080HR-7 7 80 57 25.4 14 20 9.5 6 24 50 1.5 1.1 09080HR-31.75-6 6 80 67 31.75 18 26 12.7 8 32 63 1.5 1.5 SB1630 09080HR-31.75-7 7 80 67 31.75 18 26 12.7 8 32 63 1.5 1.5 09100HR-7 7 100 67 31.75 18 26 12.7 8 32 63 1.5 2.1 SB1630 09100HR-8 8 100 67 31.75 18 26 12.7 8 32 63 1.5 2.1 ( Available Inserts Stock item WNMX-MF WNMX-MM Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page WNMX 09T316ZNN-MF E22 09T316ZNN-MM ( Available Arbors ( Bolt Designation NC Arbors HRMDCM m 09040HR-D BTHD-FMC16-HD SKHO-FMC16-HD 09050HR-D BTHD-FMC22-HD 09063HR-D SKHO-FMC22-HD 09080HR-D BTHD-FMC27-HD SKHO-FMC27-HD 09100HR-D BTHD-FMC32-HD SKHO-FMC32-HD HRMDC rtrtrtnAun I 09080HR-D BTHD-FMA25.4-HD SKDD-FMA25.4-nn 09080HR-31.75-D BTDn-FMA31.75-nn 09100HR-D SKDD-FMA31.75-nn Designation Dimensions (mm) M a b L pitch SB0825 M08 13 8 25 1.25 SB1025 M10 16 10 25 1.5 SB1230 M12 18 12 30 1.75 SB1630 M16 24 16 30 2.0 ( Parts Specification Screw Wrench 040 0100 FTKA0307 TW09S 3 Available Inserts E22 O Available Arbors and bolt E318 E320 Milling 213
