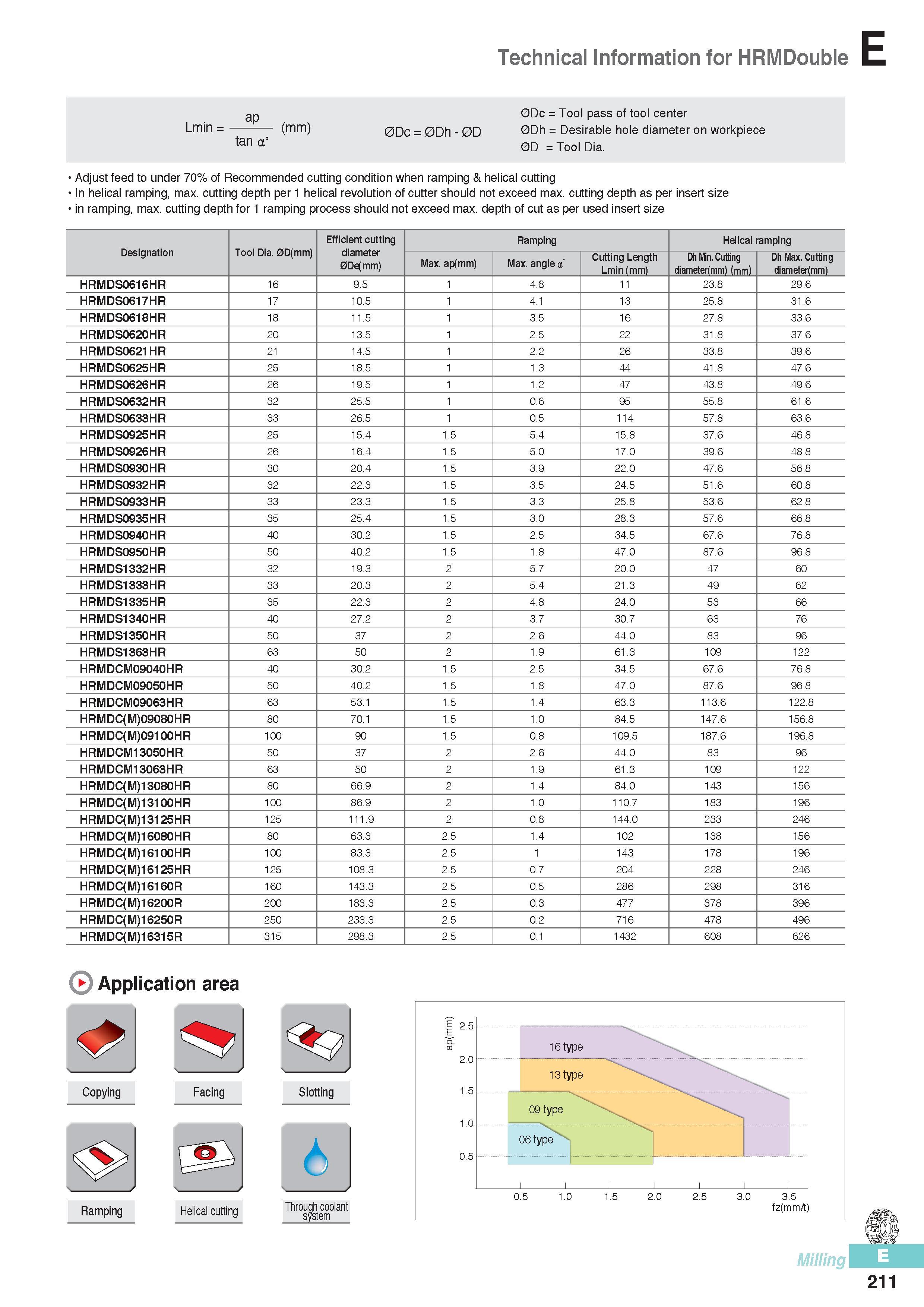

Technical Information for HRMDouble ap 0Dc = Toolpassoftoolcenter Lmin = - (mm) 0qc 0Q 0Dh = Desirable hole diameter on workpiece tan a 0D = Tool Dia. Adjust feed to under 70% of Recommended cutting condition when ramping & helical cutting In helical ramping, max. cutting depth per 1 helical revolution of cutter should not exceed max. cutting depth as per insert size in ramping, max. cutting depth for 1 ramping process should not exceed max. depth of cut as per used insert size Designation Tool Dia. 0D(mm) Efficient cutting diameter 0De(mm) Ramping Helical ramping Max. ap(mm) Max. angle a Cutting Length Lmin (mm) Dh Min. Cutting diameter(mm) (mm) Dh Max. Cutting diameter(mm) HRMDS0616HR 16 9.5 4.8 11 23.8 29.6 HRMDS0617HR 17 10.5 4.1 13 25.8 31.6 HRMDS0618HR 18 11.5 3.5 16 27.8 33.6 HRMDS0620HR 20 13.5 2.5 22 31.8 37.6 HRMDS0621HR 21 14.5 2.2 26 33.8 39.6 HRMDS0625HR 25 18.5 1.3 44 41.8 47.6 HRMDS0626HR 26 19.5 1.2 47 43.8 49.6 HRMDS0632HR 32 25.5 0.6 95 55.8 61.6 HRMDS0633HR 33 26.5 0.5 114 57.8 63.6 HRMDS0925HR 25 15.4 1.5 5.4 15.8 37.6 46.8 HRMDS0926HR 26 16.4 1.5 5.0 17.0 39.6 48.8 HRMDS0930HR 30 20.4 1.5 3.9 22.0 47.6 56.8 HRMDS0932HR 32 22.3 1.5 3.5 24.5 51.6 60.8 HRMDS0933HR 33 23.3 1.5 3.3 25.8 53.6 62.8 HRMDS0935HR 35 25.4 1.5 3.0 28.3 57.6 66.8 HRMDS0940HR 40 30.2 1.5 2.5 34.5 67.6 76.8 HRMDS0950HR 50 40.2 1.5 1.8 47.0 87.6 96.8 HRMDS1332HR 32 19.3 2 5.7 20.0 47 60 HRMDS1333HR 33 20.3 2 5.4 21.3 49 62 HRMDS1335HR 35 22.3 2 4.8 24.0 53 66 HRMDS1340HR 40 27.2 2 3.7 30.7 63 76 HRMDS1350HR 50 37 2 2.6 44.0 83 96 HRMDS1363HR 63 50 2 1.9 61.3 109 122 HRMDCM09040HR 40 30.2 1.5 2.5 34.5 67.6 76.8 HRMDCM09050HR 50 40.2 1.5 1.8 47.0 87.6 96.8 HRMDCM09063HR 63 53.1 1.5 1.4 63.3 113.6 122.8 HRMDC(M)09080HR 80 70.1 1.5 1.0 84.5 147.6 156.8 HRMDC(M)09100HR 100 90 1.5 0.8 109.5 187.6 196.8 HRMDCM13050HR 50 37 2 2.6 44.0 83 96 HRMDCM13063HR 63 50 2 1.9 61.3 109 122 HRMDC(M)13080HR 80 66.9 2 1.4 84.0 143 156 HRMDC(M)13100HR 100 86.9 2 1.0 110.7 183 196 HRMDC(M)13125HR 125 111.9 2 0.8 144.0 233 246 HRMDC(M)16080HR 80 63.3 2.5 1.4 102 138 156 HRMDC(M)16100HR 100 83.3 2.5 143 178 196 HRMDC(M)16125HR 125 108.3 2.5 0.7 204 228 246 HRMDC(M)16160R 160 143.3 2.5 0.5 286 298 316 HRMDC(M)16200R 200 183.3 2.5 0.3 477 378 396 HRMDC(M)16250R 250 233.3 2.5 0.2 716 478 496 HRMDC(M)16315R 315 298.3 2.5 0.1 1432 608 626 Copying area Facing Slotting Through coolant system Milling 211
