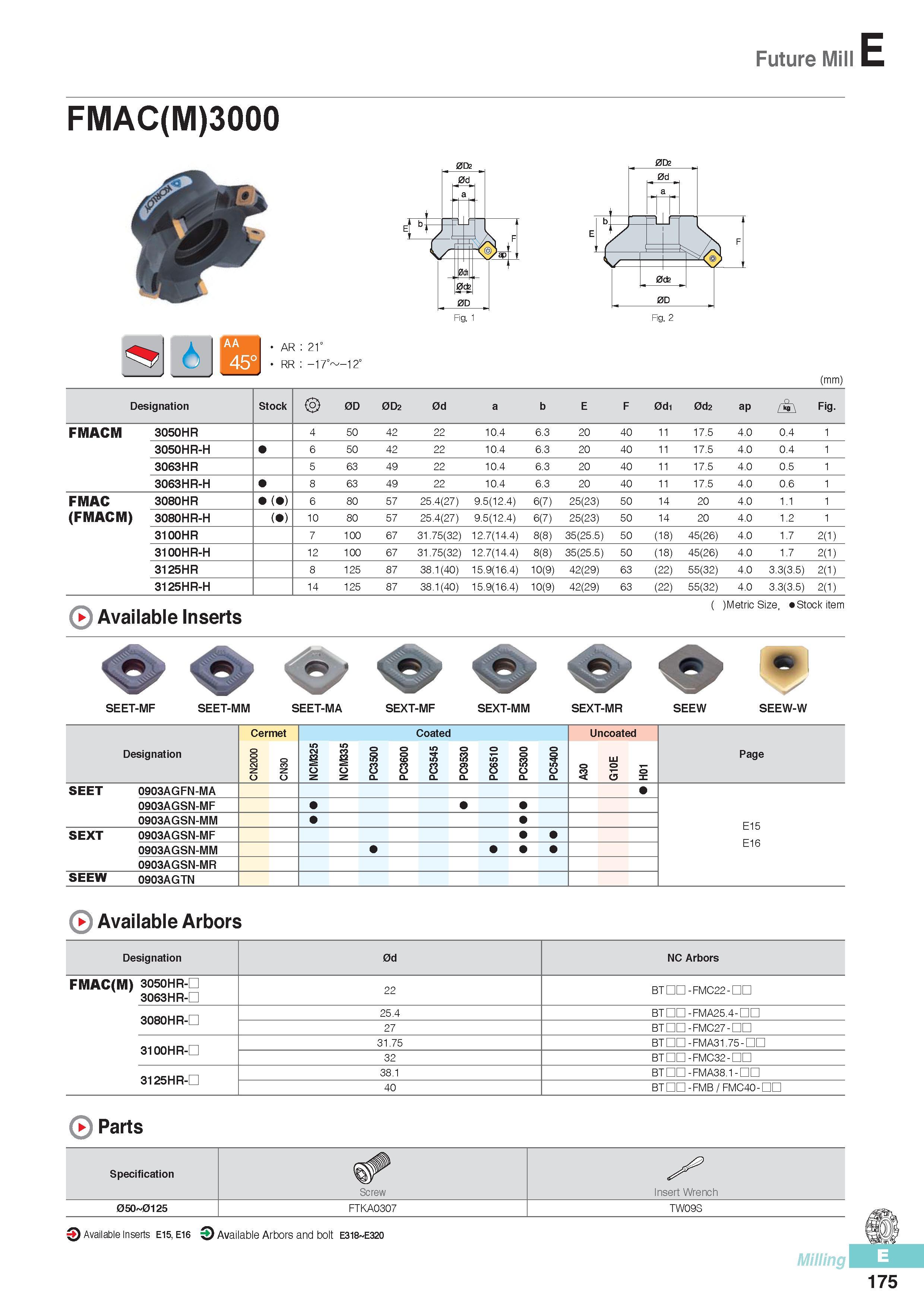

Future Mill FMAC(M)3000 6 AR 21° RR -17° -12° (mm) Designation Stock 0D 0D2 0d a b E F 0d1 0d2 ap f+\ Fig. FMACM 3050HR 4 50 42 22 10.4 6.3 20 40 11 17.5 4.0 0.4 1 3050HR-H 6 50 42 22 10.4 6.3 20 40 11 17.5 4.0 0.4 1 3063HR 5 63 49 22 1 0.4 6.3 20 40 11 17.5 4.0 0.5 1 3063HR-H 8 63 49 22 10.4 6.3 20 40 11 17.5 4.0 0.6 1 FMAC 3080HR ( ) 6 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50 14 20 4.0 1.1 1 (FMACM) 3080HR-H ( ) 10 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50 14 20 4.0 1.2 1 3100HR 7 100 67 31.75(32) 12.7(14.4) 8(8) 35(25.5) 50 (18) 45(26) 4.0 1.7 2(1) 3100HR-H 12 100 67 31.75(32) 12.7(14.4) 8(8) 35(25.5) 50 (18) 45(26) 4.0 1.7 2(1) 3125HR 8 125 87 38.1(40) 15.9(16.4) 10(9) 42(29) 63 (22) 55(32) 4.0 3.3(3.5) 2(1) 3125HR-H 14 125 87 38.1(40) 15.9(16.4) 10(9) 42(29) 63 (22) 55(32) 4.0 3.3(3.5) 2(1) Available Inserts ( )MetricSize, Stock item SEET-MF SEET-MM SEET-MA SEXT-MF SEXT-MM SEXT-MR SEEW Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SEET 0903AGFN-MA E15 E16 0903AGSN-MF 0903AGSN-MM SEXT 0903AGSN-MF 0903AGSN-MM 0903AGSN-MR SEEW 0903AGTN Available Arbors Designation 0d NC Arbors FMAC(M) 3050HR-D 3063HR-D 22 BT -FMC22- 3080HR-D 25.4 BT -FMA25.4- 27 BT -FMC27- 3100HR-D 31.75 BT -FMA31.75- 32 BT -FMC32- 3125HR-D 38.1 BT -FMA38.1 - 40 BT -FMB / FMC40- Specification Screw Insert Wrench 050 0125 FTKA0307 TW09S Q Available Inserts E15, E16 O Available Arbors and bolt E318 E320 Milling 175
