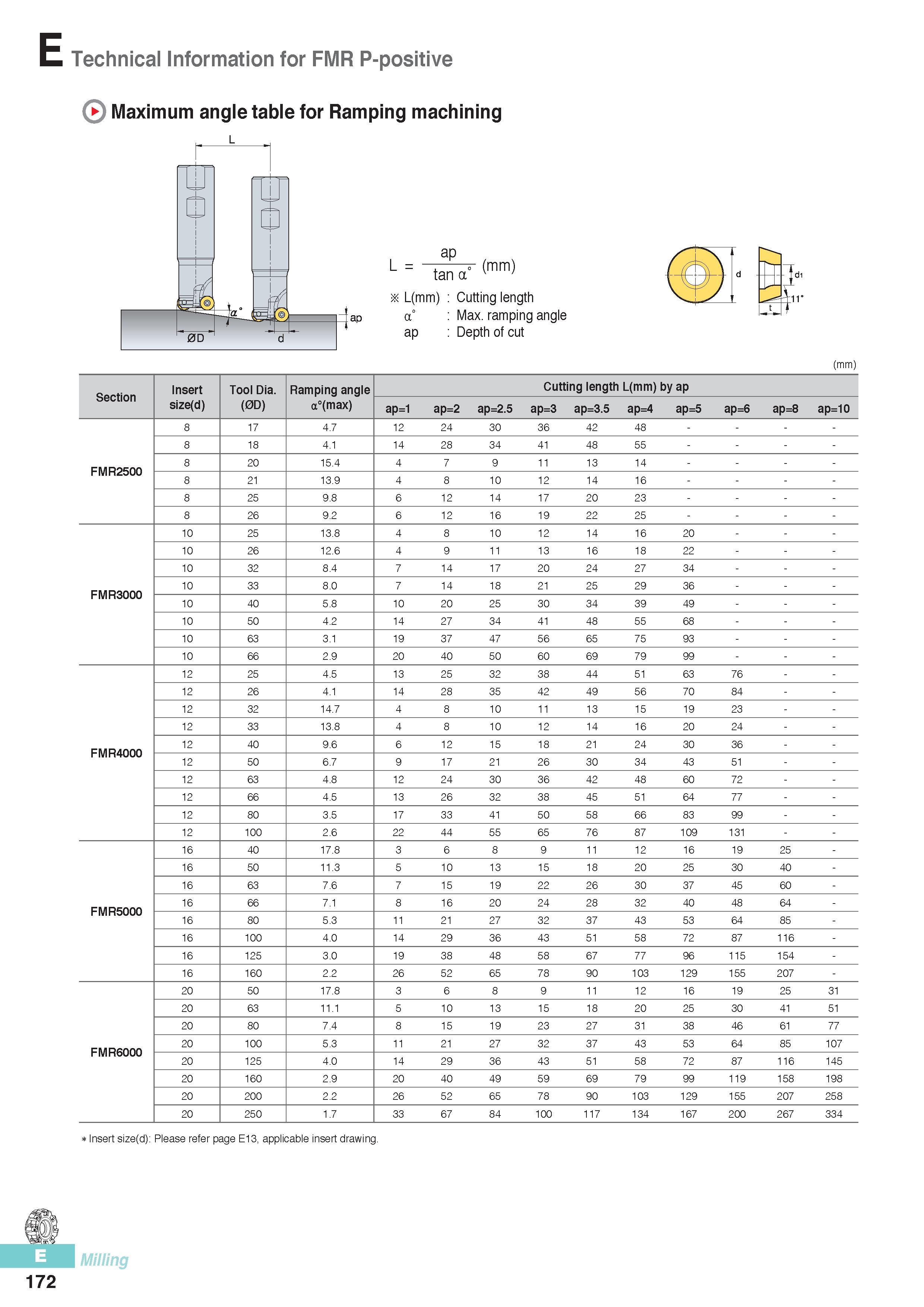

E Technical Information for FMR P-positive Maximum angle table for Ramping machining L ap Tap tan a x L(mm) a° ap (mm) Cutting length Max. ramping angle Depth of cut r hr (mm) Section Insert Tool Dia. Ramping angle Cutting length L(mm) by ap size(d) (0D) a°(max) ap=1 ap=2 ap=2.5 ap=3 ap=3.5 ap=4 ap=5 ap=6 ap=8 ap=10 8 17 4.7 12 24 30 36 42 48 8 18 4.1 14 28 34 41 48 55 FMR2500 8 20 15.4 4 7 9 11 13 14 8 21 13.9 4 8 10 12 14 16 8 25 9.8 6 12 14 17 20 23 8 26 9.2 6 12 16 19 22 25 10 25 13.8 4 8 10 12 14 16 20 - 10 26 12.6 4 9 11 13 16 18 22 - 10 32 8.4 7 14 17 20 24 27 34 - FMR3000 10 33 8.0 7 14 18 21 25 29 36 - 10 40 5.8 10 20 25 30 34 39 49 - 10 50 4.2 14 27 34 41 48 55 68 - 10 63 3.1 19 37 47 56 65 75 93 - 10 66 2.9 20 40 50 60 69 79 99 - 12 25 4.5 13 25 32 38 44 51 63 76 12 26 4.1 14 28 35 42 49 56 70 84 12 32 14.7 4 8 10 11 13 15 19 23 12 33 13.8 4 8 10 12 14 16 20 24 FMR4000 12 40 9.6 6 12 15 18 21 24 30 36 12 50 6.7 9 17 21 26 30 34 43 51 12 63 4.8 12 24 30 36 42 48 60 72 12 66 4.5 13 26 32 38 45 51 64 77 12 80 3.5 17 33 41 50 58 66 83 99 12 100 2.6 22 44 55 65 76 87 1 09 1 31 16 40 17.8 3 6 8 9 11 12 16 19 25 - 16 50 11.3 5 10 13 15 18 20 25 30 40 - 16 63 7.6 7 15 19 22 26 30 37 45 60 - FMR5000 16 66 7.1 8 16 20 24 28 32 40 48 64 - 16 80 5.3 11 21 27 32 37 43 53 64 85 - 16 100 4.0 14 29 36 43 51 58 72 87 116 - 16 125 3.0 19 38 48 58 67 77 96 115 154 - 16 160 2.2 26 52 65 78 90 1 03 1 29 1 55 207 - 20 50 17.8 3 6 8 9 11 12 16 19 25 31 20 63 11.1 5 10 13 15 18 20 25 30 41 51 20 80 7.4 8 15 19 23 27 31 38 46 61 77 FMR6000 20 100 5.3 11 21 27 32 37 43 53 64 85 107 20 125 4.0 14 29 36 43 51 58 72 87 116 145 20 160 2.9 20 40 49 59 69 79 99 119 158 198 20 200 2.2 26 52 65 78 90 1 03 1 29 1 55 207 258 20 250 1.7 33 67 84 1 117 1 34 1 67 200 267 334 Insert size(d): Please refer page E13, applicable insert drawing. Milling 172
