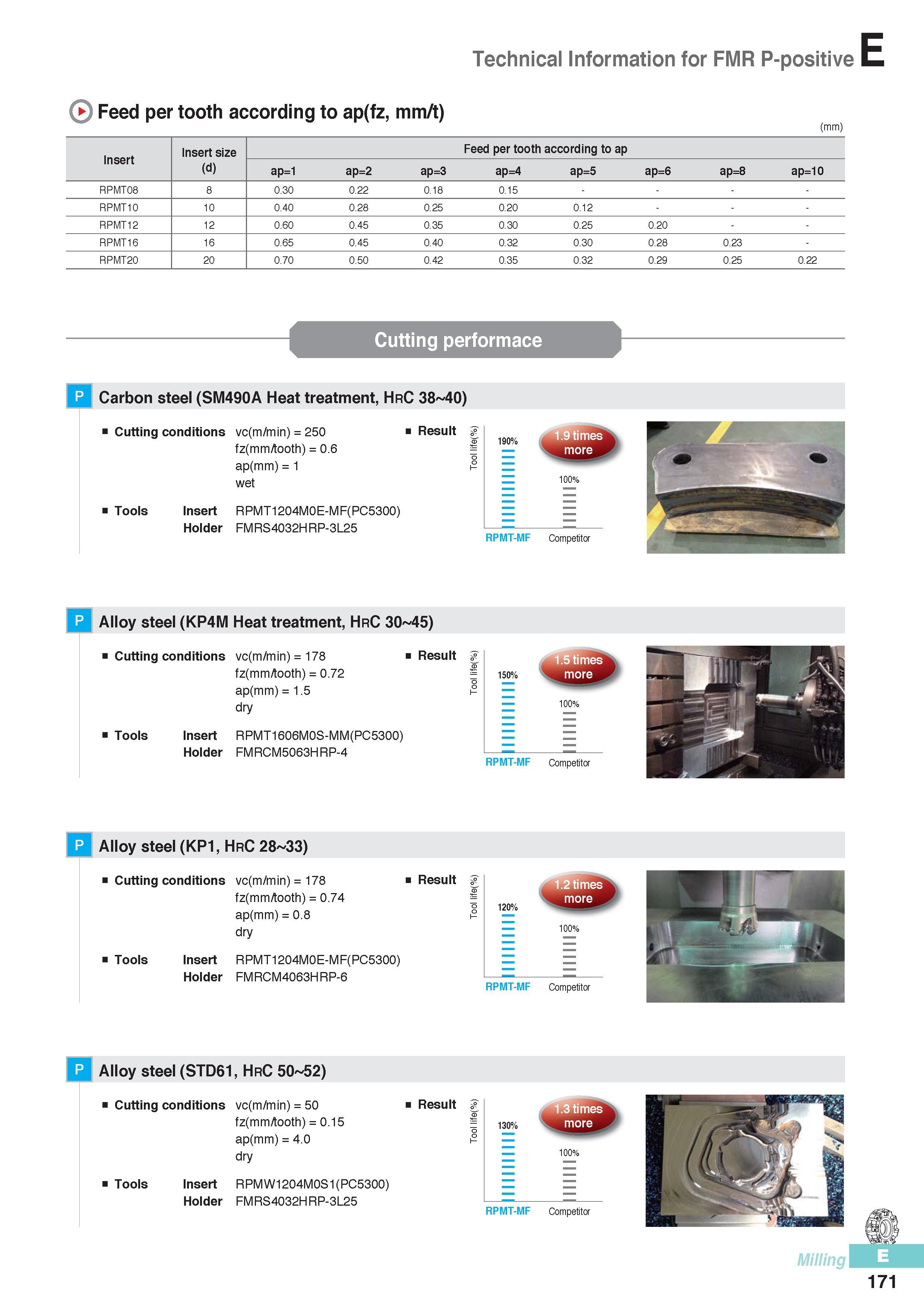

Technical Information for FMR P-positive Feed per tooth according to ap(fz, mm/t) (mm) Insert Insert size (d) Feed per tooth according to ap ap=1 ap=2 ap=3 ap=4 ap=5 ap=6 ap=8 ap=10 RPMT08 8 0.30 0.22 0.18 0.15 rpmtio 10 0.40 0.28 0.25 0.20 0.12 RPMT12 12 0.60 0.45 0.35 0.30 0.25 0.20 RPMT16 16 0.65 0.45 0.40 0.32 0.30 0.28 0.23 RPMT20 20 0.70 0.50 0.42 0.35 0.32 0.29 0.25 0.22 Cutting performace p Carbon steel (SM490A Heat treatment, HrC 38 40) Cutting conditions vc(m/min) = 250 Result fz(mm/tooth) = 0.6 ap(mm) = 1 wet Tools Insert RPMT1204M0E-MF(PC5300) Holder FMRS4032HRP-3L25 RPMT-MF Competitor p Alloy steel (KP4M Heat treatment, HrC 30 45) Cutting conditions vc(m/min) = 178 Result g fz(mm/tooth) = 0.72 5 150% O ap(mm) = 1.5 dry Tools Insert RPMT1606M0S-MM(PC5300) Holder FMRCM5063HRP-4 RPMT-MF Competitor p Alloy steel (KP1, HrC 28 33) Cutting conditions vc(m/min) = 178 Result fz(mm/tooth) = 0.74 ap(mm) = 0.8 dry = 100% Tools Insert RPMT1204M0E-MF(PC5300) Holder FMRCM4063HRP-6 1.2 times pmore F RPMT-MF Competitor p Alloy steel (STD61, HrC 50 52) Cutting conditions vc(m/min) = 50 Result g fz(mm/tooth) = 0.15 = 130% ap(mm) = 4.0 = dry 100% Tools Insert RPMW1204M0S1(PC5300) Holder FMRS4032HRP-3L25 1.3 times pmore F RPMT-MF Competitor 171
