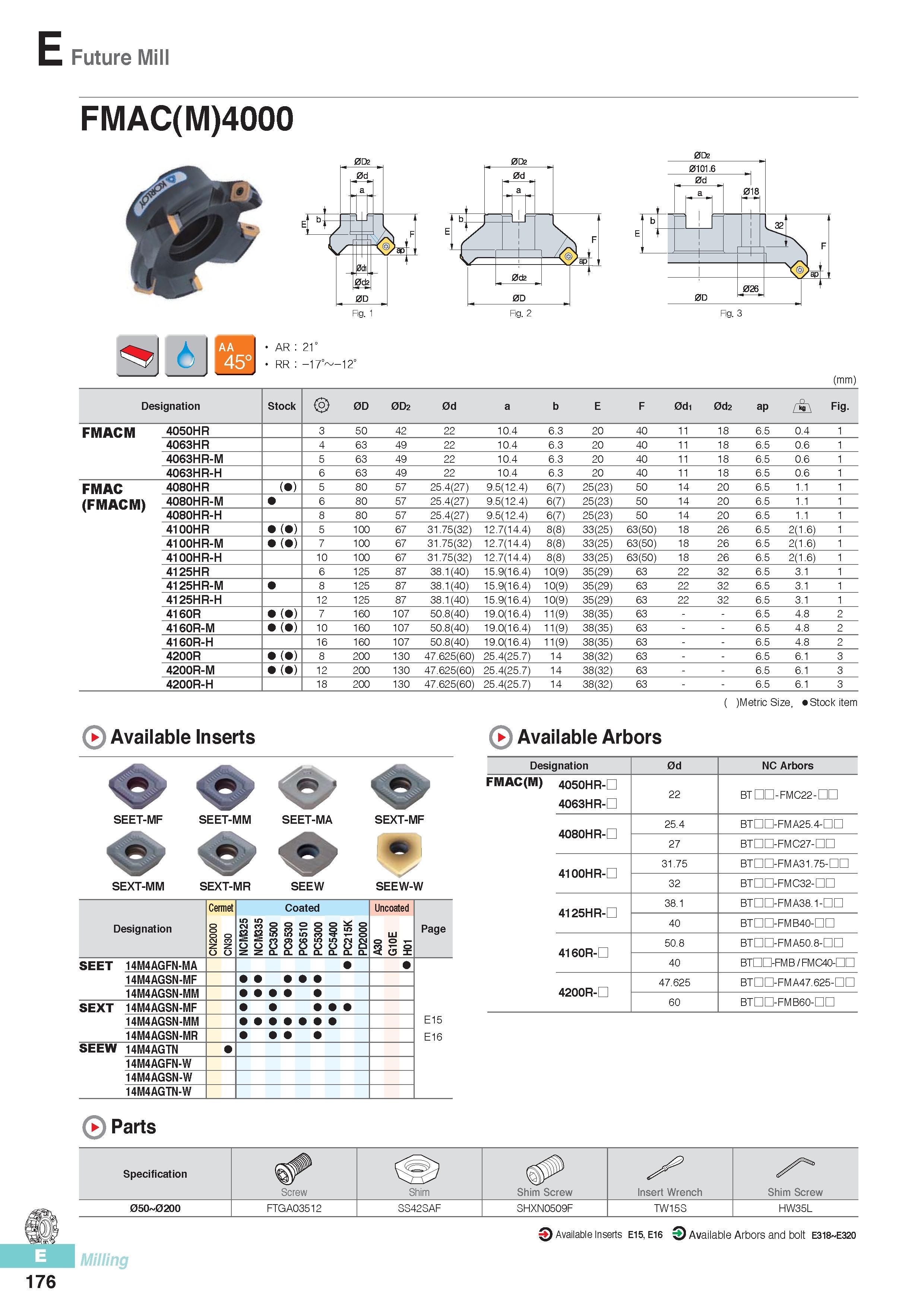

Future Mill FMAC(M)4000 0D2 0D2 6 AR 21° RR -17° -12° (mm) Designation Stock 0D 0D2 0d a b E F 0d1 0d2 ap aSa Fig. FMACM 4050HR 3 50 42 22 10.4 6.3 20 40 11 18 6.5 0.4 1 4063HR 4 63 49 22 10.4 6.3 20 40 11 18 6.5 0.6 1 4063HR-M 5 63 49 22 10.4 6.3 20 40 11 18 6.5 0.6 1 4063HR-H 6 63 49 22 10.4 6.3 20 40 11 18 6.5 0.6 1 FMAC 4080HR ( ) 5 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50 14 20 6.5 1.1 1 (FMACM) 4080HR-M 6 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50 14 20 6.5 1.1 1 4080HR-H 8 80 57 25.4(27) 9.5(12.4) 6(7) 25(23) 50 14 20 6.5 1.1 1 4100HR ( ) 5 100 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 6.5 2(1.6) 1 4100HR-M ( ) 7 100 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 6.5 2(1.6) 1 4100HR-H 10 100 67 31.75(32) 12.7(14.4) 8(8) 33(25) 63(50) 18 26 6.5 2(1.6) 1 4125HR 6 125 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63 22 32 6.5 3.1 1 4125HR-M 8 125 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63 22 32 6.5 3.1 1 4125HR-H 12 125 87 38.1(40) 15.9(16.4) 10(9) 35(29) 63 22 32 6.5 3.1 1 4160R ( ) 7 160 107 50.8(40) 19.0(16.4) 11(9) 38(35) 63 6.5 4.8 2 4160R-M ( ) 10 160 107 50.8(40) 19.0(16.4) 11(9) 38(35) 63 6.5 4.8 2 4160R-H 16 160 107 50.8(40) 19.0(16.4) 11(9) 38(35) 63 6.5 4.8 2 4200R ( ) 8 200 130 47.625(60) 25.4(25.7) 14 38(32) 63 6.5 6.1 3 4200R-M ( ) 12 200 130 47.625(60) 25.4(25.7) 14 38(32) 63 6.5 6.1 3 4200R-H 18 200 130 47.625(60) 25.4(25.7) 14 38(32) 63 6.5 6.1 3 ( )MetricSize, Stock item Available Inserts Available Arbors SEET-MF SEET-MM SEET-MA SEXT-MF SEXT-MM SEXT-MR SEEW SEEW-W Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC9530 PC6510 PC5300 PC5400 PC215K PD2000 A30 G10E H01 Page SEET 14M4AGFN-MA 14M4AGSN-MF 14M4AGSN-MM SEXT 14M4AGSN-MF 14M4AGSN-MM E15 14M4AGSN-MR E16 SEEW 14M4AGTN 14M4AGFN-W 14M4AGSN-W 14M4AGTN-W Designation 0d NC Arbors FMAC(M) 4050HR-D 4063HR-D 22 BTDD-FMC22-DC 4080HR-D 25.4 BTHD-FMA25.4-HD 27 BTHD-FMC27-HO 4100HR-D 31.75 BTHD-FMA31.75-HO 32 BTHD-FMC32-HO 4125HR-D 38.1 BTHD-FMA38.1-HD 40 BTHD-FMB40-HD 4160R-D 50.8 BTHD-FMA50.8-HD 40 BTDn-FMB/FMC40-nn 4200R-D 47.625 BTDn-FMA47.625-nn 60 BTHD-FMB60-HD Parts Specification S’ s Screw Shim Shim Screw Insert Wrench Shim Screw 050 0200 FTGA03512 SS42SAF SHXN0509F TW15S HW35L Q Available Inserts E15, E16 O Available Arbors and bolt E318 E320 Milling 176
