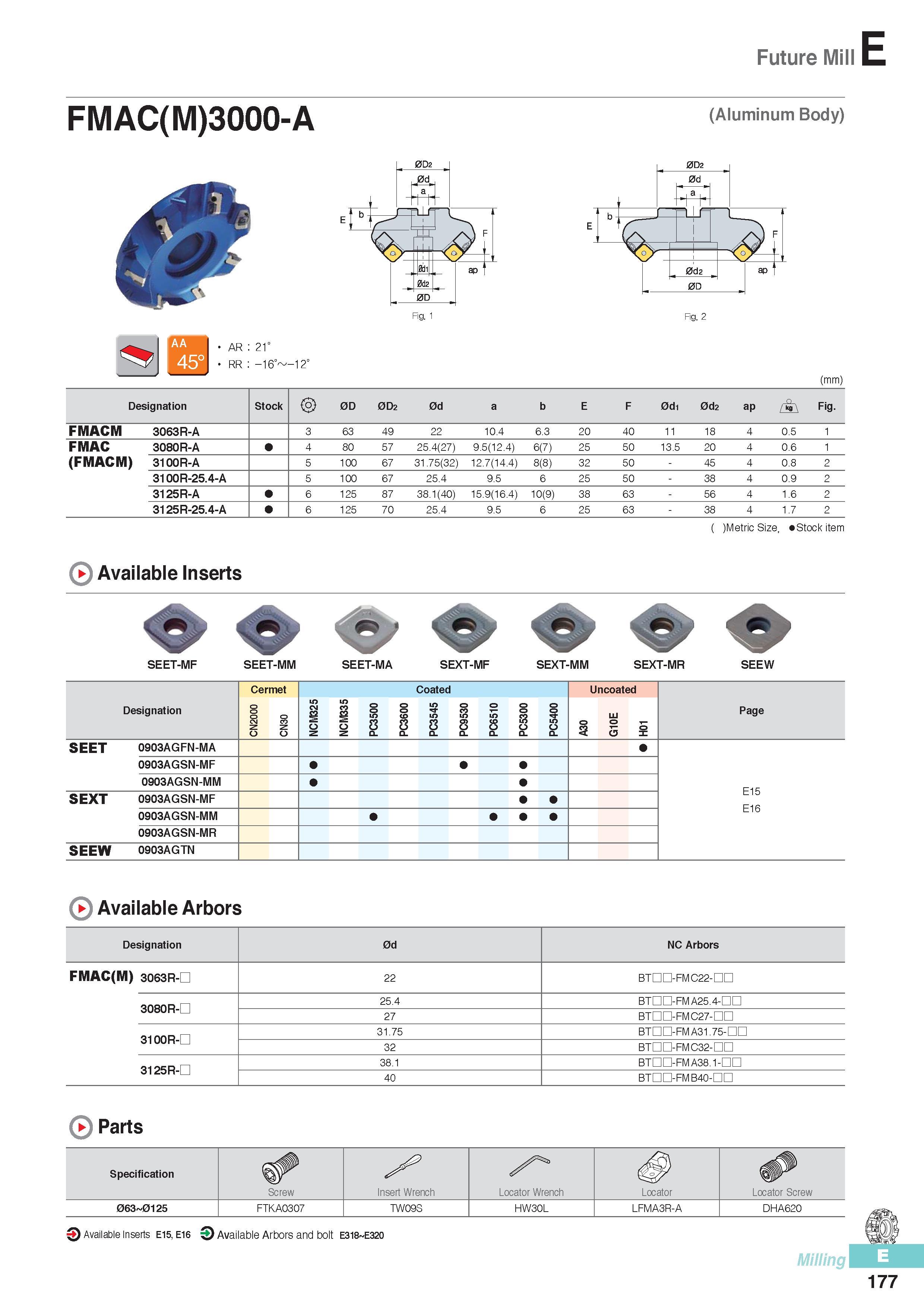

Future Mill FMAC(M)3000-A (Aluminum Body) AR 21° RR -16° -12° Fig. 2 (mm) Designation Stock 0D 0D2 0d a b E F 0d1 0d2 ap Fig. FMACM 3063R-A 3 63 49 22 10.4 6.3 20 40 11 18 4 0.5 1 FMAC 3080R-A 4 80 57 25.4(27) 9.5(12.4) 6(7) 25 50 13.5 20 4 0.6 1 (FMACM) 3100R-A 5 100 67 31.75(32) 12.7(14.4) 8(8) 32 50 - 45 4 0.8 2 3100R-25.4-A 5 100 67 25.4 9.5 6 25 50 - 38 4 0.9 2 3125R-A 6 125 87 38.1(40) 15.9(16.4) 10(9) 38 63 - 56 4 1.6 2 3125R-25.4-A 6 125 70 25.4 9.5 6 25 63 - 38 4 1.7 2 ( )MetricSize, Stock item 0 Available Inserts SEET-MF SEET-MM SEET-MA SEXT-MF SEXT-MM SEXT-MR SEEW Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 A30 G10E H01 Page SEET 0903AGFN-MA E15 E16 0903AGSN-MF 0903AGSN-MM SEXT 0903AGSN-MF 0903AGSN-MM 0903AGSN-MR SEEW 0903AGTN 0 Available Arbors Designation 0d NC Arbors FMAC(M) 3063R-D 22 BTDD-FMC22-DC 3080R-D 25.4 BTHD-FMA25.4-HD 27 BT -FMC27- 3100R-D 31.75 BTHD-FMA31.75-HO 32 BT -FMC32- 3125R-D 38.1 BTHD-FMA38.1-HD 40 BTHD-FMB40-HD ( Parts Specification S' Screw Insert Wrench Locator Wrench Locator Locator Screw 063 0125 FTKA0307 TW09S HW30L LFMA3R-A DHA620 Q Available Inserts E15, E16 O Available Arbors and bolt E318 E320 Milling 177
