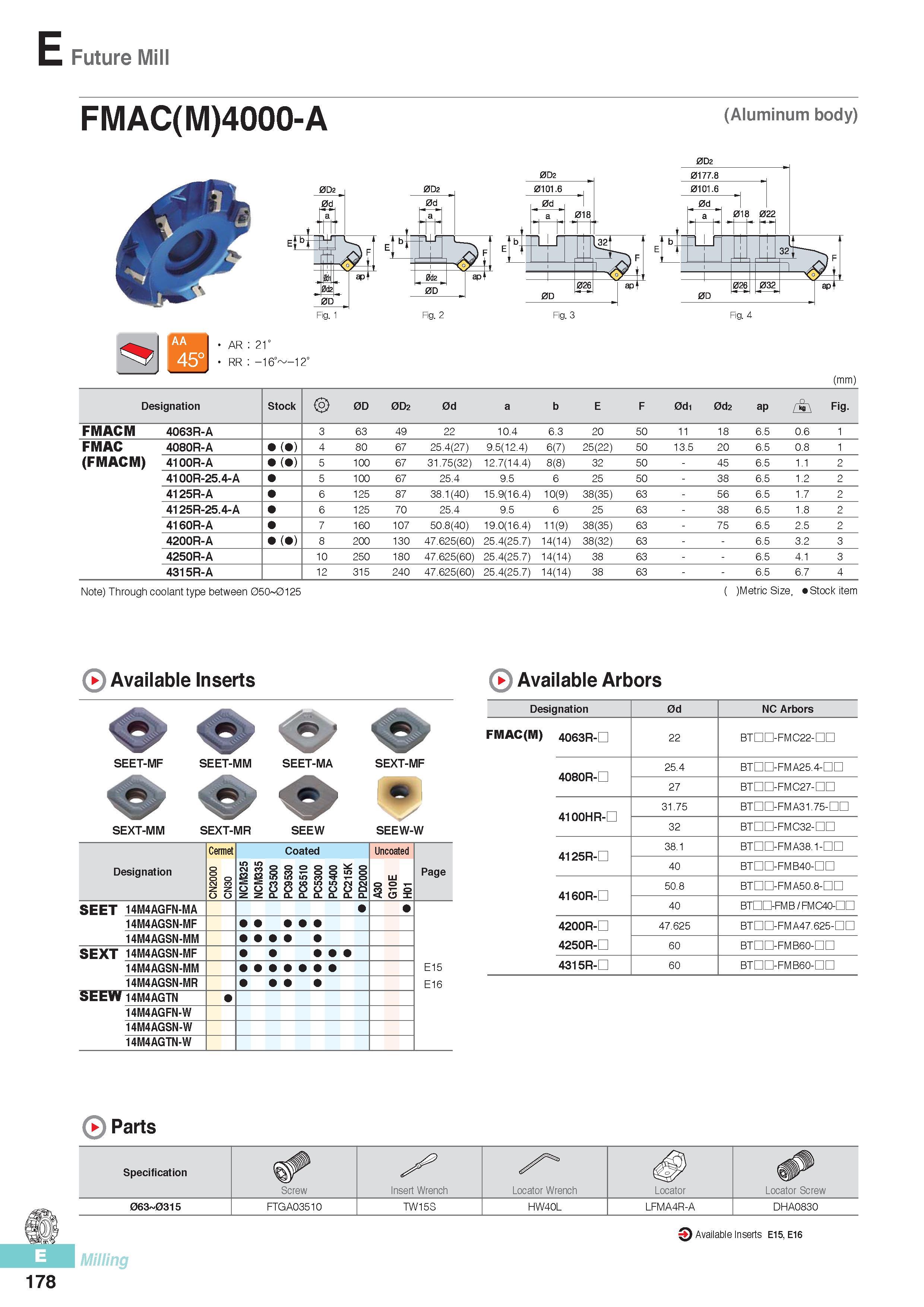

Future Mill FMAC(M)4000-A (Aluminum body) AR 21° RR -16° -12° (mm) Designation Stock 0D 0D2 0d a b E F 0di 0d2 ap aSa Fig. FMACM 4063R-A 3 63 49 22 10.4 6.3 20 50 11 18 6.5 0.6 1 FMAC 4080R-A ( ) 4 80 67 25.4(27) 9.5(12.4) 6(7) 25(22) 50 13.5 20 6.5 0.8 1 (FMACM) 4100R-A ( ) 5 100 67 31.75(32) 12.7(14.4) 8(8) 32 50 - 45 6.5 1.1 2 4100R-25.4-A 5 100 67 25.4 9.5 6 25 50 - 38 6.5 1.2 2 4125R-A 6 125 87 38.1(40) 15.9(16.4) 10(9) 38(35) 63 - 56 6.5 1.7 2 4125R-25.4-A 6 125 70 25.4 9.5 6 25 63 - 38 6.5 1.8 2 4160R-A 7 160 107 50.8(40) 19.0(16.4) 11(9) 38(35) 63 - 75 6.5 2.5 2 4200R-A ( ) 8 200 130 47.625(60) 25.4(25.7) 14(14) 38(32) 63 6.5 3.2 3 4250R-A 10 250 180 47.625(60) 25.4(25.7) 14(14) 38 63 6.5 4.1 3 4315R-A 12 315 240 47.625(60) 25.4(25.7) 14(14) 38 63 6.5 6.7 4 Note) Through coolant type between 05O 0125 ( )MetricSize, Stock item Available Inserts SEXT-MM SEXT-MR SEEW SEEW-W Designation Cermet Coated Uncoated Page CN2000 0 3 N C NCM325 NCM335 PC3500 PC9530 PC6510 PC5300 PC5400 PC215K PD2000 A30 G10E H01 SEET 14M4AGFN-MA 14M4AGSN-MF 14M4AGSN-MM SEXT 14M4AGSN-MF 14M4AGSN-MM E15 14M4AGSN-MR E16 SEEW 14M4AGTN 14M4AGFN-W 14M4AGSN-W 14M4AGTN-W Available Arbors Designation 0d NC Arbors FMAC(M) 4063R-D 22 BTDD-FMC22-DC 4080R-D 25.4 BTHD-FMA25.4-HD 27 BTnn-FMC27-nn 4100HR-D 31.75 BTHD-FMA31.75-HO 32 BTnn-FMC32-nn 4125R-D 38.1 BTHD-FMA38.1-HD 40 BTHD-FMB40-HD 4160R-D 50.8 BTHD-FMA50.8-HD 40 BTDn-FMB/FMC40-nn 4200R-D 47.625 BTDn-FMA47.625-nn 4250R-D 60 BTHD-FMB60-HD 4315R-D 60 BTDn-FMB60-nn AA 45° Parts Specification Screw Insert Wrench Locator Wrench Locator Locator Screw 063 0315 FTGA03510 TW15S HW40L LFMA4R-A DHA0830 Milling 178 Available Inserts E15, E16
