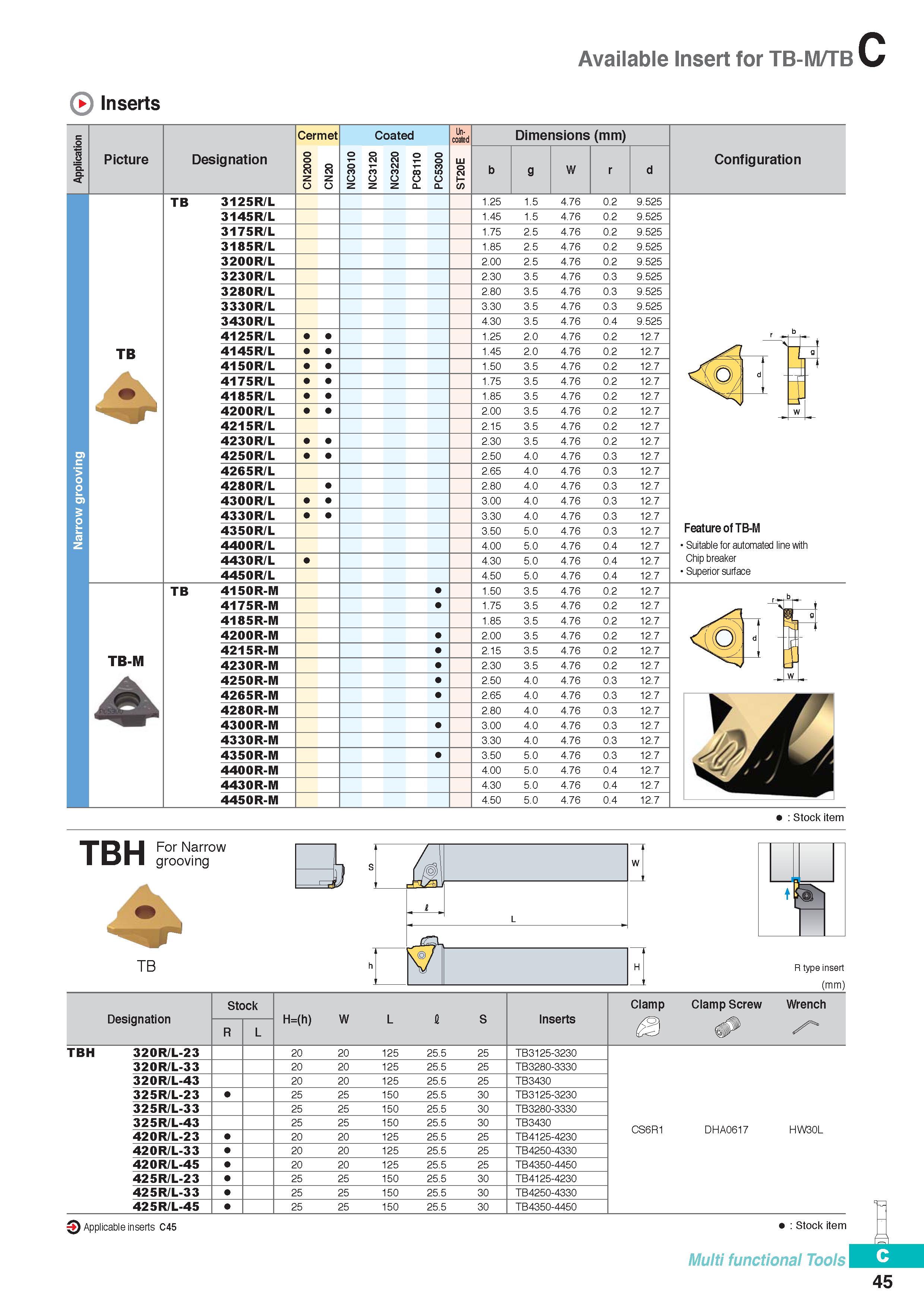

O Inserts Available Insert for TB-M/TB Picture TB TB-M Designation TB 3125R/L 3145R/L 3175R/L 3185R/L 3200R/L 3230R/L 3280R/L 3330R/L 3430R/L 4125R/L 4145R/L 4150R/L 4175R/L 4185R/L 4200R/L 4215R/L 4230R/L 4250R/L 4265R/L 4280R/L 4300R/L 4330R/L 4350R/L 4400R/L 4430R/L 4450R/L TB 4150R-M 4175R-M 4185R-M 4200R-M 4215R-M 4230R-M 4250R-M 4265R-M 4280R-M 4300R-M 4330R-M 4350R-M 4400R-M 4430R-M 4450R-M Cermet I 8 z z Coated o Q. Un- coated Dimensions (mm) W 1.25 1.5 4.76 0.2 9.525 1.45 1.5 4.76 0.2 9.525 1.75 2.5 4.76 0.2 9.525 1.85 2.5 4.76 0.2 9.525 2.00 2.5 4.76 0.2 9.525 2.30 3.5 4.76 0.3 9.525 2.80 3.5 4.76 0.3 9.525 3.30 3.5 4.76 0.3 9.525 4.30 3.5 4.76 0.4 9.525 1.25 2.0 4.76 0.2 12.7 1.45 2.0 4.76 0.2 12.7 1.50 3.5 4.76 0.2 12.7 1.75 3.5 4.76 0.2 12.7 1.85 3.5 4.76 0.2 12.7 2.00 3.5 4.76 0.2 12.7 2.15 3.5 4.76 0.2 12.7 2.30 3.5 4.76 0.2 12.7 2.50 4.0 4.76 0.3 12.7 2.65 4.0 4.76 0.3 12.7 2.80 4.0 4.76 0.3 12.7 3.00 4.0 4.76 0.3 12.7 3.30 4.0 4.76 0.3 12.7 3.50 5.0 4.76 0.3 12.7 4.00 5.0 4.76 0.4 12.7 4.30 5.0 4.76 0.4 12.7 4.50 5.0 4.76 0.4 12.7 1.50 3.5 4.76 0.2 12.7 1.75 3.5 4.76 0.2 12.7 1.85 3.5 4.76 0.2 12.7 2.00 3.5 4.76 0.2 12.7 2.15 3.5 4.76 0.2 12.7 2.30 3.5 4.76 0.2 12.7 2.50 4.0 4.76 0.3 12.7 2.65 4.0 4.76 0.3 12.7 2.80 4.0 4.76 0.3 12.7 3.00 4.0 4.76 0.3 12.7 3.30 4.0 4.76 0.3 12.7 3.50 5.0 4.76 0.3 12.7 4.00 5.0 4.76 0.4 12.7 4.30 5.0 4.76 0.4 12.7 4.50 5.0 4.76 0.4 12.7 Configuration Feature of TB-M Suitable for automated line with Chip breaker Superior surface Stock item TBH For Narrow grooving & TB R type insert (mm) Designation Stock H=(h) W L I S Inserts Clamp Clamp Screw Wrench R L cP TBH 320R/L-23 20 20 125 25.5 25 TB3125-3230 320R/L-33 20 20 125 25.5 25 TB3280-3330 320R/L-43 20 20 125 25.5 25 TB3430 325R/L-23 25 25 150 25.5 30 TB3125-3230 325R/L-33 25 25 150 25.5 30 TB3280-3330 325R/L-43 25 25 150 25.5 30 TB3430 CS6R1 DHA0617 HW30L 420R/L-23 20 20 125 25.5 25 TB4125-4230 420R/L-33 20 20 125 25.5 25 TB4250-4330 420R/L-45 20 20 125 25.5 25 TB4350-4450 425R/L-23 25 25 150 25.5 30 TB4125-4230 425R/L-33 25 25 150 25.5 30 TB4250-4330 425R/L-45 25 25 150 25.5 30 TB4350-4450 3 Applicable inserts C45 Stock item Multi functional Tools mm 45 d r 9 9 9 9 9
