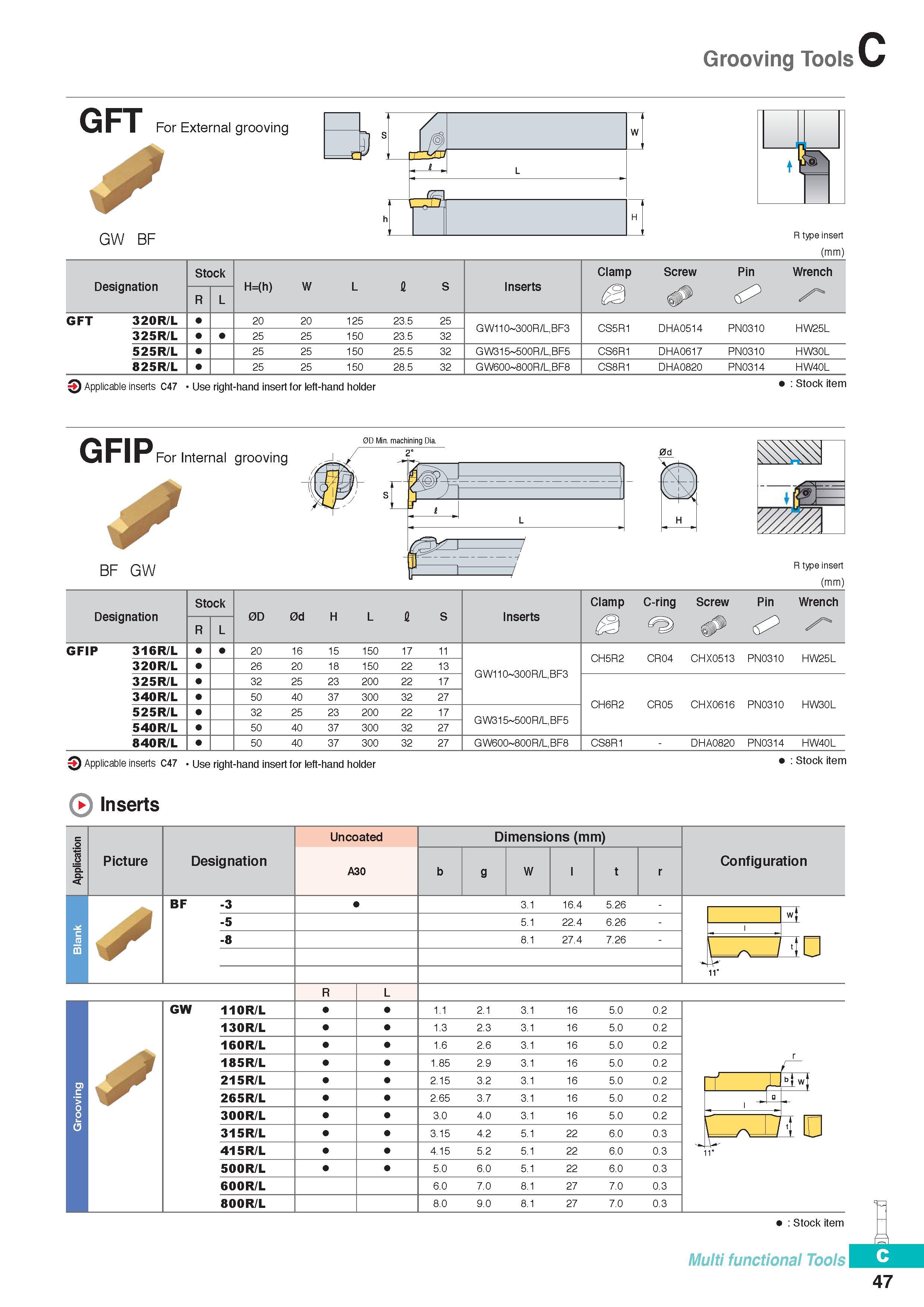

Grooving Tools GFT For External grooving GW BF R type insert (mm) Designation Stock H=(h) W L I S Inserts Clamp Screw Pin Wrench R L 0 GFT 320R/L 20 20 125 23.5 25 GW110 300R/L,BF3 CS5R1 DHA0514 PN0310 HW25L 325R/L 25 25 150 23.5 32 525R/L 25 25 150 25.5 32 GW315 500R/L,BF5 CS6R1 DHA0617 PN0310 HW30L 825R/L 25 25 150 28.5 32 GW600 800R/L,BF8 CS8R1 DHA0820 PN0314 HW40L Applicable inserts C47 Use right-hand insert tor left-hand holder Stock item GFIP 0D Min. machining Dia. For Internal grooving BF GW R type insert (mm) Designation Stock 0D 0d H L I S Inserts Clamp C-ring Screw Pin Wrench R L GFIP 316R/L 20 16 15 150 17 11 CH5R2 CR04 CHX0513 PN0310 HW25L 320R/L 26 20 18 150 22 13 GW110 300R/L,BF3 325R/L 32 25 23 200 22 17 340R/L 50 40 37 300 32 27 CH6R2 CR05 CHX0616 PN0310 HW30L 525R/L 32 25 23 200 22 17 GW315 500R/L,BF5 540R/L 50 40 37 300 32 27 840R/L 50 40 37 300 32 27 GW600 800R/L,BF8 CS8R1 - DHA0820 PN0314 HW40L Applicable inserts C47 Use right-hand insert for left-hand holder Inserts Stock item Picture Designation BF -3 V GW 110R/L 130R/L 160R/L 185R/L 215R/L 265R/L 300R/L 315R/L 415R/L 500R/L 600R/L 800R/L Uncoated A30 Dimensions (mm) W 3.1 16.4 5.26 5.1 22.4 6.26 27.4 7.26 Configuration 1.1 2.1 3.1 16 5.0 0.2 1.3 2.3 3.1 16 5.0 0.2 1.6 2.6 3.1 16 5.0 0.2 1.85 2.9 3.1 16 5.0 0.2 2.15 3.2 3.1 16 5.0 0.2 2.65 3.7 3.1 16 5.0 0.2 3.0 4.0 3.1 16 5.0 0.2 3.15 4.2 5.1 22 6.0 0.3 4.15 5.2 5.1 22 6.0 0.3 5.0 6.0 5.1 22 6.0 0.3 6.0 7.0 27 7.0 0.3 8.0 9.0 27 7.0 0.3 Stock item Multi functional Tools mm 47 t r
