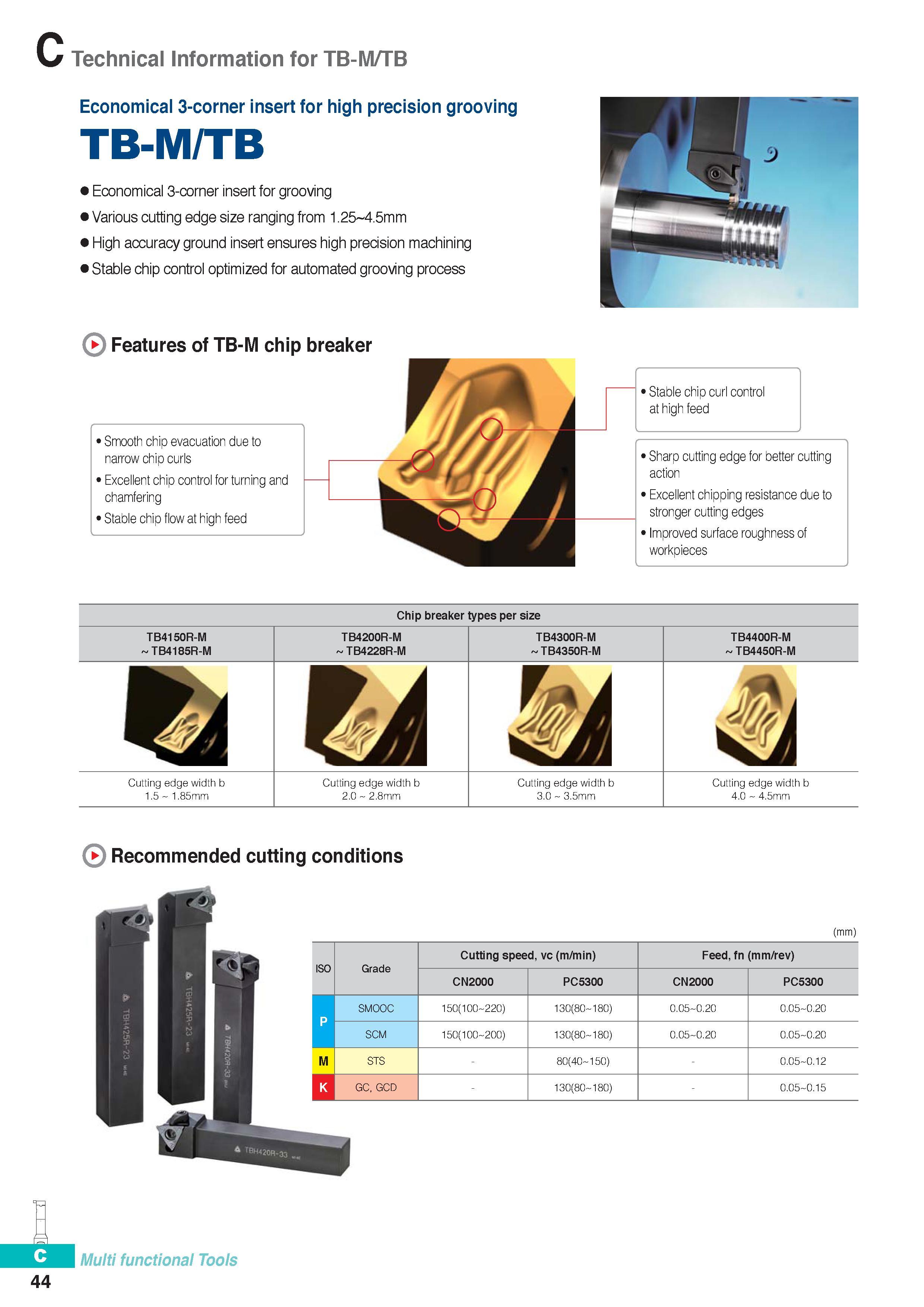

Economical 3-corner insert Korloy TB-M/TB for grooving Various cutting edge size ranging from 1.25 4.5mm High accuracy ground insert ensures high precision machining Stable chip control optimized for automated grooving process Features of TB-M chip breaker Smooth chip evacuation due to narrow chip curls Excellent chip control for turning and chamfering Stable chip flow at high feed Stable chip curl control at high feed Sharp cutting edge for better cutting action > Excellent chipping resistance due to stronger cutting edges Improved surface roughness of workpieces Chip breaker types per size TB4150R-M TB4185R-M TB4200R-M TB4228R-M TB4300R-M TB4350R-M TB4400R-M TB4450R-M Cutting edge width b 1.5 1.85mm Cutting edge width b 2.0 2.8mm Cutting edge width b 3.0 3.5mm Cutting edge width b 4.0 4.5mm Recommended cutting conditions (mm) Grade Cutting speed, vc (m/min) Feed, fn (mm/rev) CN2000 PC5300 CN2000 PC5300 SMOOC 150(100 220) 130(80 180) 0.05 0.20 0.05-0.2C SCM 150(100 200) 130(80 180) 0.05 0.20 0.05-0.2C STS - 80(40 150) - 0.05 0.12 GC, GCD - 130(80 180) - 0.05 0.15 44 Multi functional Tools Technical Information for TB-M/TB Economical 3-corner insert for high precision grooving TB-M/TB
