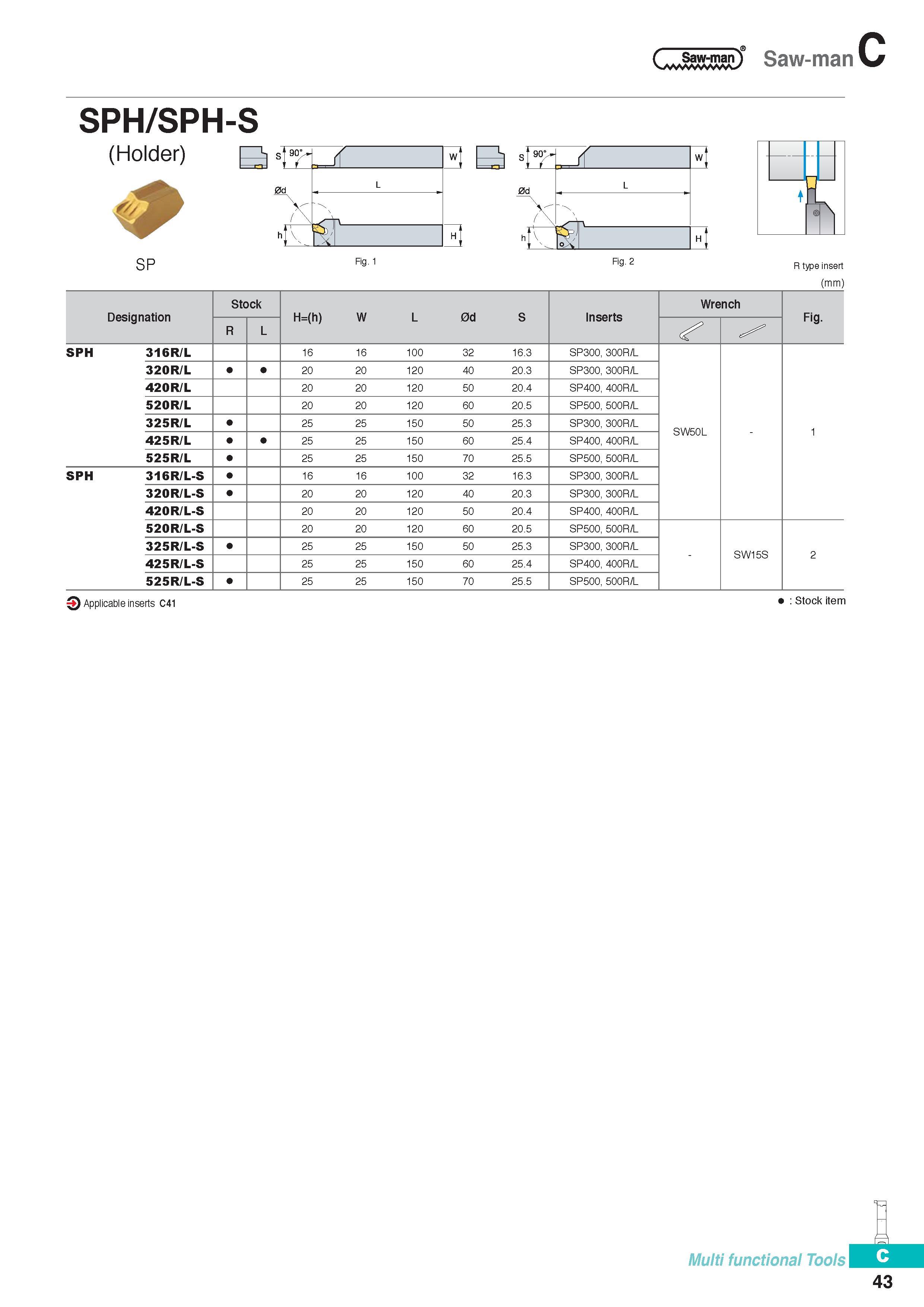

CJ D' Saw-man SPH/SPH-S (Holder) SP R type insert (mm) Designation Stock H=(h) W L 0d S Inserts Wrench Fig. R L SPH 316R/L 16 16 100 32 16.3 SP300, 300R/L 320R/L 20 20 120 40 20.3 SP300, 300R/L 420R/L 20 20 120 50 20.4 SP400, 400R/L 520R/L 20 20 120 60 20.5 SP500, 500R/L 325R/L 25 25 150 50 25.3 SP300, 300R/L SW50L 425R/L 25 25 150 60 25.4 SP400, 400R/L 1 525R/L 25 25 150 70 25.5 SP500, 500R/L SPH 316R/L-S 16 16 100 32 16.3 SP300, 300R/L 320R/L-S 20 20 120 40 20.3 SP300, 300R/L 420R/L-S 20 20 120 50 20.4 SP400, 400R/L 520R/L-S 20 20 120 60 20.5 SP500, 500R/L 325R/L-S 25 25 150 50 25.3 SP300, 300R/L SW15S 2 425R/L-S 25 25 150 60 25.4 SP400, 400R/L 525R/L-S 25 25 150 70 25.5 SP500, 500R/L 3 Applicable inserts C41 Stock item Multi functional Tools 43
