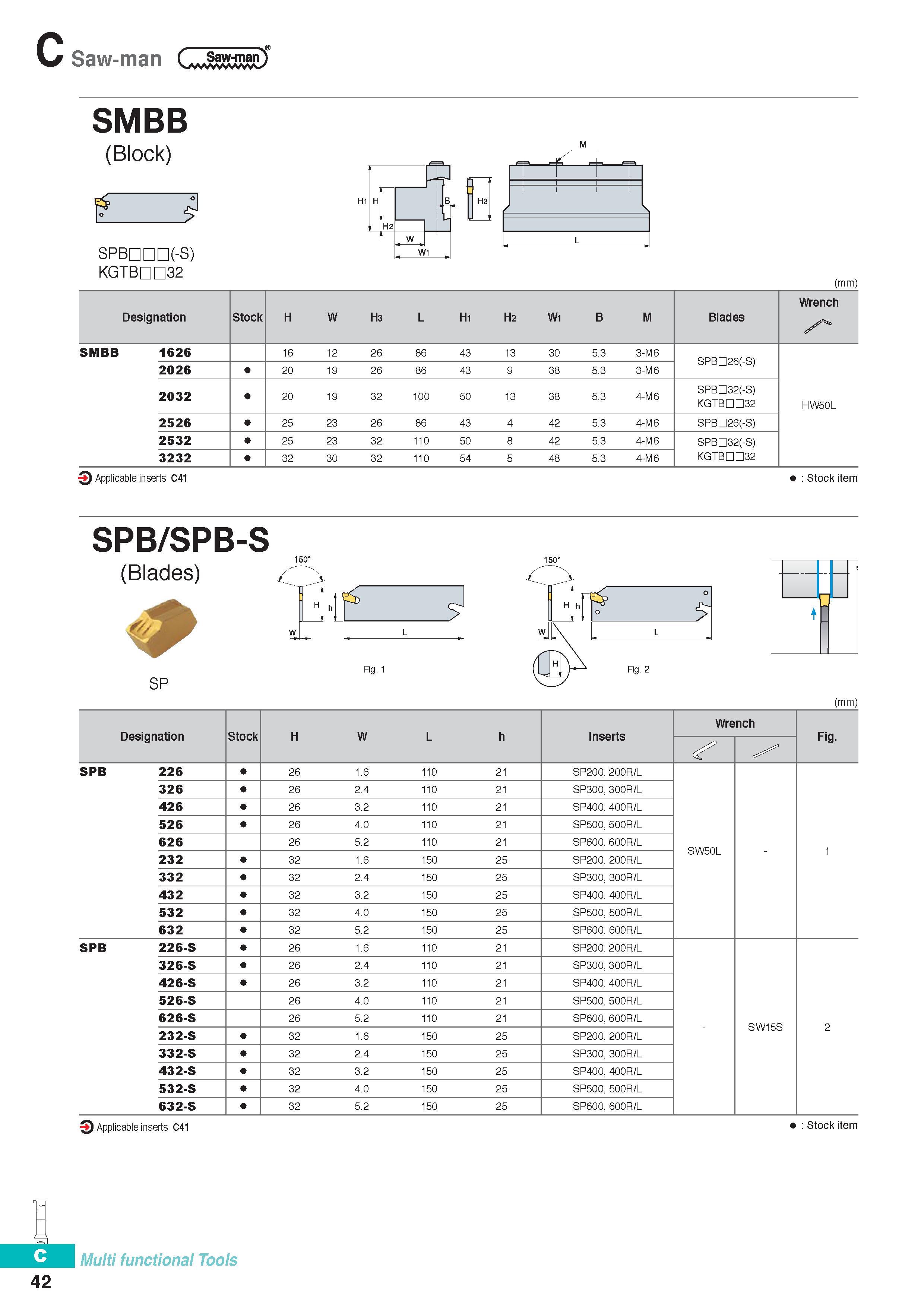

Saw-man SMBB (Block) sPBnnn(-s) KGTBQD32 (mm) Wrench Designation Stock H W H3 L Hi H2 Wi B M Blades SMBB 1626 16 12 26 86 43 13 30 5.3 3-M6 SPBD26(-S) 2026 20 19 26 86 43 9 38 5.3 3-M6 2032 20 19 32 100 50 13 38 5.3 4-M6 SPBD32(-S) KGTBDD32 HW50L 2526 25 23 26 86 43 4 42 5.3 4-M6 SPBD26(-S) 2532 25 23 32 110 50 8 42 5.3 4-M6 SPBD32(-S) 3232 32 30 32 110 54 5 48 5.3 4-M6 KGTBDD32 3 Applicable inserts C41 Stock item SPB/SPB-S (Blades) SP Fig. 1 T (mm) Designation Stock H W L h Inserts Wrench Fig. SPB 226 26 1.6 110 21 SP200, 200R/L 326 26 2.4 110 21 SP300, 300R/L 426 26 3.2 110 21 SP400, 400R/L 526 26 4.0 110 21 SP500, 500R/L 626 26 5.2 110 21 SP600, 600R/L SW50L 232 32 1.6 150 25 SP200, 200R/L 1 332 32 2.4 150 25 SP300, 300R/L 432 32 3.2 150 25 SP400, 400R/L 532 32 4.0 150 25 SP500, 500R/L 632 32 5.2 150 25 SP600, 600R/L SPB 226-S 26 1.6 110 21 SP200, 200R/L 326-S 26 2.4 110 21 SP300, 300R/L 426-S 26 3.2 110 21 SP400, 400R/L 526-S 26 4.0 110 21 SP500, 500R/L 626-S 26 5.2 110 21 SP600, 600R/L SW15S 2 232-S 32 1.6 150 25 SP200, 200R/L 332-S 32 2.4 150 25 SP300, 300R/L 432-S 32 3.2 150 25 SP400, 400R/L 532-S 32 4.0 150 25 SP500, 500R/L 632-S 32 5.2 150 25 SP600, 600R/L 3 Applicable inserts C41 Stock item um Multi functional Tools 42
