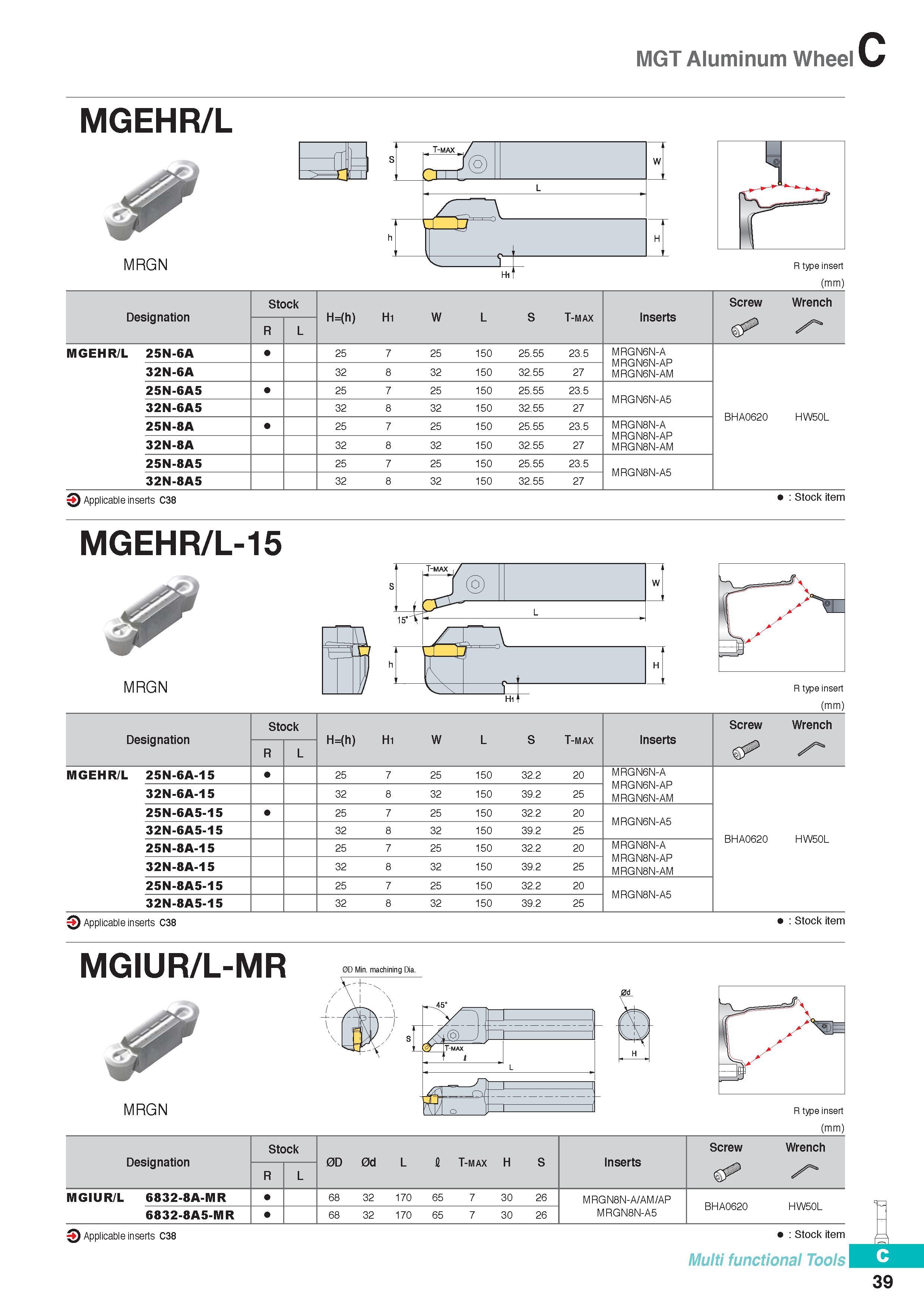

MGT Aluminum Wheel MGEHR/L MRGN (mm) Designation Stock H=(h) Hi W L S T-max Inserts Screw Wrench R L A MGEHR/L 25N-6A 25 7 25 150 25.55 23.5 MRGN6N-A MRGN6N-AP MRGN6N-AM 32N-6A 32 8 32 150 32.55 27 25N-6A5 25 7 25 150 25.55 23.5 MRGN6N-A5 32N-6A5 32 8 32 150 32.55 27 BHA0620 HW50L 25N-8A 25 7 25 150 25.55 23.5 MRGN8N-A MRGN8N-AP MRGN8N-AM 32N-8A 32 8 32 150 32.55 27 25N-8A5 25 7 25 150 25.55 23.5 MRGN8N-A5 32N-8A5 32 8 32 150 32.55 27 3 Applicable inserts C38 Stock item MGEHR/L-15 Designation Stock H=(h) Hi W L S T-max Inserts Screw Wrench R L MGEHR/L 25N-6A-15 25 7 25 150 32.2 20 MRGN6N-A MRGN6N-AP MRGN6N-AM 32N-6A-15 32 8 32 150 39.2 25 25N-6A5-15 25 7 25 150 32.2 20 MRGN6N-A5 32N-6A5-15 32 8 32 150 39.2 25 BHA0620 HW50L 25N-8A-15 25 7 25 150 32.2 20 MRGN8N-A MRGN8N-AP MRGN8N-AM 32N-8A-15 32 8 32 150 39.2 25 25N-8A5-15 25 7 25 150 32.2 20 MRGN8N-A5 32N-8A5-15 32 8 32 150 39.2 25 3 Applicable inserts C38 Stock item MGIUR/L-MR 0D Min. machining Dia. MRGN 3 Applicable inserts C38 (mm) Designation Stock 0D 0d L 1 T-max H S Inserts Screw Wrench R L A" MGIUR/L 6832-8A-MR 68 32 170 65 7 30 26 MRGN8N-A/AM/AP BHA0620 HW50L 6832-8A5-MR 68 32 170 65 7 30 26 MRGN8N-A5 Stock item Multi functional Tools 39
