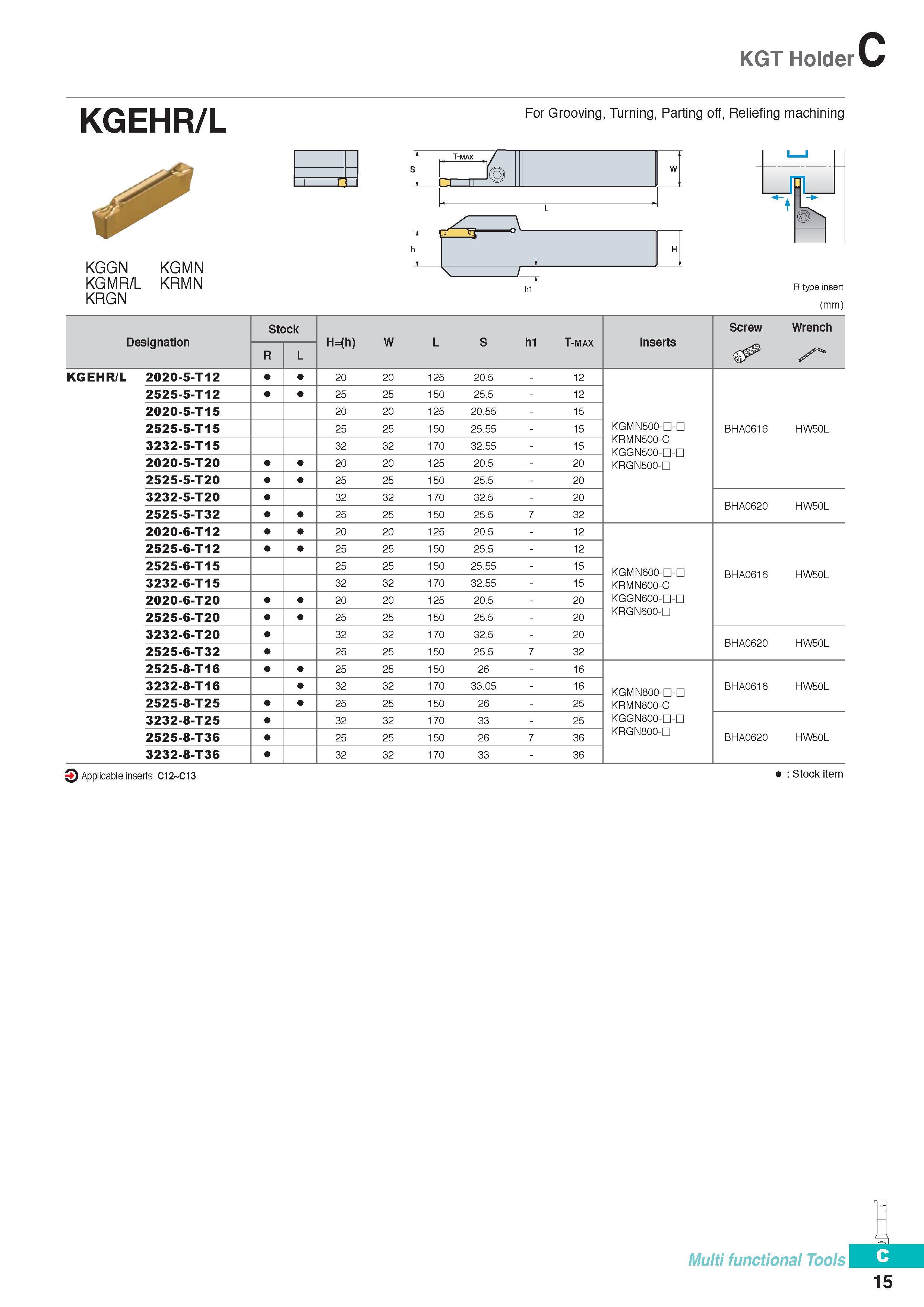

KGT Holder KGEHR/L KGGN KGMN KGMR/L KRMN KRGN For Grooving, Turning, Parting off, Reliefing machining 1 1 H R type insert (mm) Designation Stock H=(h) W L S h1 T-max Inserts Screw Wrench R L s KGEHR/L 2020-5-T12 20 20 125 20.5 12 2525-5-T12 25 25 150 25.5 12 2020-5-T15 20 20 125 20.55 15 2525-5-T15 25 25 150 25.55 15 KGMN500-G-G KRMN500-C KGGN500-G-G KRGN500-G BHA0616 HW50L 3232-5-T15 32 32 170 32.55 15 2020-5-T20 20 20 125 20.5 20 2525-5-T20 25 25 150 25.5 20 3232-5-T20 32 32 170 32.5 20 BHA0620 HW50L 2525-5-T32 25 25 150 25.5 7 32 2020-6-T12 20 20 125 20.5 12 2525-6-T12 25 25 150 25.5 12 2525-6-T15 25 25 150 25.55 15 KGMN600-G-G KRMN600-C BHA0616 HW50L 3232-6-T15 32 32 170 32.55 15 2020-6-T20 20 20 125 20.5 20 KGGN600-G-G 2525-6-T20 25 25 150 25.5 20 KRGN600-G 3232-6-T20 32 32 170 32.5 20 BHA0620 HW50L 2525-6-T32 25 25 150 25.5 7 32 2525-8-T16 25 25 150 26 16 3232-8-T16 32 32 170 33.05 16 KGMN800-G-G KRMN800-C BHA0616 HW50L 2525-8-T25 25 25 150 26 25 3232-8-T25 32 32 170 33 25 KGGN800-G-G 2525-8-T36 25 25 150 26 7 36 KRGN800-G BHA0620 HW50L 3232-8-T36 32 32 170 33 36 3 Applicable inserts C12 C13 Stock item hi Multi functional Tools 15
