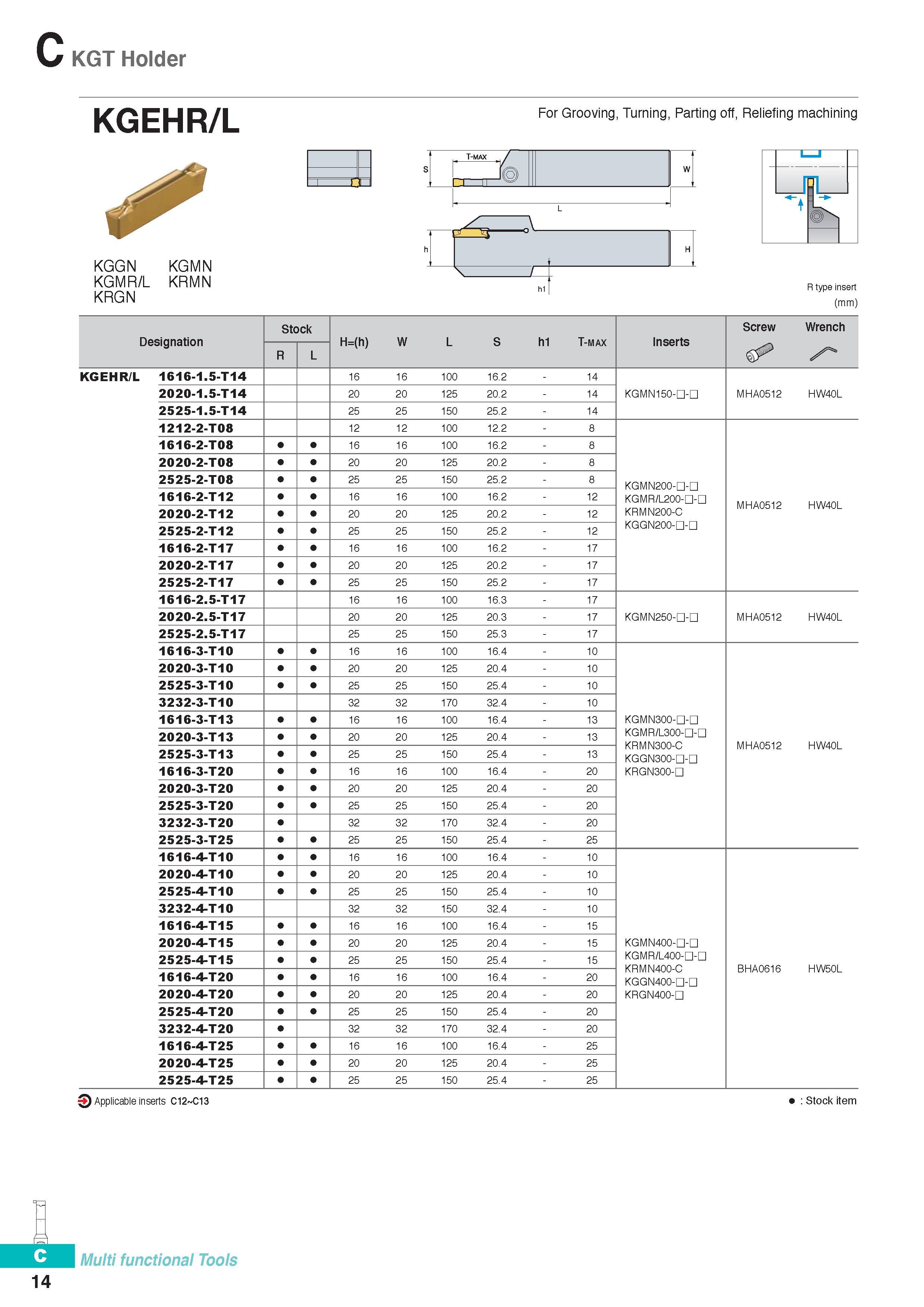

KGT Holder 14 KGEHR/L KGGN KGMN KGMR/L KRMN KRGN For Grooving, Turning, Parting off, Reliefing machining t-max r iOii: 1 pr 0 H \ / R type insert (mm) Designation Stock H=(h) W L S h1 T-max Inserts Screw Wrench R L A" KGEHR/L 1616-1.5-T14 16 16 100 16.2 - 14 2020-1.5-T14 20 20 125 20.2 - 14 KGMN150-D-D MHA0512 HW40L 2525-1.5-T14 25 25 150 25.2 - 14 1212-2-T08 12 12 100 12.2 - 8 1616-2-T08 16 16 100 16.2 - 8 2020-2-T08 20 20 125 20.2 - 8 2525-2-T08 25 25 150 25.2 - 8 KGMN200-D-D KGMR/L200-D-D 1616-2-T12 16 16 100 16.2 - 12 MHA0512 HW40L 2020-2-T12 20 20 125 20.2 - 12 KRMN200-C 2525-2-T12 25 25 150 25.2 - 12 KGGN200-EI-Q 1616-2-T17 16 16 100 16.2 - 17 2020-2-T17 20 20 125 20.2 - 17 2525-2-T17 25 25 150 25.2 - 17 1616-2.5-T17 16 16 100 16.3 - 17 2020-2.5-T17 20 20 125 20.3 - 17 KGMN250-D-D MHA0512 HW40L 2525-2.5-T17 25 25 150 25.3 - 17 1616-3-T10 16 16 100 16.4 - 10 2020-3-T10 20 20 125 20.4 - 10 2525-3-T10 25 25 150 25.4 - 10 3232-3-T10 32 32 170 32.4 - 10 1616-3-T13 16 16 100 16.4 - 13 KGMN300-D-D 2020-3-T13 20 20 125 20.4 - 13 KGMR/L300-D-D KRMN300-C KGGN300-D-D MHA0512 HW40L 2525-3-T13 25 25 150 25.4 - 13 1616-3-T20 16 16 100 16.4 - 20 KRGN300-D 2020-3-T20 20 20 125 20.4 - 20 2525-3-T20 25 25 150 25.4 - 20 3232-3-T20 32 32 170 32.4 - 20 2525-3-T25 25 25 150 25.4 - 25 1616-4-T10 16 16 100 16.4 - 10 2020-4-T10 20 20 125 20.4 - 10 2525-4-T10 25 25 150 25.4 - 10 3232-4-T10 32 32 150 32.4 - 10 1616-4-T15 16 16 100 16.4 - 15 2020-4-T15 20 20 125 20.4 - 15 KGMN400-D-D 2525-4-T15 25 25 150 25.4 - 15 KGMR/L400-D-D KRMN400-C KGGN400-D-D BHA0616 HW50L 1616-4-T20 16 16 100 16.4 - 20 2020-4-T20 20 20 125 20.4 - 20 KRGN400-D 2525-4-T20 25 25 150 25.4 - 20 3232-4-T20 32 32 170 32.4 - 20 1616-4-T25 16 16 100 16.4 - 25 2020-4-T25 20 20 125 20.4 - 25 2525-4-T25 25 25 150 25.4 - 25 3 Applicable inserts C12 C13 Stock item hi Multi functional Tools
