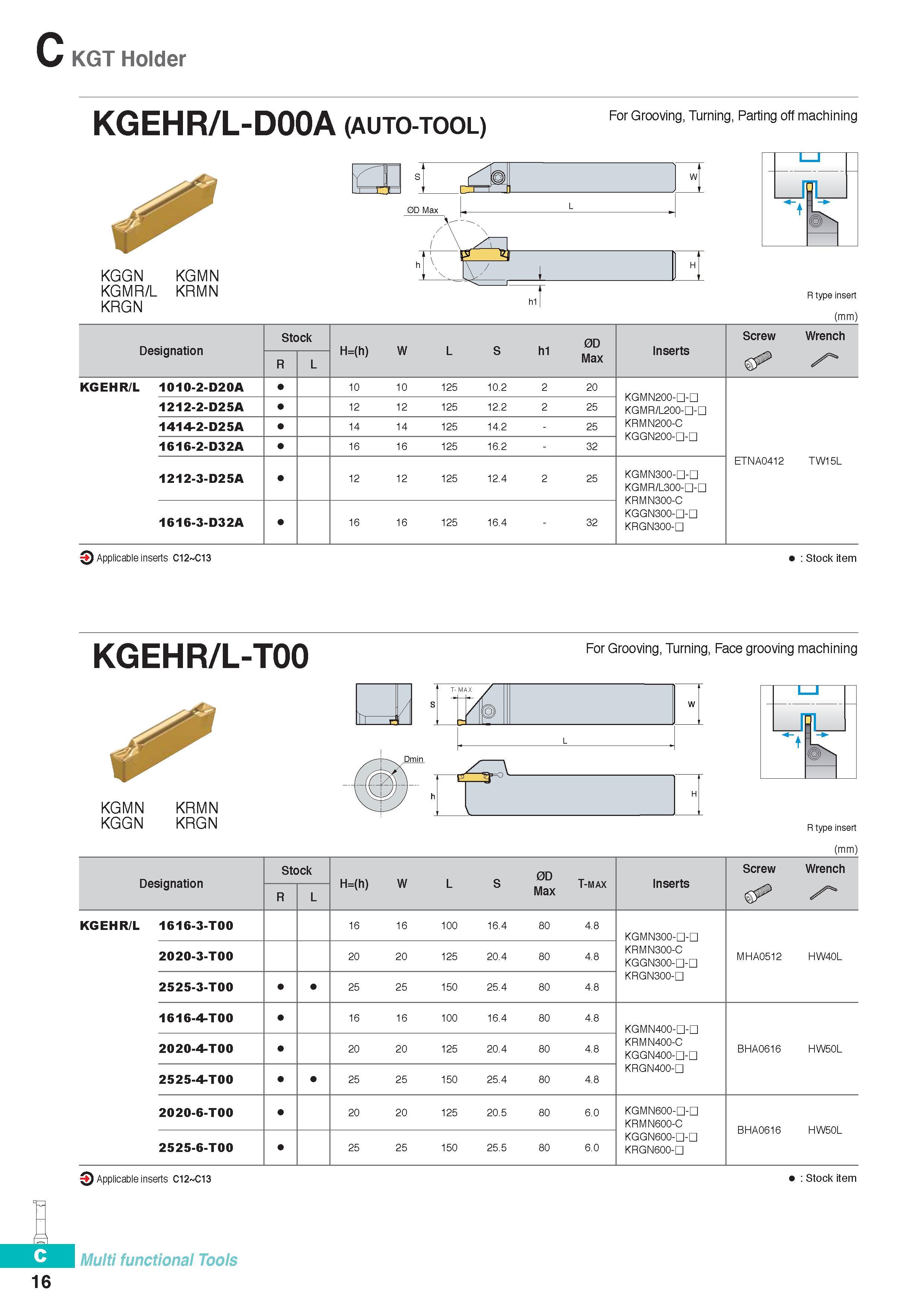

KGT Holder 16 KGEHR/L-D00A (auto-tool) For Grooving, Turning, Parting off machining KGGN KGMN KGMR/L KRMN KRGN R type insert (mm) Designation Stock 0D H=(h) W L S hi ,0D 1 Max Inserts Screw Wrench R L KGEHR/L 1010-2-D20A 10 10 125 10.2 2 20 KGMN200- - KGMR/L200- - KRMN200-C KGGN200- - ETNA0412 TW15L 1212-2-D25A 12 12 125 12.2 2 25 1414-2-D25A 14 14 125 14.2 - 25 1616-2-D32A 16 16 125 16.2 - 32 1212-3-D25A 12 12 125 12.4 2 25 KGMN300- - KGMR/L300- - KRMN300-C KGGN300- - KRGN300- 1616-3-D32A 16 16 125 16.4 - 32 3 Applicable inserts C12 C13 Stock item For Grooving, Turning, Face grooving machining KGEHR/L-T00 R type insert (mm) Designation Stock H=(h) W L S 0D T-max Inserts Screw Wrench R L Max s KGEHR/L 1616-3-T00 16 16 100 16.4 80 4.8 KGMN300- - 2020-3-T00 20 20 125 20.4 80 4.8 KRMN300-C KGGN300- - MHA0512 HW40L 2525-3-T00 25 25 150 25.4 80 4.8 KRGN300- 1616-4-T00 16 16 100 16.4 80 4.8 KGMN400- - 2020-4-T00 20 20 125 20.4 80 4.8 KRMN400-C KGGN400- - BHA0616 HW50L 2525-4-T00 25 25 150 25.4 80 4.8 KRGN400- 2020-6-T00 20 20 125 20.5 80 6.0 KGMN600- - KRMN600-C BHA0616 HW50L 2525-6-T00 25 25 150 25.5 80 6.0 KGGN600- - KRGN600- 3 Applicable inserts C12 C13 Stock item Multi functional Tools
