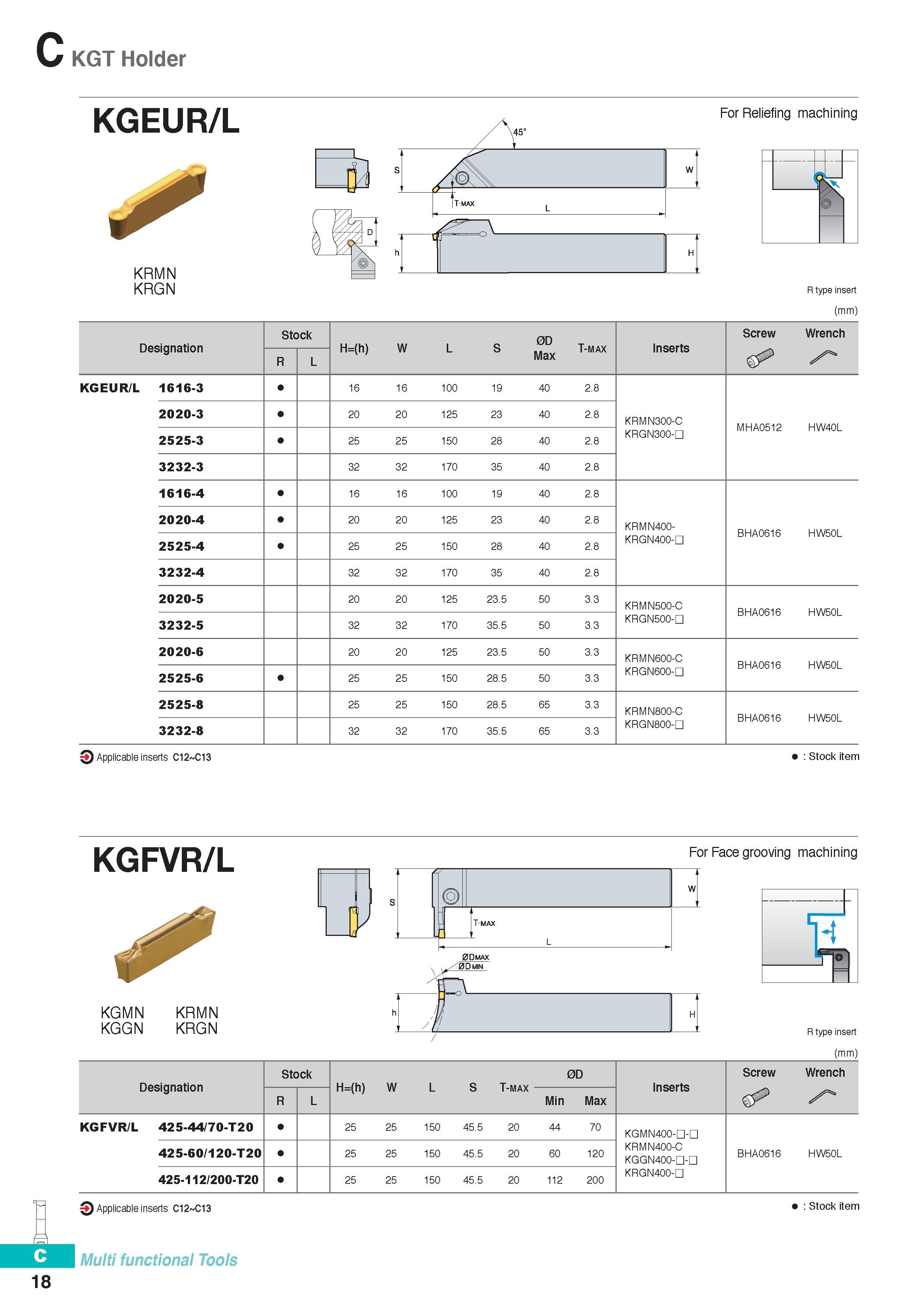

KGT Holder 18 KGEUR/L KRMN KRGN For Reliefing machining R type insert (mm) Designation Stock 0D H=(h) W L S ,0D T-max 1 Max Inserts Screw Wrench <3 R L KGEUR/L 1616-3 16 16 100 19 40 2.8 KRMN300-C KRGN300-G MHA0512 HW40L 2020-3 20 20 125 23 40 2.8 2525-3 25 25 150 28 40 2.8 3232-3 32 32 170 35 40 2.8 1616-4 16 16 100 19 40 2.8 KRMN400- KRGN400-G BHA0616 HW50L 2020-4 20 20 125 23 40 2.8 2525-4 25 25 150 28 40 2.8 3232-4 32 32 170 35 40 2.8 2020-5 20 20 125 23.5 50 3.3 KRMN500-C KRGN500-G BHA0616 HW50L 3232-5 32 32 170 35.5 50 3.3 2020-6 20 20 125 23.5 50 3.3 KRMN600-C KRGN600-G BHA0616 HW50L 2525-6 25 25 150 28.5 50 3.3 2525-8 25 25 150 28.5 65 3.3 KRMN800-C KRGN800-G BHA0616 HW50L 3232-8 32 32 170 35.5 65 3.3 o Applicable inserts C12 C13 Stock item KGFVR/L KGMN KRMN KGGN KRGN For Face grooving machining 0DMAX 0Dmin R type insert (mm) Designation Stock H=(h) W L S 0D Inserts Screw Wrench R L Min Max KGFVR/L 425-44/70-T20 25 25 150 45.5 20 44 70 KGMN400-G-G 425-60/120-T20 25 25 150 45.5 20 60 120 KRMN400-C KGGN400-G-G BHA0616 HW50L 425-112/200-T20 25 25 150 45.5 20 112 200 KRGN400-G O Applicable inserts C12 C13 Multi functional Tools Stock item
