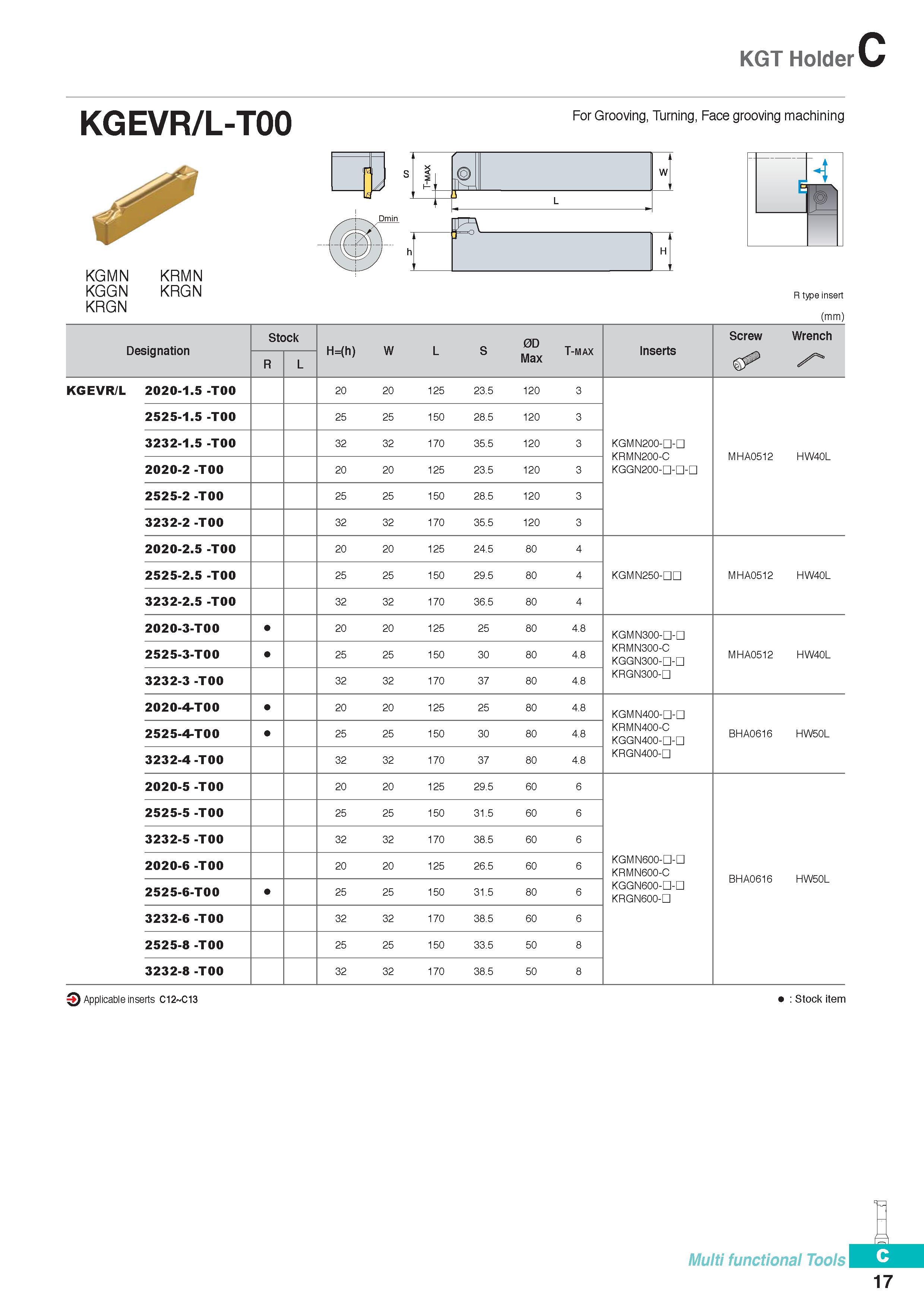

KGT Holder KGEVR/L-T00 For Grooving, Turning, Face grooving machining KGMN KRMN KGGN KRGN KRGN ll It W M-1 \ L ,1 J H ni R type insert (mm) Stock 0D Screw Wrench Designation H=(h) W L S T-max Inserts R L Max y KGEVR/L 2020-1.5 -T00 20 20 125 23.5 120 3 2525-1.5 -T00 25 25 150 28.5 120 3 3232-1.5 -T00 32 32 170 35.5 120 3 KGMN200-D-D KRMN200-C MHA0512 HW40L 2020-2 -T00 20 20 125 23.5 120 3 KGGN200-D-D-D 2525-2 -T00 25 25 150 28.5 120 3 3232-2 -T00 32 32 170 35.5 120 3 2020-2.5 -T00 20 20 125 24.5 80 4 2525-2.5 -T00 25 25 150 29.5 80 4 KGMN250-LID MHA0512 HW40L 3232-2.5 -T00 32 32 170 36.5 80 4 2020-3-T00 20 20 125 25 80 4.8 KGMN300-D-D 2525-3-T00 25 25 150 30 80 4.8 KRMN300-C KGGN300-D-D MHA0512 HW40L 3232-3 -T00 32 32 170 37 80 4.8 KRGN300-D 2020-4-T00 20 20 125 25 80 4.8 KGMN400-D-D 2525-4-T00 25 25 150 30 80 4.8 KRMN400-C KGGN400-D-D BHA0616 HW50L 3232-4 -T00 32 32 170 37 80 4.8 KRGN400-D 2020-5 -T00 20 20 125 29.5 60 6 2525-5 -T00 25 25 150 31.5 60 6 3232-5 -T00 32 32 170 38.5 60 6 2020-6 -T00 20 20 125 26.5 60 6 KGMN600-D-D KRMN600-C BHA0616 HW50L 2525-6-T00 25 25 150 31.5 80 6 KGGN600-D-D KRGN600-D 3232-6 -T00 32 32 170 38.5 60 6 2525-8 -T00 25 25 150 33.5 50 8 3232-8 -T00 32 32 170 38.5 50 8 3 Applicable inserts C12 C13 Stock item Multi functional Tools 17
