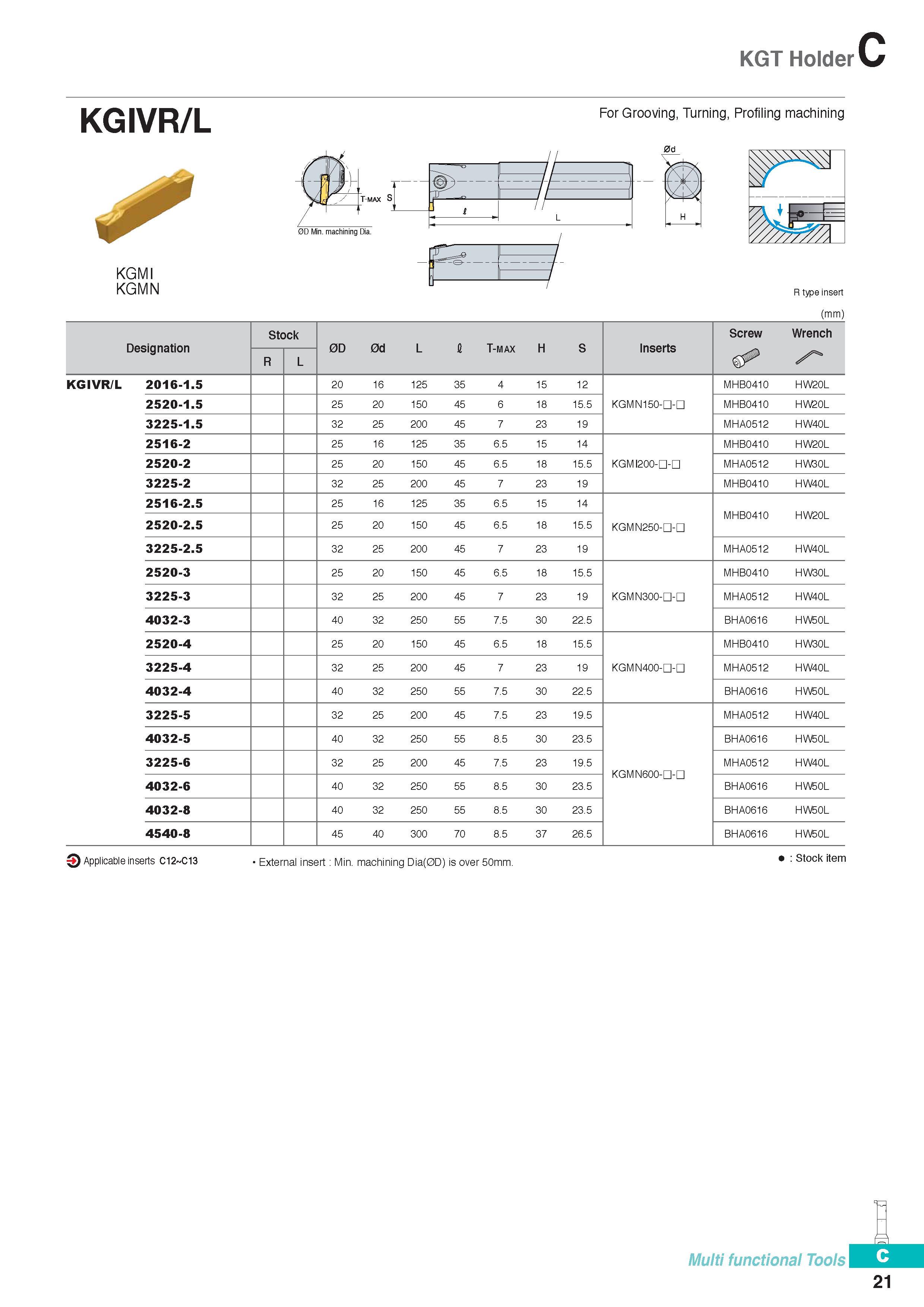

KGT Holder KGIVR/L For Grooving, Turning, Profiling machining KGMI KGMN R type insert (mm) Designation Stock 0D 0d L I T-max H S Inserts Screw Wrench R L y KGIVR/L 2016-1.5 20 16 125 35 4 15 12 MHB0410 HW20L 2520-1.5 25 20 150 45 6 18 15.5 KGMN150-D-D MHB0410 HW20L 3225-1.5 32 25 200 45 7 23 19 MHA0512 HW40L 2516-2 25 16 125 35 6.5 15 14 MHB0410 HW20L 2520-2 25 20 150 45 6.5 18 15.5 KGMI200-D-D MHA0512 HW30L 3225-2 32 25 200 45 7 23 19 MHB0410 HW40L 2516-2.5 25 16 125 35 6.5 15 14 MHB0410 HW20L 2520-2.5 25 20 150 45 6.5 18 15.5 KGMN250-D-D 3225-2.5 32 25 200 45 7 23 19 MHA0512 HW40L 2520-3 25 20 150 45 6.5 18 15.5 MHB0410 HW30L 3225-3 32 25 200 45 7 23 19 KGMN300-D-D MHA0512 HW40L 4032-3 40 32 250 55 7.5 30 22.5 BHA0616 HW50L 2520-4 25 20 150 45 6.5 18 15.5 MHB0410 HW30L 3225-4 32 25 200 45 7 23 19 KGMN400-D-D MHA0512 HW40L 4032-4 40 32 250 55 7.5 30 22.5 BHA0616 HW50L 3225-5 32 25 200 45 7.5 23 19.5 MHA0512 HW40L 4032-5 40 32 250 55 8.5 30 23.5 BHA0616 HW50L 3225-6 32 25 200 45 7.5 23 19.5 KGMN600-D-D MHA0512 HW40L 4032-6 40 32 250 55 8.5 30 23.5 BHA0616 HW50L 4032-8 40 32 250 55 8.5 30 23.5 BHA0616 HW50L 4540-8 45 40 300 70 8.5 37 26.5 BHA0616 HW50L 3 Applicable inserts C12 C13 External insert: Min. machining Dia(0D) is over 50mm. Stock item Multi functional Tools rim 21
