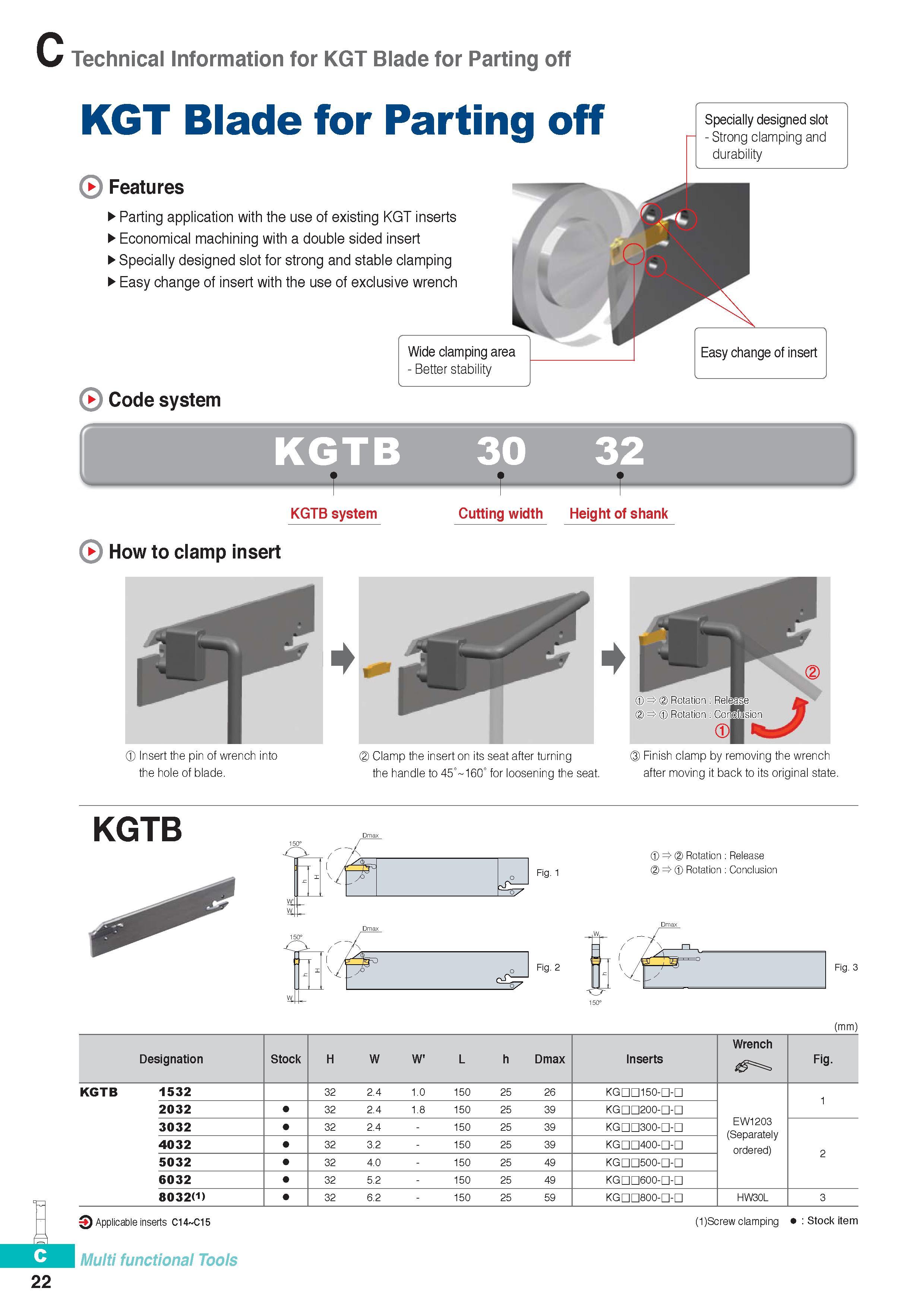

KGT Blade Korloy for Parting off Features Parting application with the use of existing KGT inserts Economical machining with a double sided insert Specially designed slot for strong and stable clamping Easy change of insert with the use of exclusive wrench Wide clamping area - Better stability Code system KG T B 30 32 KGTB system Cutting width Height of shank How to clamp insert Insert the pin of wrench into Clamp the insert on its seat after turning Finish clamp by removing the wrench the hole of blade. the handle to 45° 160° for loosening the seat. after moving it back to its original state. KGTB Fig. 1 Rotation Release Rotation Conclusion Fig. 2 Fig. 3 (mm) Designation Stock H W W’ L h Dmax Inserts Wrench Fig. KGTB 1532 32 2.4 1.0 150 25 26 KGDD150-D-D 2032 32 2.4 1.8 150 25 39 KGDD200-D-D EW1203 (Separately ordered) 1 3032 32 2.4 150 25 39 KGDD300-D-D 4032 32 3.2 150 25 39 KGDD400-D-D 2 5032 32 4.0 150 25 49 KGDD500-D-D 6032 32 5.2 150 25 49 KGDD600-D-D 8032(1) 32 6.2 150 25 59 KGDD800-D-D HW30L 3 Ch 3 Applicable inserts C14 C15 (1)Screw clamping Stock item Multi functional Tools 22 Technical Information for KGT Blade for Parting off
